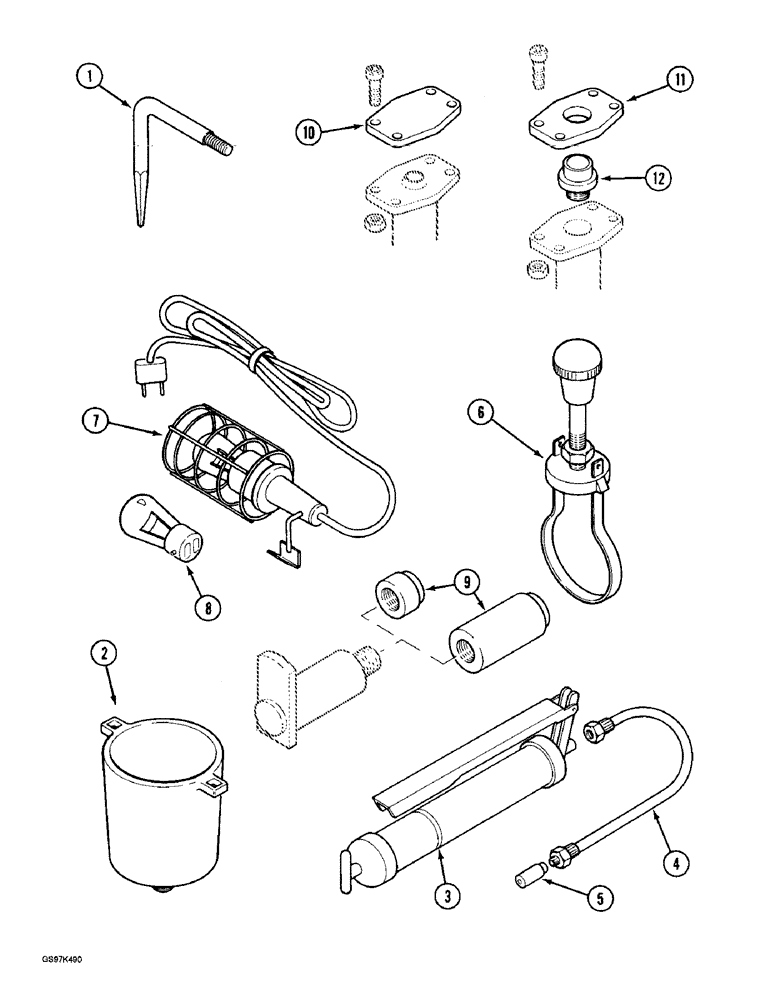

Запчасти Case 170C (9-110) - TOOLS, STANDARD TOOL KIT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
P52025
PLATE,SMALL SQUARE
HANDLE - square-end, hydraulic reservoir suction screen filter shutoff
1шт.
2
P840279
FUNNEL
- hydraulic reservoir oil, optional tools
1шт.
P44433
PUMP
ASSEMBLY - grease, optional tools, Includes: Ref. 3-5
1шт.
3
NSS
NOT SOLD SEPARAT
PUMP - grease, order pump assembly P44433, optional tools
1шт.
4
P31983
HOSE
- grease pump, optional tools
1шт.
5
P144420
CLASP
CAP - grease pump hose, optional tools
1шт.
6
P2644482
KEY
WRENCH - filter, strap type, optional tools
1шт.
7
P244462
LAMP
- inspection, optional tools
1шт.
8
P40585
LAMP
BULB - 24 volt, inspection lamp, optional tools
1шт.
9
P344410
TRANSMISSION SLEEVE
SLEEVE - threaded, arm to boom pin, 90 mm (3.54 inch) diameter, optional tools
1шт.
9
P929941
CONE
SLEEVE - threaded, boom to turntable pin, 100 mm (3.94 inch) diameter, optional tools
1шт.
10
P1937744
BLANK-OFF PLUG
PLATE - cover, hydraulic tube, 17 mm (0.67 inch) diameter., optional tools
1шт.
10
P1337777
BLANK-OFF PLUG
PLATE - cover, hydraulic tube, 21 mm (0.83 inch) diameter., optional tools
1шт.
10
P1337778
BLANK-OFF PLUG
PLATE - cover, hydraulic tube, 27 mm (1.06 inch) diameter., optional tools
1шт.
10
P1937727
BLANK-OFF PLUG
PLATE - cover, hydraulic tube, 34 mm (1.34 inch) diameter., optional tools
1шт.
10
P1337779
BLANK-OFF PLUG
PLATE - cover, hydraulic tube, 42 mm (1.65 inch) diameter., optional tools
1шт.
11
P1224246
SHIN
PLATE - cover, hydraulic tube plug, 17 mm (0.67 inch) diameter., optional tools
1шт.
11
P724184
SHIN
PLATE - cover, hydraulic tube plug, 21 mm (0.83 inch) diameter., optional tools
1шт.
11
P724185
SHIN
PLATE - cover, hydraulic tube plug, 27 mm (1.06 inch) diameter., optional tools
1шт.
11
P1324196
SHIN
PLATE - cover, hydraulic tube plug, 34 mm (1.34 inch) diameter., optional tools
1шт.
11
P724186
SHIN
PLATE - cover, hydraulic tube plug, 42 mm (1.65 inch) diameter., optional tools
1шт.
12
P1627863
BLANK-OFF PLUG
PLUG - hydraulic tube, 17 mm (0.67 inch) diameter., optional tools
1шт.
12
P1627864
BLANK-OFF PLUG
PLUG - hydraulic tube, 21 mm (0.83 inch) diameter., optional tools
1шт.
12
P1627865
BLANK-OFF PLUG
PLUG - hydraulic tube, 27 mm (1.06 inch) diameter., optional tools
1шт.
12
P537716
BLANK-OFF PLUG
PLUG - hydraulic tube, 34 mm (1.34 inch) diameter., optional tools
1шт.
12
P1627866
BLANK-OFF PLUG
PLUG - hydraulic tube, 42 mm (1.65 inch) diameter., optional tools
1шт.
P1244245
BOX
KIT - seal, tapered face
1шт.
P1630469
SET OF GASKET
KIT - seal, metric O-ring
1шт.
Выбрано товаров: 28
