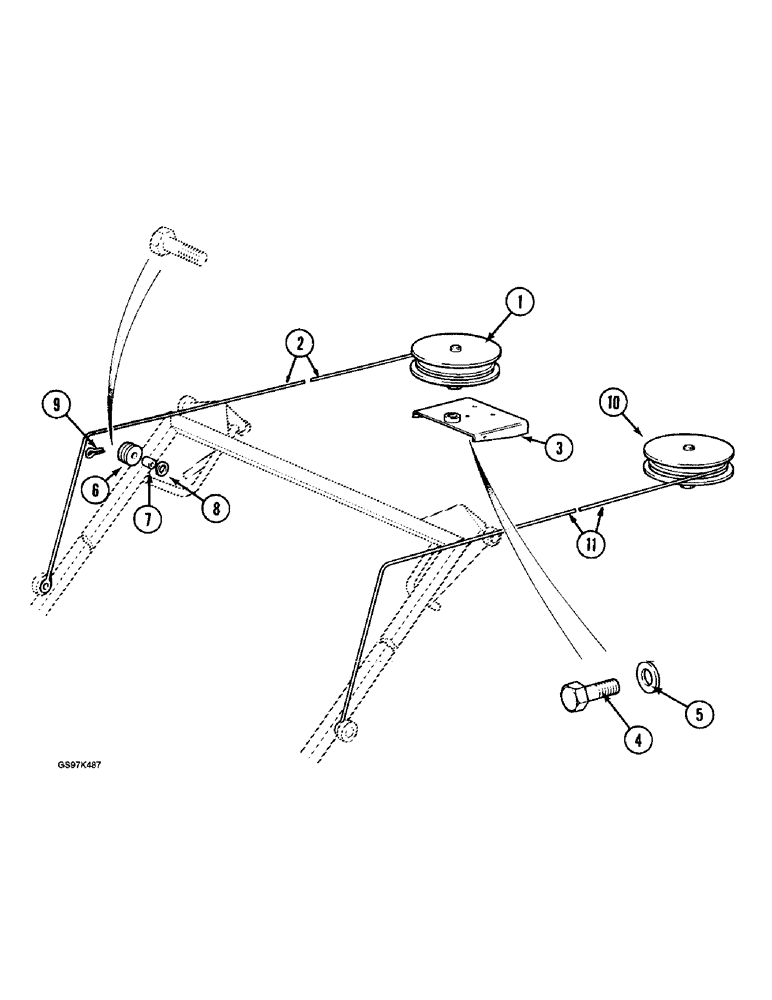

Запчасти Case 170C (9-104) - WINDSHIELD OPENING PARTS (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-74 and 9-76, Includes: Ref. 1-11

1шт.

1

P5242727

CABLE WINDER

CABLE AND SPOOL ASSEMBLY - windshield opening, right-hand, Includes: Ref. 2

1шт.

2

P9847252

CABLE

- windshield opening

1шт.

3

P4127158

SUPPORT

BRACKET - mounting, cable and spring

2шт.

4

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

4шт.

5

P3528794

WASHER

SPACER - bracket bolt, 6 mm thick

4шт.

6

P538589

PULLEY

- windshield cable

2шт.

7

P29299

SELF LUB RING

BUSHING - cable pulley

2шт.

8

P34611

WASHER

- flat, 10 mm, cable pulley

2шт.

9

P35512

SPLIT PIN

PIN - cotter, 2 mm x 30 mm, cable pulley

2шт.

10

P5242728

CABLE WINDER

CABLE AND SPOOL ASSEMBLY - windshield opening, left-hand, Includes: Ref. 11

1шт.

11

P9847252

CABLE

- windshield opening

1шт.
