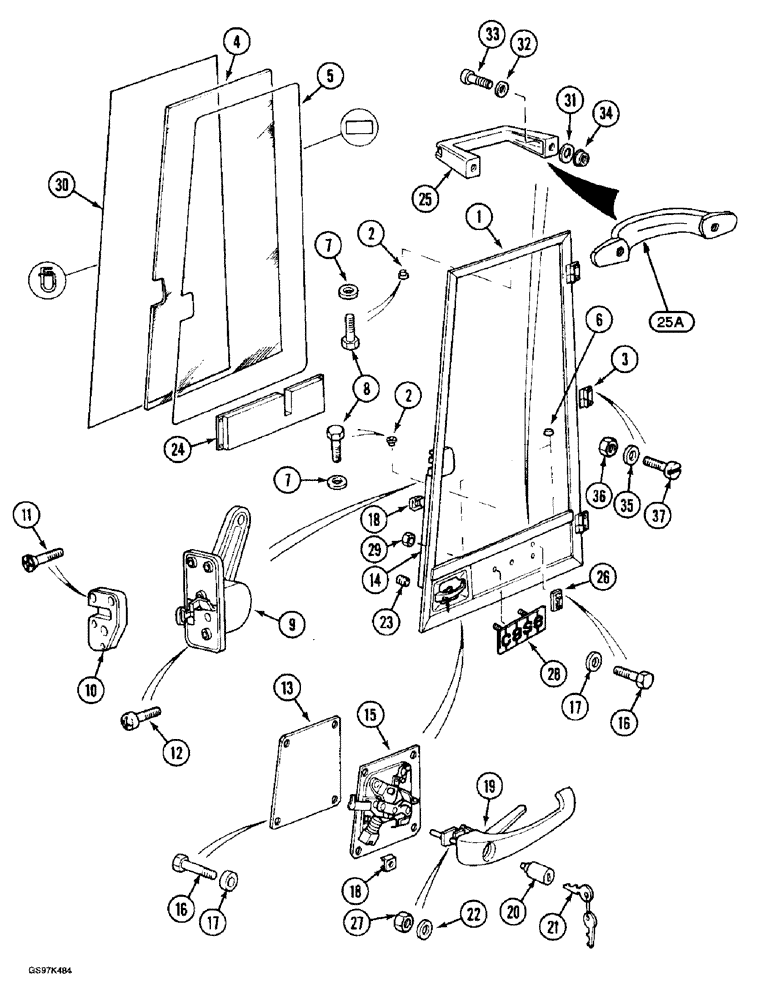

Запчасти Case 170C (9-098) - CAB DOOR, P.I.N. 02321 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-82 and 9-84, Includes: P81043810 and 1-37

1шт.

P8043810

DOOR

ASSEMBLY - cab, Includes: Ref.1-34

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab door, order door assembly P8043810

1шт.

2

P834513

NUT

RETAINER - bolt, sleeve type

2шт.

3

P736667

HINGE

ASSEMBLY -, Serial Range: door-cab

3шт.

P3337440

PLUG

- plastic, grease

2шт.

4

P1347056

GLASS

- cab door

1шт.

5

P203104

PACKAGE, REPAIR

SEAL - glass

1шт.

6

P741441

SPACER

PLUG - door frame

2шт.

7

P4328728

WASHER

SPACER - bolt, 12 mm thick

2шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

2шт.

9

P852067

MECHANISM

LATCH - door, inside

1шт.

10

P852053

CATCH PLATE

PLATE - striker

1шт.

11

P32411

SCREW,Cross, M8 x 45, 10.9

Gradstriker plate Cross, M8 x 45, 10.9

3шт.

12

P32570

SCREW

- slotted head, 8 mm x 35 mm, door latch

1шт.

13

P1325374

DOOR COVER

PLATE - lock cover

1шт.

14

P2130617

THREADED ROD

ROD - inside latch to outside handle

1шт.

15

P852055

MECHANISM

PLATE - door lock

1шт.

16

P1133803

SCREW

BOLT - hex, 6 mm x 22 mm, lock, Serial Range: plate-door

6шт.

17

P3528799

WASHER

SPACER - bolt, 6 mm

6шт.

18

P1634573

NUT

- clip type, plate bolt

6шт.

P1352034

HANDLE

ASSEMBLY - cab, outside, Includes: Ref. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

HANDLE - cab, outside, order handle assembly P1352034

1шт.

20

P1352045

LOCK, CYLINDER

CYLINDER ASSEMBLY - door lock, Includes: Ref. 21

1шт.

21

P1352009

KEY

- door lock

1шт.

22

P35001

WASHER

- flat, 6 mm

2шт.

23

P1037442

BLANK-OFF PLUG

STOP - door

1шт.

24

P522483

LARGE PLATE

INSULATION - lower door

1шт.

25

P1352047

HANDLE

- door, P.I.N. 02340 and after, no longer available, order handle 3234209R1, item 25A

1шт.

25a

3234209R1

HANDLE

- door

1шт.

26

P7128246

CATCH PLATE

STRIKER - door open latch

1шт.

27

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

2шт.

28

321-4739

EMBLEM

PLATE - CASE identification (Replaces plate P1651599)

1шт.

29

P2434587

NUT

- hex, 1/4 inch

2шт.

30

P7146043

DOOR SEAL

SEAL - door to cab, not included with cab door assembly, order separately

1шт.

31

P35004

WASHER

- flat, 12 mm

2шт.

32

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

33

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

(Replaces bolt P32911) Hex Soc Hd, M6 x 20, 8.8

2шт.

34

P834513

NUT

RETAINER - sleeve type (Replaces retainer P35425)

2шт.

35

P34611

WASHER

- flat, 10 mm, not included with cab door assembly

6шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

37

P32415

SCREW

- slotted head, 10 mm x 35 mm, grade 10.9, door hinge

6шт.
