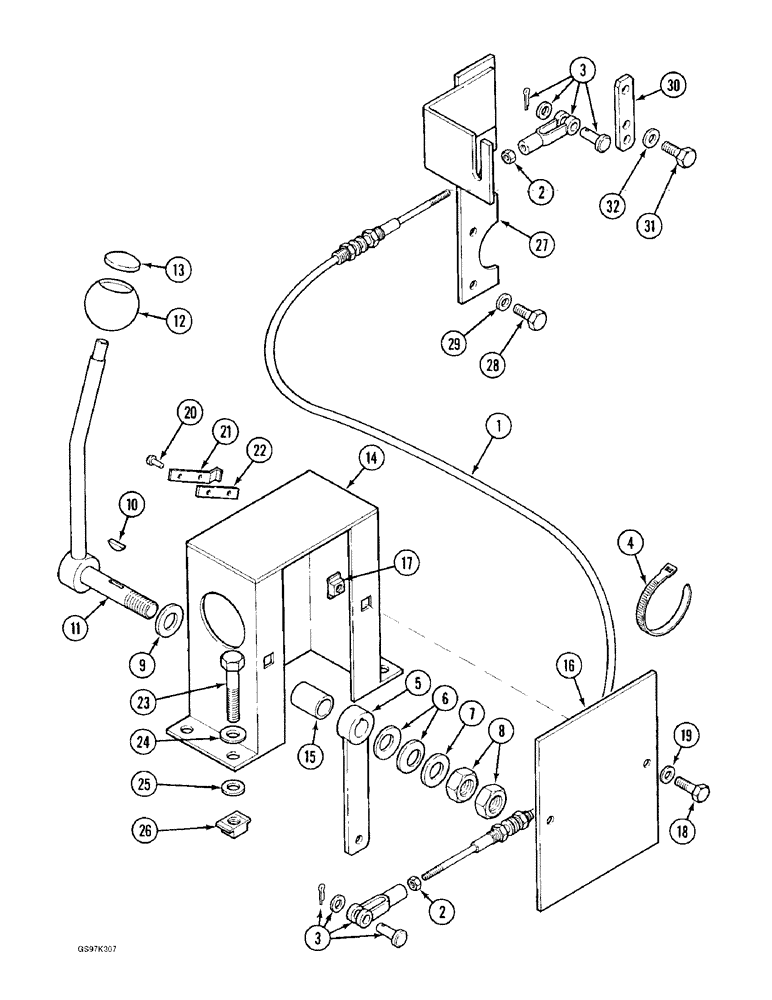

Запчасти Case 170C (3-8) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
P4831332
CABLE
- throttle control
1шт.
2
825-1406
NUT,M6, Cl 8
2шт.
3
P2146214
CLEVIS
YOKE - cable end, includes clevis pin, flat washer and cotter pin
2шт.
4
P51946
CLAMP
STRAP - tie, cable
1шт.
5
P4042787
CRANK LEVER
LEVER - throttle cable
1шт.
6
P34906
RUBBER WASHER
WASHER - spring
2шт.
7
P35005
WASHER
- special, throttle handle shaft
1шт.
8
P34546
NUT
- hex, 14 mm
2шт.
9
P1245218
WASHER
- special, throttle handle shaft
1шт.
10
P1236106
BUCKET TOOTH KEY
KEY - shaft
1шт.
11
P4042788
CONTROL LEVER
LEVER - throttle control
1шт.
12
P152055
BALL KNOB
KNOB - lever
1шт.
13
P7147578
IDEOGRAM
PLATE - instruction, knob
1шт.
P5328216
SUPPORT
COVER ASSEMBLY - throttle control, Includes: Ref. 14, 15
1шт.
14
NSS
NOT SOLD SEPARAT
COVER - throttle control, order cover assembly P5328216
1шт.
15
P29298
SELF LUB RING
BUSHING - self-lubricating
1шт.
16
P3122805
LARGE PLATE
PLATE - throttle control cover
1шт.
17
P1634573
NUT
- cage type, 6 mm
1шт.
18
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8
2шт.
19
P3528799
WASHER
SPACER - bolt, 4 mm thick
2шт.
20
P35413
RIVET
- plate, lever detent
2шт.
21
P2426189
HOOD
PLATE - lever detent
2шт.
22
P1723282
PLATE
- spacer, lever detent
1шт.
23
P133865
SCREW
BOLT - hex, 8 mm x 60 mm
4шт.
24
P3528794
WASHER
SPACER - bolt, 6 mm thick
4шт.
25
P4328732
WASHER
SPACER - cover, 28 mm thick
4шт.
26
P1334571
NUT
- cage type, 8 mm
4шт.
27
P6528251
SUPPORT
BRACKET - mounting, throttle control
1шт.
28
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)
2шт.
29
P3528794
WASHER
SPACER - bolt, 6 mm thick
2шт.
30
P3122851
PLATE
LEVER - throttle control, at pump
1шт.
31
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
2шт.
32
P3528799
WASHER
SPACER - bolt, 4 mm thick
2шт.
Выбрано товаров: 33
