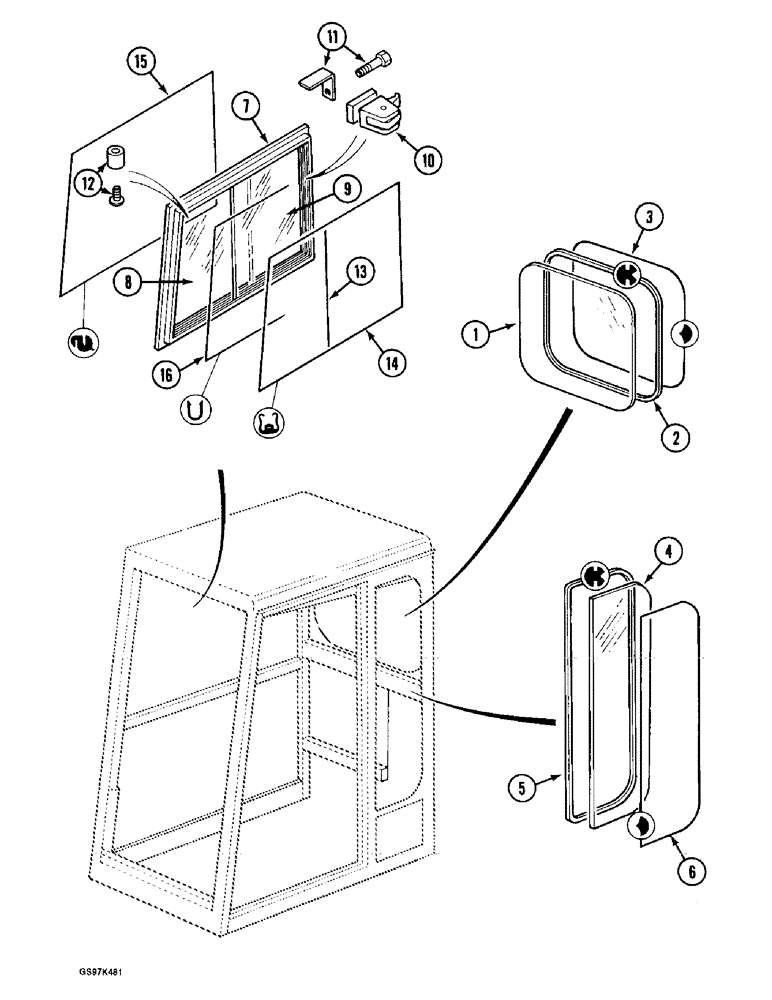

Запчасти Case 170C (9-092) - CAB, CAB GLASS, INSULATION AND SEALS, P.I.N. 02321 AND AFTER (09) - CHASSIS

P8443829

CAB

ASSEMBLY - excavator, continued from Figures 9-82 and 9-84, Inludes: Ref. 1-16

1шт.

1

P2047006

GLASS

- window, cab rear

1шт.

2

P8846016

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

3

REF

INSTRUCTION

SEAL - window glass, 3000 mm (118-1/8 inch) long, cut from bulk seal P1303170 below

1шт.

4

P1347048

GLASS

- window, cab side, left-hand

1шт.

5

P7146074

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

6

REF

INSTRUCTION

SEAL - window glass, 3099 mm (122 inch) long, cut from bulk seal P346008 below

1шт.

P2047008

WINDOW

ASSEMBLY - sliding, right-hand cab side

1шт.

7

NSS

NOT SOLD SEPARAT

WINDOW - sliding, cab, order window assembly P2047008

1шт.

8

P2047042

GLASS

- front window glass, right-hand

1шт.

9

P2047041

GLASS

- rear window glass, right-hand

1шт.

10

P1352046

LOCK

LATCH - glass, rear

1шт.

11

P8646260

SPARE PART SET

KIT - window repairing, angle and bolts

1шт.

12

P8646261

SPARE PART SET

KIT - window repairing, stop rubber

1шт.

13

REF

INSTRUCTION

SEAL - between sliding glass, 819 mm (32-1/4 inch) long, cut from bulk seal P1303187 below

1шт.

14

REF

INSTRUCTION

SEAL - glass, channel, 4200 mm (165-3/8 inch) long, cut from bulk seal P1303188 below

1шт.

15

REF

INSTRUCTION

SEAL - window to cab frame, 4200 mm (165-3/8 inch) long, cut from bulk seal P1303186 below

1шт.

16

REF

INSTRUCTION

SEAL - window, internal, 2235 mm (88 inch) long, cut from P9346038

1шт.

P1303170

SPECIAL RING

SEAL - bulk, sold by the meter

1шт.

P346008

SEAL

- bulk, sold by the meter

1шт.

P1303187

SEAL

- bulk, sold by the meter

1шт.

P1303188

SLIPPER

SEAL - bulk, sold by the meter

1шт.

P1303186

PROFILE

SEAL - bulk, sold by the meter

1шт.

P9346038

SEAL

- bulk, sold by the meter

1шт.
