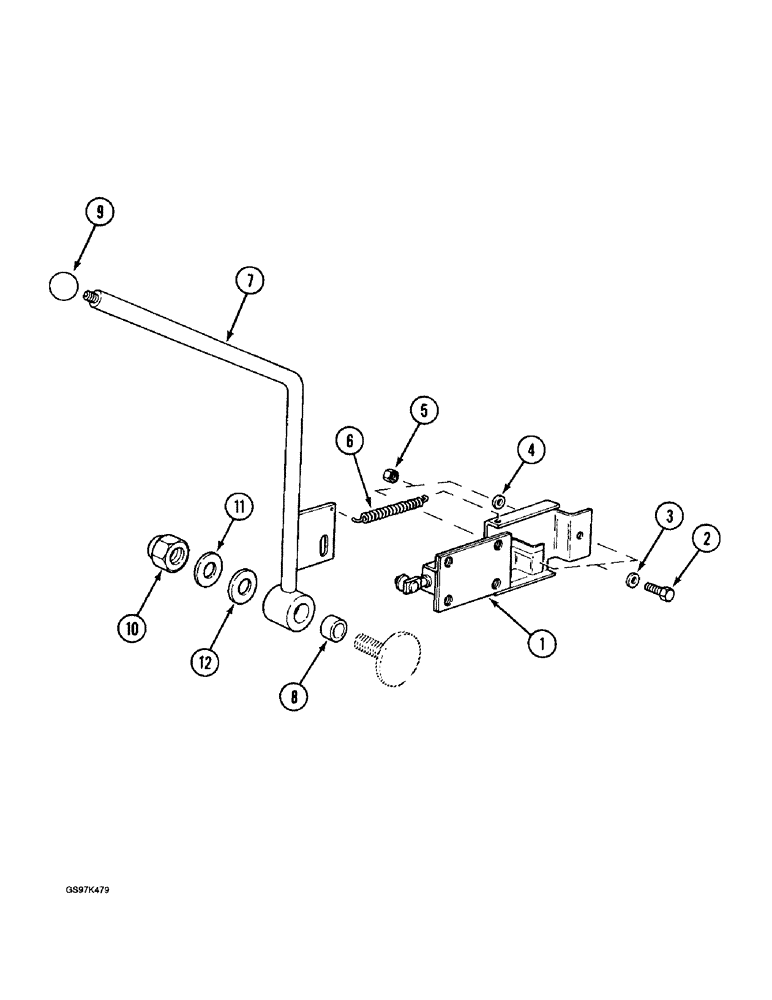

Запчасти Case 170C (9-088) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 02301 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-82 and 9-84, Includes: Ref. 1-12

1шт.

1

P852086

LOCK ASSY

LATCH - door open

1шт.

2

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Latch to door, Replaces bolt P32621 Hex, M6 x 16, 8.8

5шт.

3

P34607

WASHER

- flat, 6 mm

5шт.

4

P3528799

WASHER

SPACER - latch bolt, 4 mm thick

1шт.

5

825-1406

NUT,M6, Cl 8

(Replaces nut P34111) M6, Cl 8

5шт.

6

P38002

COIL SPRING

SPRING - handle return

1шт.

P4842763

CONTROL LEVER

HANDLE ASSEMBLY - door latch, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

HANDLE - door latch, order handle assembly P4842763

1шт.

8

P28780

SELF LUB RING

BUSHING - door handle

1шт.

9

P29938

BALL KNOB

KNOB - handle

1шт.

10

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm

1шт.

11

P34614

WASHER

- flat, 14 mm

1шт.

12

P34906

RUBBER WASHER

WASHER - spring type

1шт.
