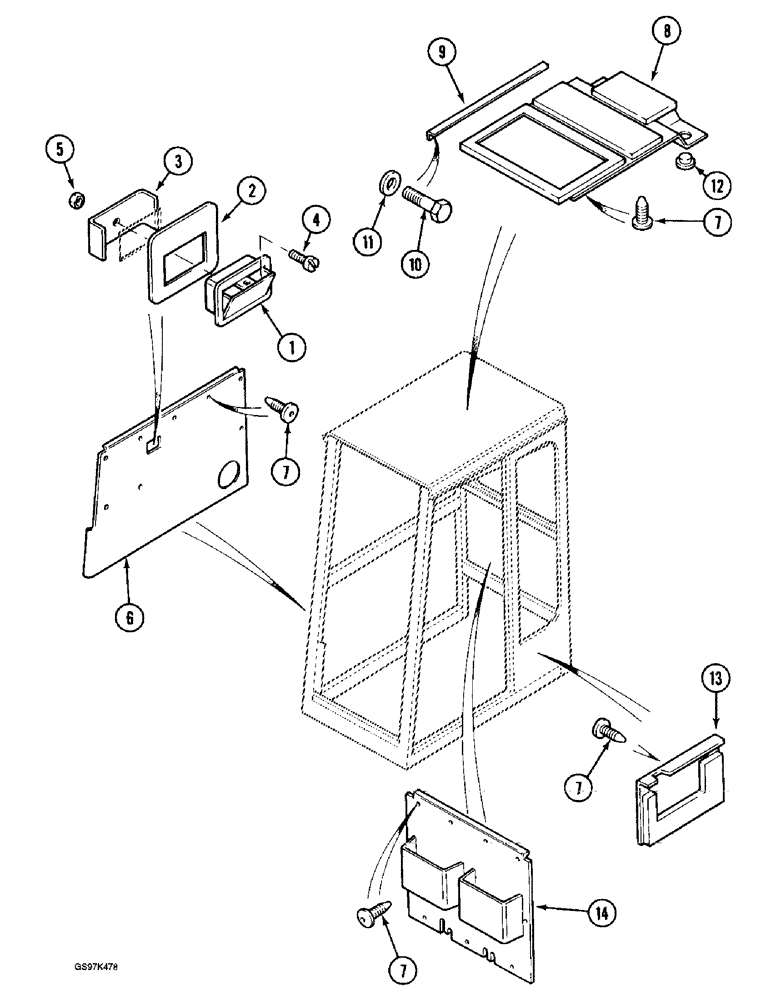

Запчасти Case 170C (9-086) - CAB, INSULATION, P.I.N. 02301 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-82 and 9-84, Includes: Ref. 1-14

1шт.

1

P2343284

ASH TRAY

TRAY - ash, cab

1шт.

2

P4423439

LARGE PLATE

PLATE - support, ash tray

1шт.

3

P6022751

SUPPORT

PLATE - retainer

1шт.

4

P32506

SCREW

- slotted head, 3 mm x 12 mm

1шт.

5

825-1403

NUT,M3, Cl 8

- hex, 3 mm - 0.5 (Replaces nut P34105)

1шт.

6

P3441444

LARGE PLATE

INSULATION - cab, right-hand side

1шт.

7

P2036971

BUTTON

RETAINER - insulation

32шт.

8

P4241479

LARGE PLATE

INSULATION - cab, top, with door

1шт.

9

P1831643

ANGLE BAR

STRIP - retainer, cab insulation

2шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads, Retainer strip (Replaces bolt P33809) Hex, M6 x 20, 8.8

6шт.

11

P3528799

WASHER

SPACER - retainer bolt, 4 mm thick

6шт.

12

P3037468

PLASTIC PLUG

PLUG - plastic, cab top insulation

2шт.

13

P2741444

INSULATION - cab, left-hand side, no longer available

1шт.

14

P2741423

LARGE PLATE

INSULATION - cab, rear

1шт.
