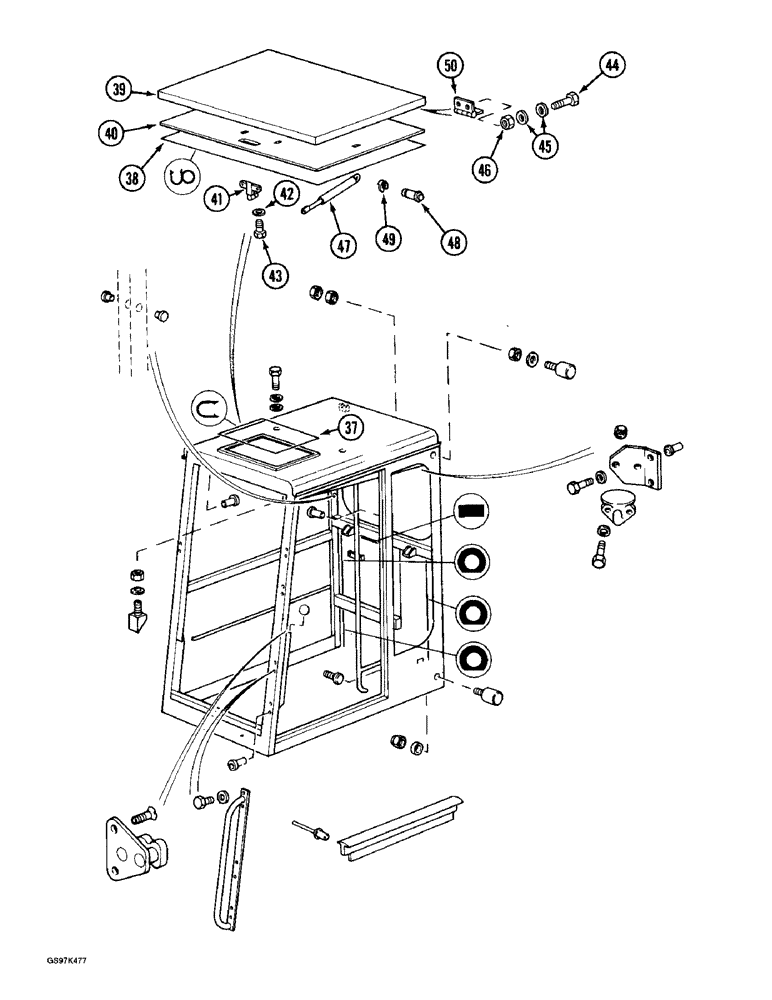

Запчасти Case 170C (9-084) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 02301 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued, Includes: Ref. 37-50

1шт.

37

REF

INSTRUCTION

SEAL - cab roof to panel, 2102 mm (82-3/4 inch) long, cut from bulk seal P303112 below

1шт.

38

REF

INSTRUCTION

SEAL - at roof panel, 2102 mm (82-3/4 inch) long, cut from bulk seal P303167 below

1шт.

39

P8443834

HATCH

PANEL - roof, access cover

1шт.

40

P4241478

CLOTHES

INSULATION - access cover

1шт.

41

3234190R1

LOCK

LATCH - panel open (Replaces latch P1352049)

1шт.

42

P35001

WASHER

- flat, 6 mm

2шт.

43

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Replaces bolt P32621 Hex, M6 x 16, 8.8

2шт.

44

P32610

SCREW

BOLT - hex, 4 mm x 16 mm

4шт.

45

P34603

WASHER

- flat, 4 mm

8шт.

46

P34107

NUT - hex, 4 mm, order from Deutz

4шт.

47

3399422R3

GAS STRUT,225mm Extended, 165mm Compressed

SPRING - gas, panel control (Replaces spring P3036997)

1шт.

48

3234082R1

PIN

- gas spring (Replaces pin P6427819)

4шт.

49

3233681R1

SNAP RING

CLIP - retainer (Replaces clip P1352050)

4шт.

50

P1136610

HINGE

- roof panel (Replaces hinge P1352048)

2шт.

P303112

SEAL

- bulk, sold by the meter

1шт.

P303167

GASKET

SEAL - bulk, sold by the meter

1шт.
