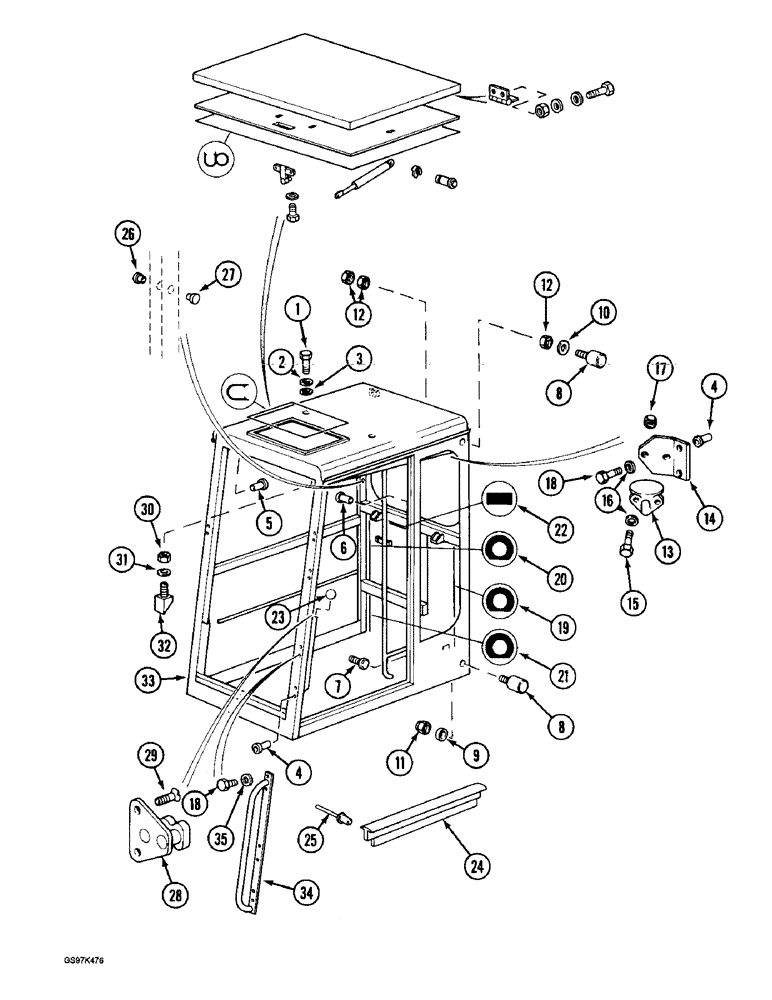

Запчасти Case 170C (9-082) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 02301 AND AFTER (09) - CHASSIS

P8443829

CAB

ASSEMBLY - excavator, Includes: Ref. 1-35

1шт.

1

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

At cab top Hex, M14 x 30

2шт.

2

P35044

WASHER

- lock, 14 mm

2шт.

3

P945237

WASHER

- flat, 14 mm

2шт.

4

P834513

NUT

RETAINER - bolt, sleeve type, use as plug in some locations, 6 mm

22шт.

5

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm

6шт.

6

P35444

RIVET

RETAINER - bolt, sleeve type, 4 mm

2шт.

7

P1827953

PIN

- shoulder, handle mounting

1шт.

8

P3841416

STOP

- door, rubber, upper and lower

2шт.

9

P3528794

WASHER

SPACER - stop, 6 mm thick

1шт.

10

P35002

WASHER

- flat, 8 mm

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

1шт.

12

P34211

NUT

- hex, M8

4шт.

13

P4151

COAT HOOK

HOOK - coat

1шт.

14

P2928219

SUPPORT

BRACKET - mounting, coat hook

1шт.

15

P933825

SCREW

BOLT - hook to bracket, 6 mm x 18 mm

2шт.

16

P34607

WASHER

- lock, 6 mm

4шт.

17

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

2шт.

18

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, Bracket to cab (Replaces bolt P33807)

2шт.

19

REF

INSTRUCTION

SEAL - cab, left-hand rear, 787 mm (31 inch) long, cut from bulk seal P1303159, see below

1шт.

Use adhesive P3578 for mounting.

1шт.

20

REF

INSTRUCTION

SEAL - cab, upper right-hand rear, 492 mm (19-3/8 inch) long, cut from bulk seal P1303159, see below

1шт.

Use adhesive P3578 for mounting.

1шт.

21

REF

INSTRUCTION

SEAL - cab, lower right-hand rear, 241 mm (9-1/2 inch) long, cut from bulk seal P1303159, see below

1шт.

Use adhesive P3578 for mounting.

1шт.

22

REF

INSTRUCTION

SEAL - cab, upper rear, 902 mm (35-1/2 inch) long, cut from bulk seal P403145, see below

1шт.

Use adhesive P3578 for mounting.

1шт.

23

P29906

BALL KNOB

KNOB - handle

1шт.

24

P4048317

CONNECTING STRIP

COVER - door sill

1шт.

25

P35413

RIVET

POP RIVET - door sill cover

6шт.

26

P2537454

PLASTIC PLUG

PLUG - plastic, cab post, outer

2шт.

27

P2537452

PLASTIC PLUG

PLUG - plastic, cab post, inner

2шт.

28

P852054

CATCH PLATE

STRIKER - door latch

1шт.

29

P32412

SCREW

- striker to cab, use P3559 adhesive to prevent loosening

2шт.

30

825-1405

NUT,M5, Cl 8

(Replaces nut P34108) M5, Cl 8

2шт.

31

P4328718

WASHER

- stop, 3 mm thick

2шт.

32

P4241455

STOP

- windshield, rubber

2шт.

33

NSS

NOT SOLD SEPARAT

CAB - excavator

1шт.

34

P4247944

HANDLE

- cab access

1шт.

35

P3528799

WASHER

- flat, 4 mm thick

6шт.

P1303159

SEAL

- bulk, sold by the meter

1шт.

P403145

SEAL

- bulk, sold by the meter

1шт.
