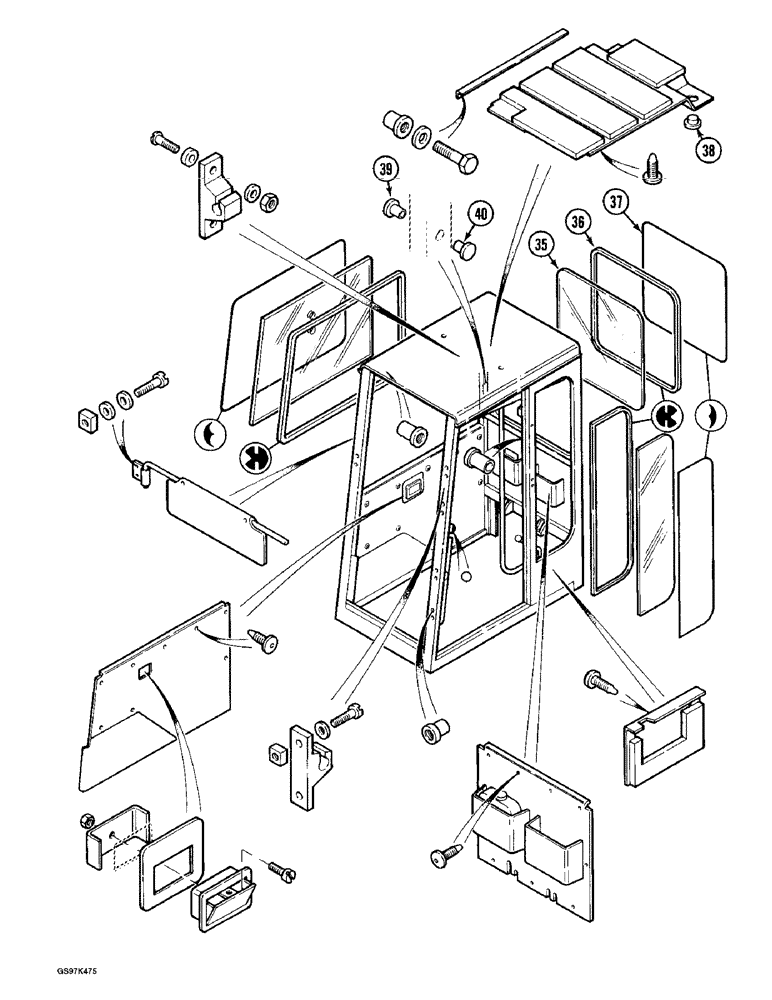

Запчасти Case 170C (9-080) - CAB, CAB GLASS AND INSULATION, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02320 (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued

1шт.

35

P1347091

GLASS

- window, cab rear, Serial Range: -02305

1шт.

35

P2047006

GLASS

- window, cab rear, Start Serial: 02305

1шт.

36

P8046010

SEAL

RETAINER - rubber, window to cab, Serial Range: -02305

1шт.

36

P8846016

SEAL

RETAINER - rubber, window to cab, Start Serial: 02305

1шт.

37

REF

INSTRUCTION

SEAL - window glass, 2997 mm (118 inch) long, cut from bulk seal P346008 below, Serial Range: -02305

1шт.

37

REF

INSTRUCTION

SEAL - window glass, 3000 mm (118-7/64 inch) long, cut from bulk seal P1303170 below, Start Serial: 02305

1шт.

38

P3037468

PLASTIC PLUG

PLUG - plastic

2шт.

39

P2537454

PLASTIC PLUG

PLUG - plastic, cab post, outer, if used

1шт.

40

P2537452

PLASTIC PLUG

PLUG - plastic, cab post, inner, if used

1шт.

P346008

SEAL

- bulk, sold by the meter

1шт.

P1303170

SPECIAL RING

SEAL - bulk, sold by the meter

1шт.
