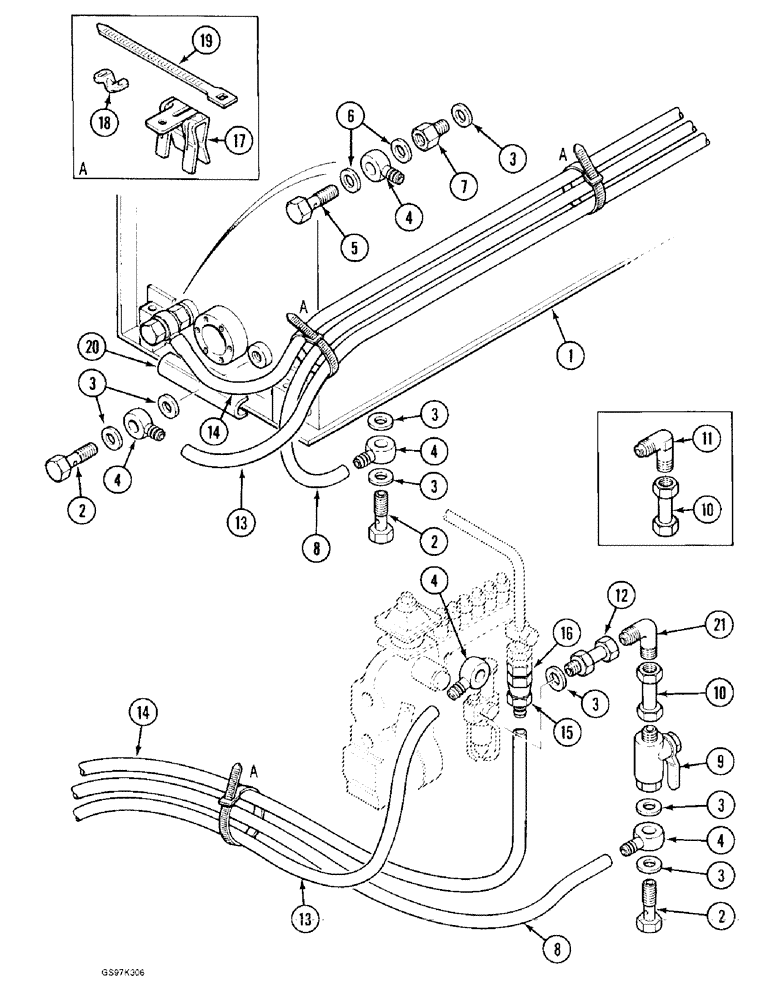

Запчасти Case 170C (3-6) - FUEL LINES AND FITTINGS, P.I.N. 74502 THROUGH P.I.N. 74662, P.I.N. 02301 AND AFTER (03) - FUEL SYSTEM

1

P1540251

FUEL TANK

TANK ASSEMBLY - fuel, excavator, parts list Figure 3-2

1шт.

2

P730011

BANJO BOLT

BOLT - fuel hose connector

3шт.

3

P45239

WASHER, SEALING

GASKET - fuel hose connector

8шт.

4

P1337052

FITTING

CONNECTOR - fuel hose

5шт.

5

P730034

SCREW

BOLT - fuel return hose connector

1шт.

6

P146098

WASHER, SEALING

GASKET - fuel return hose connector

2шт.

7

P637389

RESTRICTOR

ADAPTER - fuel return connector bolt

1шт.

8

REF

INSTRUCTION

HOSE - fuel, to fuel shutoff valve, 3600 mm (141-3/4 inch) long, cut from bulk hose P3682 below

1шт.

9

P837836

COCK

VALVE - fuel shutoff

1шт.

10

P1937672

PIPE

TUBE - fuel shutoff valve to elbow, Serial Range: -74502

1шт.

11

P37075

ELBOW

- shutoff valve to primer pump, Serial Range: -74502

1шт.

12

P3237591

FITTING

ADAPTER - shutoff valve to primer pump

1шт.

13

REF

INSTRUCTION

HOSE - fuel, injection pump return to tank, 3200 mm (126 inch) long, cut from bulk hose P3682 below

1шт.

14

P7831961

PIPE

HOSE - fuel, return to tank, 3200 mm (126 inch) long, cut from bulk hose P3682 below

1шт.

15

P2237011

FITTING

ADAPTER - fuel return hose to fuel pump (Replaces adapter P2337573)

1шт.

16

P2337554

FITTING

ADAPTER - fuel return hose to fuel pump

1шт.

17

P2036903

CLASP

CLIP - strap retainer, 8 mm - 13 mm (5/16 - 1/2 inch) range

1шт.

18

PP2036939

CLASP

RETEINER - strap

1шт.

19

P51946

CLAMP

STRAP - tie, hose, 258 mm (10-1/8 inch) long

1шт.

20

REF

INSTRUCTION

TRIM - edge, 200 mm (7-7/8 inch) long, cut from bulk trim P303112 below

1шт.

21

P1737056

ANGLE

ELBOW - shutoff valve to primer pump, Start Serial: 74502

1шт.

P3682

TUBE

HOSE - bulk, sold by the meter

1шт.

P303112

SEAL

TRIM - bulk, sold by the meter

1шт.
