Запчасти Case 170C (9-072) - BACKHOE BUCKET CUTTER OPTIONS, WITH ONE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

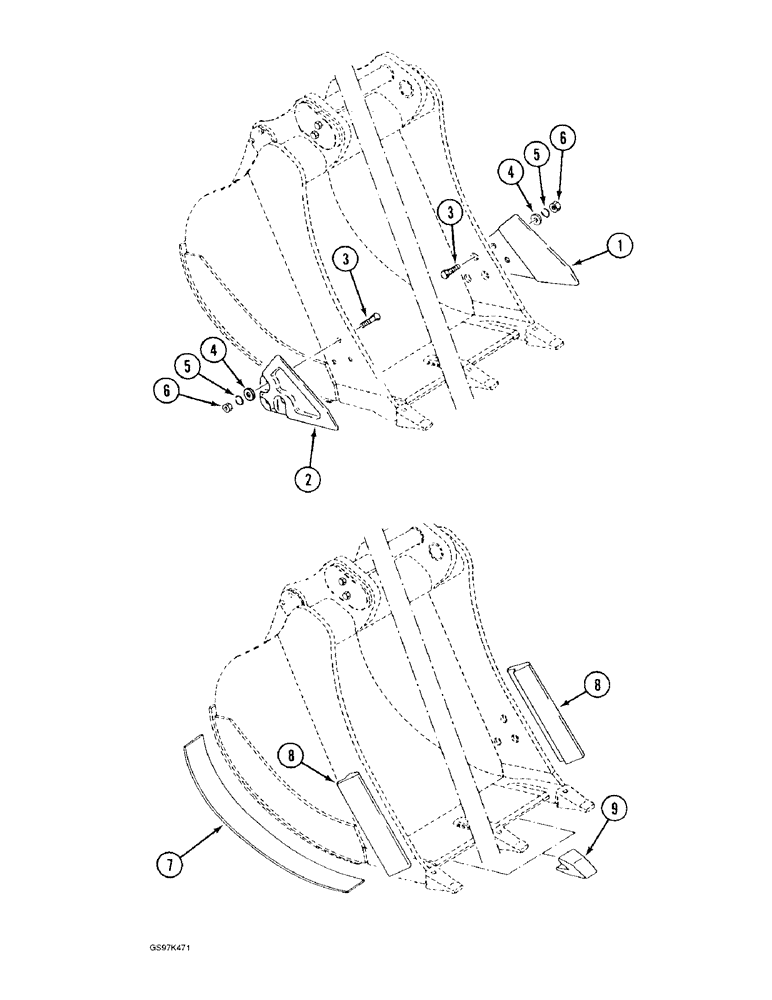

Схема запчастей Case 170C - (9-072) - BACKHOE BUCKET CUTTER OPTIONS, WITH ONE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

P1304010

BLADE

CUTTER - right-hand side, standard, bolt-on

1шт.

2

P1304009

BLADE

CUTTER - left-hand side, standard, bolt-on

1шт.

3

P32759

SCREW

BOLT - plow, 30 mm x 80 mm

6шт.

4

P35011

WASHER

- flat, 30 mm

6шт.

5

P34721Q

WASHER

- lock, 30 mm

6шт.

6

P34125

NUT

- hex, 30 mm

6шт.

7

P5826625

STIFFENER

STRIP - wear, bucket

2шт.

8

P2346195

PROTECTOR

CUTTER - side, heavy duty, weld-on

2шт.

9

P2646126

PROTECTOR

TOOTH - cutting, heavy duty

3шт.

Выбрано товаров: 9
