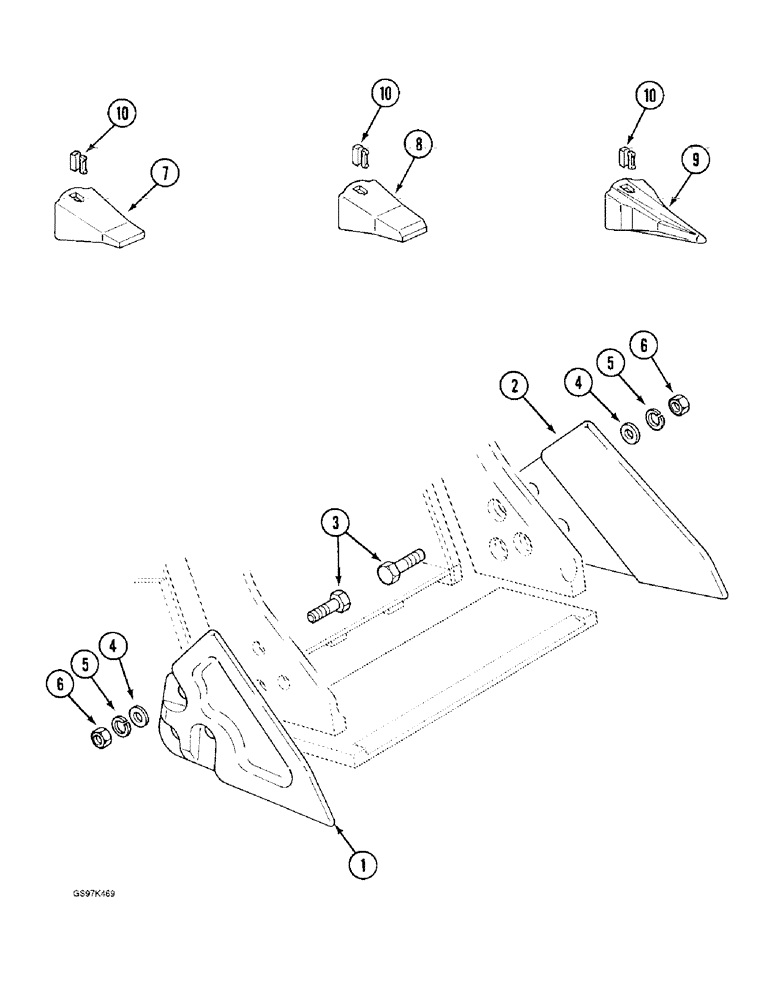

Запчасти Case 170C (9-068) - BACKHOE BUCKET CUTTER OPTIONS, WITH ONE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

1

P1304009

BLADE

CUTTER - left-hand side, standard, bolt-on

1шт.

2

P1304010

BLADE

CUTTER - right-hand side, standard, bolt-on

1шт.

3

P32759

SCREW

BOLT - hex, 30 mm x 80 mm

6шт.

4

P35011

WASHER

- flat, 30 mm

6шт.

5

P34721Q

WASHER

- lock, 30 mm

6шт.

6

P34125

NUT

- hex, 30 mm

6шт.

7

P1604013

POINT

TOOTH - bucket, standard

1шт.

8

P1604011

POINT

TOOTH - bucket, rock

1шт.

9

P1604012

POINT

TOOTH - bucket, spur type

1шт.

10

P1236129

BUCKET TOOTH KEY

RETAINER - bucket tooth

1шт.
