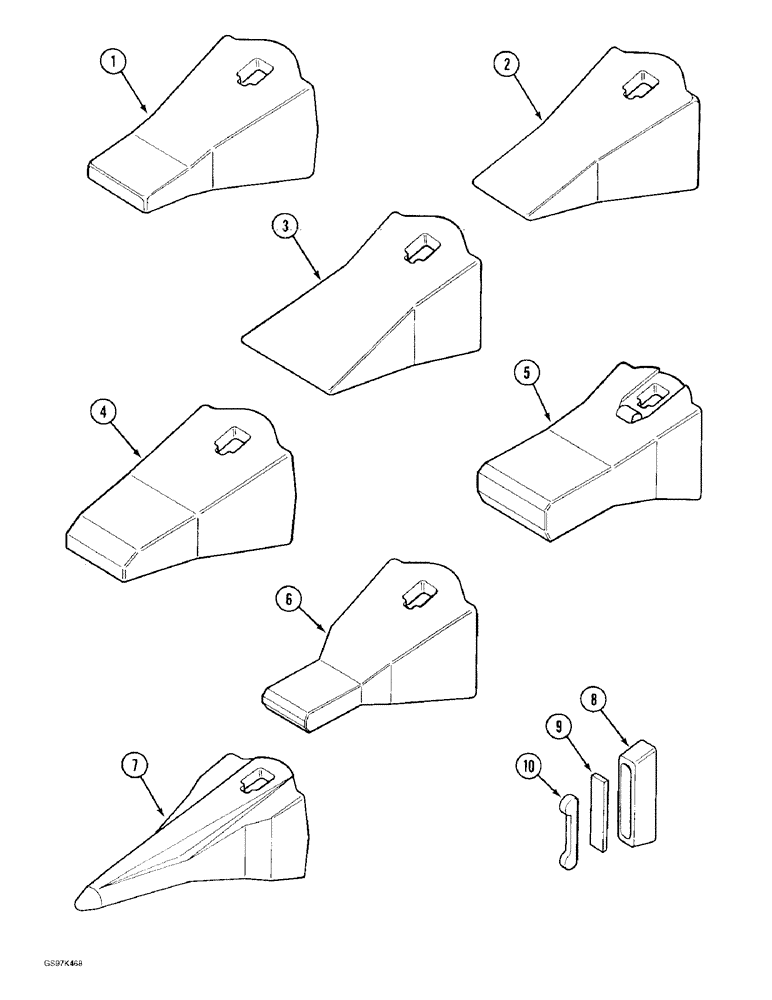

Запчасти Case 170C (9-066) - BUCKET TEETH, WITH THREE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

1

P704033

POINT

TOOTH - bucket, standard, no longer available, order P1604013 tooth and P1236129 retainer, see Figure 9-68, items 7 and 10

1шт.

2

P704065

POINT

TOOTH - bucket, standard cutting

1шт.

3

P704072

POINT

TOOTH - bucket, wide cutting, no longer available

1шт.

4

P704051

POINT

TOOTH - bucket, rock, no longer available, order P1604011 tooth and P1236129 retainer, see Figure 9-68, items 8 and 10

1шт.

5

P704079

POINT

TOOTH - bucket, hard rock, no longer available

1шт.

6

P704058

POINT

TOOTH - bucket, pick type, no longer available

1шт.

7

P1204059

POINT

TOOTH - bucket, spur type, no longer available, order P1604012 tooth and P1236129 retainer, see Figure 9-68, items 9 and 10

1шт.

8

P704035

BUCKET TOOTH KEY

LOCK - bucket tooth

1шт.

9

P20225

BLOCK ASSY.

KEY - tooth lock

1шт.

10

P404297

BUCKET TOOTH KEY

RETAINER - key

1шт.
