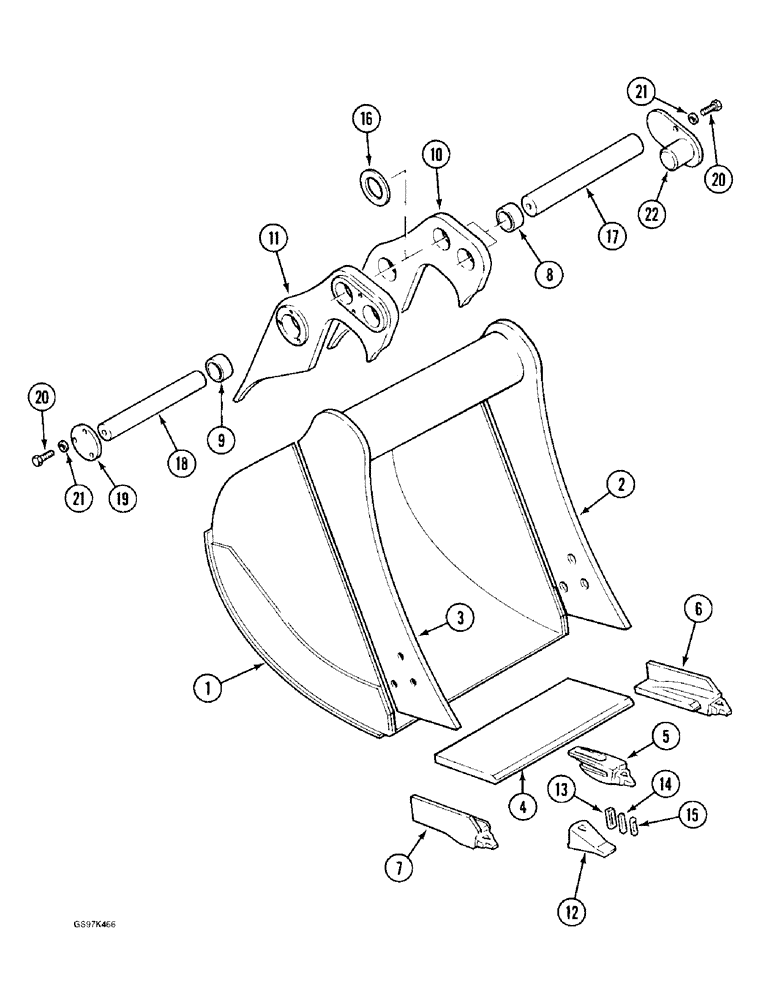

Запчасти Case 170C (9-062) - BACKHOE BUCKET, WITH THREE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - backhoe, excavator, 1-3/4 cubic yard, 1200 mm (47 inch) wide, machinery item, order from Machinery Price List, Includes: Ref. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - backhoe, excavator

1шт.

2

P4724209

STIFFENER

PLATE - cutting edge, side, right-hand

1шт.

3

P4724208

STIFFENER

PLATE - cutting edge, side, left-hand

1шт.

P5754835

BLADE

EDGE ASSEMBLY - cutting, includes shanks, bucket, Includes: Ref. 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - cutting edge, bucket

1шт.

5

P804008

SUPPORT

SHANK - tooth, center

2шт.

6

P1504025

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

7

P1504026

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

8

P4528770

BUSHING

- bucket pin, at, Serial Range: arm-bucket

4шт.

9

P4628782

BUSHING

- bucket pin, at, Serial Range: link-bucket

2шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - bucket mounting, right-hand

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - bucket mounting, left-hand

1шт.

12

REF

INSTRUCTION

TOOTH - bucket, see Figure 9-66 for options

4шт.

13

REF

INSTRUCTION

LOCK - bucket tooth, see Figure 9-66 for options

2шт.

14

REF

INSTRUCTION

KEY - tooth lock, see Figure 9-66 for options

2шт.

15

REF

INSTRUCTION

RETAINER - key, see Figure 9-66 for options

2шт.

16

P745319

WASHER

SHIM - arm to bucket, 2 mm (0.08 inch) thick

1шт.

17

P3227384

PIN

-, Serial Range: arm-bucket

1шт.

18

P3227383

PIN

-, Serial Range: link-bucket

1шт.

19

P8230153

CAP

PLATE - retainer, bucket pin

2шт.

20

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- retainer plate, hex, full threads, 12 - 1.75 x 35 mm

10шт.

21

P3528793

WASHER

SPACER - retainer plate bolt

10шт.

22

P4327162

CAP

RETAINER - pin

2шт.
