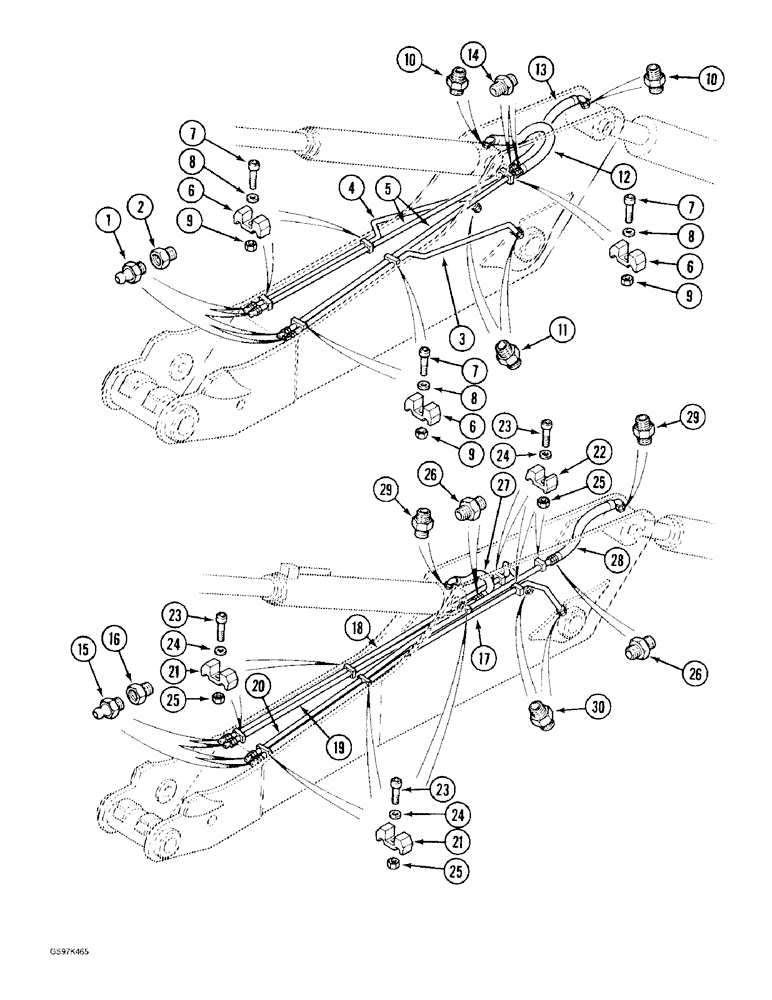

Запчасти Case 170C (9-060) - ARM LUBRICATION LINES, USED ON UNITS WITH 2.5 METER ARM (09) - CHASSIS

1

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

4шт.

2

P4037594

END FITTING

ADAPTER - grease, Serial Range: fitting-tube

4шт.

3

P7649184

PIPE

TUBE - lubrication, pin at boom, left-hand side (Replaces tube P6849144)

1шт.

4

P7649183

PIPE

TUBE - lubrication, pin at boom, right-hand side (Replaces tube P6849143)

1шт.

5

P7147150

PIPE

TUBE - lubrication, closed end of tool cylinder

2шт.

6

P404292

SHIN

CLAMP - double tube

5шт.

7

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, class 10.9

5шт.

8

P34713

WASHER

- lock

5шт.

9

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

5шт.

10

P4037573

UNION

ADAPTER ASSEMBLY - hose to cylinder, Includes: P945295

2шт.

P945295

SEAL

O-RING - adapter

1шт.

11

P4037571

UNION

ADAPTER ASSEMBLY - tube to arm, Includes: P7046042

2шт.

P7046042

SEAL

O-RING - adapter

1шт.

12

P6631918

HOSE

- lubrication, closed end of tool cylinder, 500 mm (19-11/16 inch) long

1шт.

13

P6631920

HOSE

- lubrication, rod end of arm cylinder, 800 mm (31-1/2 inch) long

1шт.

14

P3237535

UNION

ADAPTER - straight, lubrication lines

2шт.

15

J45801

LUBE NIPPLE,M8 x 1.25

lubrication, used on units with 3.2 meter arm M8 x 1.25

4шт.

16

P4037594

END FITTING

ADAPTER - grease fitting to tube, used on units with 3.2 meter arm

4шт.

17

P6849014

PIPE

TUBE - lubrication, pin at boom, left-hand side (Replaces tube P6249073), used on units with 3.2 meter arm

1шт.

18

P6849015

PIPE

TUBE - lubrication, pin at boom, right-hand side (Replaces tube P6249074), used on units with 3.2 meter arm

1шт.

19

P7147152

PIPE

TUBE - lubrication, closed end of tool cylinder, used on units with 3.2 meter arm

1шт.

20

P7147151

PIPE

TUBE - lubrication, rod end of arm cylinder, used on units with 3.2 meter arm

1шт.

21

P404292

SHIN

CLAMP - double tube, used on units with 3.2 meter arm

5шт.

22

P404291

SHIN

CLAMP - single tube, used on units with 3.2 meter arm

3шт.

23

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, class 10.9, used on units with 3.2 meter arm

8шт.

24

P34713

WASHER

- lock, used on units with 3.2 meter arm

8шт.

25

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Used on units with 3.2 meter arm

8шт.

26

P3237535

UNION

ADAPTER - tube to hose, used on units with 3.2 meter arm

2шт.

27

P6631918

HOSE

- lubrication, closed end of tool cylinder, 500 mm (19-11/16 inch) long, used on units with 3.2 meter arm

1шт.

28

P6631920

HOSE

- lubrication, rod end of arm cylinder, 800 mm (31-1/2 inch) long, used on units with 3.2 meter arm

1шт.

29

P4037573

UNION

ADAPTER ASSEMBLY - hose to cylinder, used on units with 3.2 meter arm

2шт.

P945295

SEAL

O-RING - adapter, used on units with 3.2 meter arm

1шт.

30

P4037571

UNION

ADAPTER ASSEMBLY - tube to arm, used on units with 3.2 meter arm

2шт.

P7046042

SEAL

O-RING - adapter

1шт.
