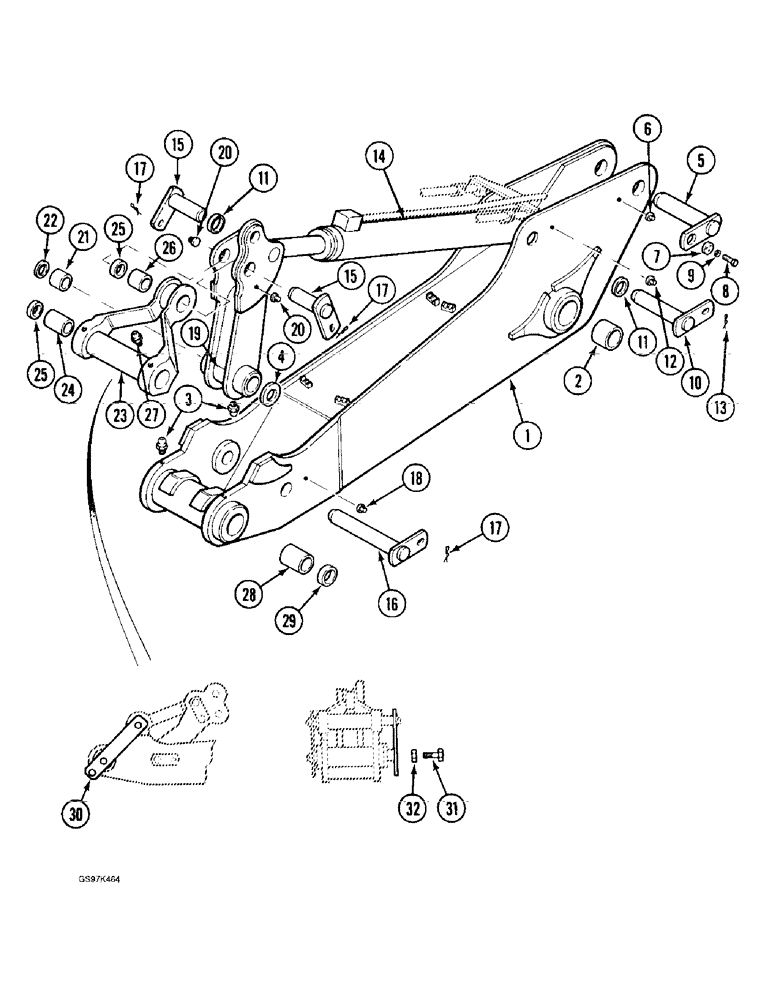

Запчасти Case 170C (9-058) - ARM, LINKS AND MOUNTING PINS, W/ 3.2 METER (10 6 ") ARM, P.I.N. 74629 - 74662, P.I.N. 02301 & AFT (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

ARM - 2.5 meter (8 foot, 3 inch) long

1шт.

2

P1528676

BUSHING

- arm pivot, at, Serial Range: arm-boom

2шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

3шт.

4

P245424

WASHER

SHIM - at hinge to arm, 2 mm (0.08 inch) long

1шт.

5

P2930917

PIVOT PIN

PIN - pivot, arm cylinder rod end mounting

1шт.

6

P3030104

STOP LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-arm

1шт.

7

P2630178

CAP

INSERT - pin lock

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

3шт.

9

P4328797

WASHER

SPACER - bolt, 8 mm thick

3шт.

10

P2530909

HEADED PIN

PIN - pivot, tool cylinder base end mounting

1шт.

11

P151314

SEAL

- tool cylinder pivot pin

4шт.

12

P50053

SHAFT LOCK

PIN - lock, tool cylinder pivot pin, Serial Range: welded-arm

1шт.

13

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, parts list Figure 8-168 or 8-170

1шт.

15

P2430966

PIVOT PIN

PIN - pivot

2шт.

16

P2430983

PIVOT PIN

PIN - pivot, Serial Range: hinge-arm

1шт.

17

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

3шт.

18

P50053

SHAFT LOCK

PIN - lock, tool hinge pin, Serial Range: welded-arm

1шт.

P6754848

LINKAGE YOKE

HINGE ASSEMBLY - tool, Includes: Ref. 19-22

1шт.

19

NSS

NOT SOLD SEPARAT

HINGE - tool, order hinge assembly P6754848

1шт.

20

P1127863

SHAFT LOCK

PIN - lock, tool hinge pin, Serial Range: welded-hinge

2шт.

21

P4628707

BUSHING

- pivot, Serial Range: hinge-arm

2шт.

22

P151317

SEAL

- pivot pin, Serial Range: hinge-arm

1шт.

P7754841

ROD, CONNECTING

LINK ASSEMBLY - tool

1шт.

23

NSS

NOT SOLD SEPARAT

LINK - tool, order link assembly P7754841

1шт.

24

P4628784

BUSHING

- tool link

2шт.

25

P151316

SEAL

- pivot pin

4шт.

26

P5428726

BUSHING

- hinge to tool link

1шт.

27

J45801

LUBE NIPPLE,M8 x 1.25

lubrication, link bushing M8 x 1.25

3шт.

28

P4628771

BUSHING

-, Serial Range: arm-tool

1шт.

29

P151315

SEAL

- pivot pin

2шт.

30

P4823434

PLATE

LINK - transport, used when bucket is removed

2шт.

31

P33812

SCREW

BOLT - hex, 22 mm x 55 mm

4шт.

32

P4628738

WASHER

SPACER - bolt, 8 mm thick

4шт.

P8754821

DIPPER

ARM, 3.2 meters, 10ft. 6in.

1шт.
