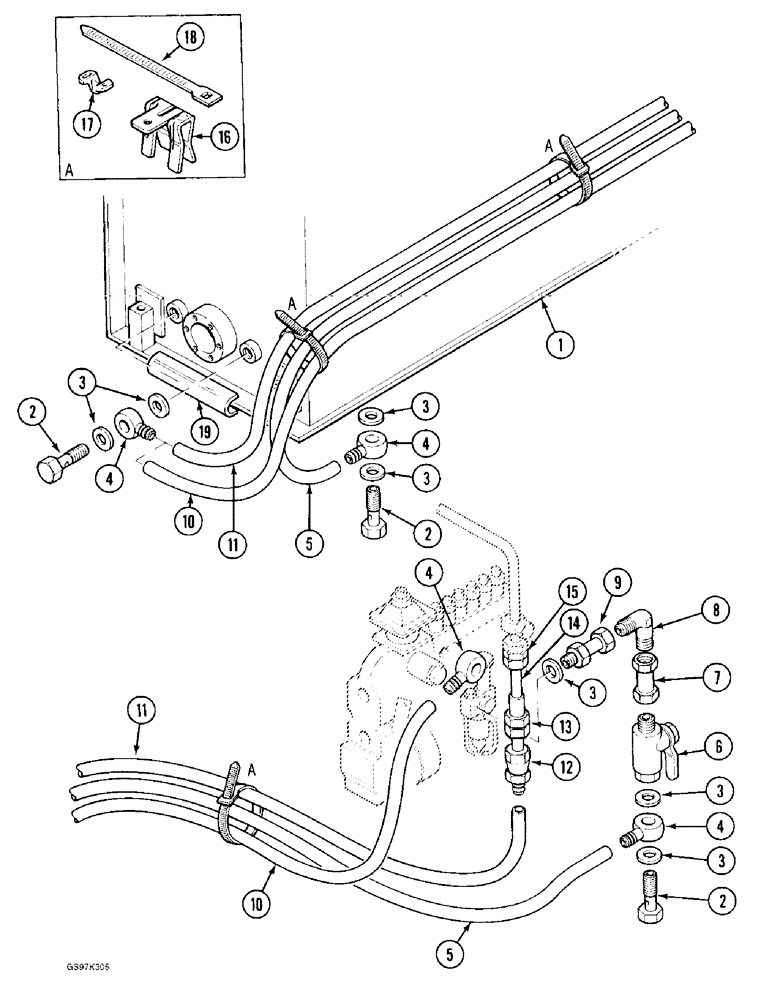

Запчасти Case 170C (3-4) - FUEL LINES AND FITTINGS, PRIOR TO P.I.N. 74502 (03) - FUEL SYSTEM

1

P1540251

FUEL TANK

TANK ASSEMBLY - fuel, excavator, parts list Figure 3-2

1шт.

2

P730011

BANJO BOLT

BOLT - fuel hose connector

4шт.

3

P45239

WASHER, SEALING

GASKET - fuel hose connector

9шт.

4

P1337052

FITTING

CONNECTOR - fuel hose

5шт.

5

REF

INSTRUCTION

HOSE - fuel, to fuel shutoff valve, 3600 mm (141-3/4 inch) long, cut from bulk hose P3682 below

1шт.

6

P837836

COCK

VALVE - fuel shutoff

1шт.

7

P1937672

PIPE

TUBE - fuel shutoff, Serial Range: valve-elbow

1шт.

8

P37075

ELBOW

- shutoff valve to primer pump

1шт.

9

P3237591

FITTING

ADAPTER - shutoff valve to primer pump

1шт.

10

REF

INSTRUCTION

HOSE - fuel, injection pump return to tank, 3600 mm (141-3/4 inch) long, cut from bulk hose P3682 below

1шт.

11

REF

INSTRUCTION

HOSE - fuel, return to tank, 3200 mm (126 inch) long, cut from bulk hose P3682 below

1шт.

12

P2337573

FITTING

ADAPTER - fuel return hose to fuel pump

1шт.

13

P37553

UNION

ADAPTER - fuel return hose to fuel pump

1шт.

14

P2450177

RETURN PIPE

TUBE - fuel return hose to fuel pump

1шт.

15

P2337554

FITTING

ADAPTER - fuel return hose to fuel pump

1шт.

16

P2036902

CLASP

CLIP - strap retainer, 3 mm - 7 mm (1/8 - 1/4 inch) range

1шт.

16

P2036903

CLASP

CLIP - strap retainer, 8 mm - 13 mm (5/16 - 1/2 inch) range

1шт.

17

P2036939

CLASP

RETAINER - strap

1шт.

18

P51946

CLAMP

STRAP - tie, hose, 258 mm (10-1/8 inch) long

1шт.

19

REF

INSTRUCTION

TRIM - edge, 200 mm (7-7/8 inch) long, cut from bulk trim P303112 below

1шт.

P3682

TUBE

HOSE - bulk, sold by the meter

1шт.

P303112

SEAL

TRIM - bulk, sold by the meter

1шт.
