Запчасти Case 170C (9-048) - BOOM AND RELATED PARTS, P.I.N. 74629 THROUGH 74662, P.I.N. 02301 AND AFTER (09) - CHASSIS

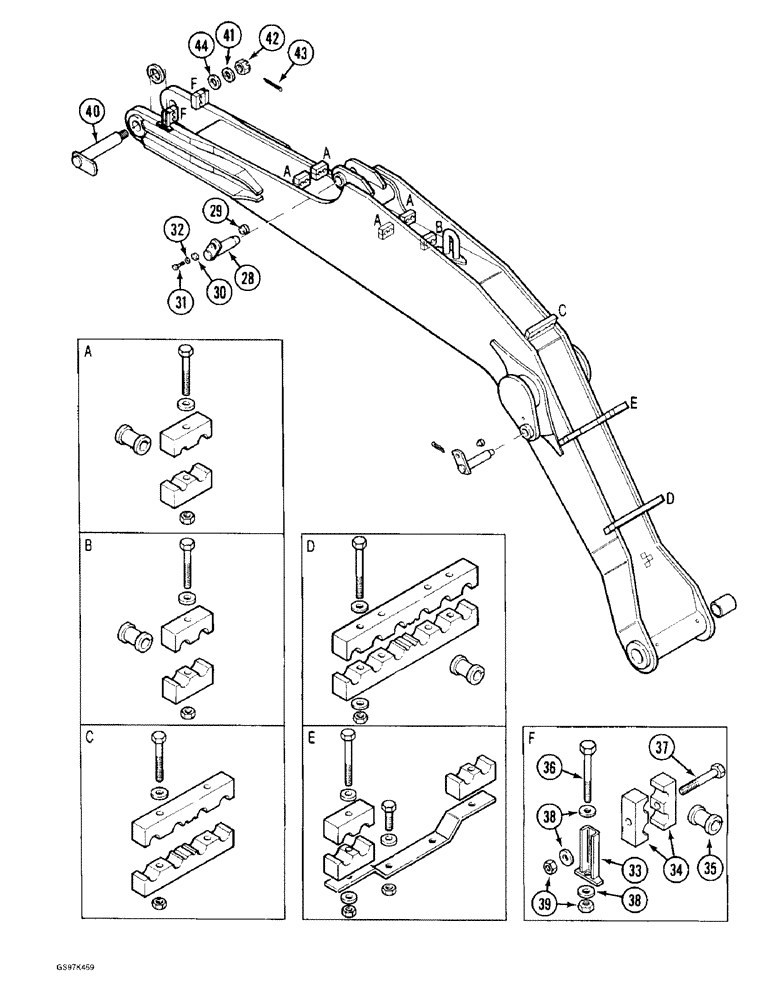

Схема запчастей Case 170C - (9-048) - BOOM AND RELATED PARTS, P.I.N. 74629 THROUGH 74662, P.I.N. 02301 AND AFTER (09) - CHASSIS

Артикул

Название

Примечание

Количество

28

P2930939

PIVOT PIN

PIN - pivot, arm cylinder base end mounting

1шт.

29

P3030104

STOP LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

30

P2630178

CAP

INSERT - pin lock

1шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

3шт.

32

P4328797

WASHER

SPACER - bolt, 8 mm thick

3шт.

33

P4427160

SUPPORT

BRACKET - mounting, tube clamp

2шт.

34

P820338

SHIN

CLAMP - tube

4шт.

35

P741437

BUSHING

INSULATOR - tube

2шт.

36

P33868

SCREW

BOLT - hex, 16 mm x 80 mm

2шт.

37

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

2шт.

38

P4328746

WASHER

SPACER - bolt, 11 mm thick

6шт.

39

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

4шт.

40

P2930977

HANDLED SHAFT

PIN - pivot, Serial Range: arm-boom

1шт.

41

P545577

WASHER

- flat, 64 mm, pivot pin

1шт.

42

P34325

NUT

- hex, slotted, 64 mm, pivot pin

1шт.

43

P35564

SPLIT PIN/SAFETY PIN

PIN - cotter, pivot pin

1шт.

44

P1145579

WASHER

- flat, 16 mm, pivot pin

1шт.

Выбрано товаров: 17
