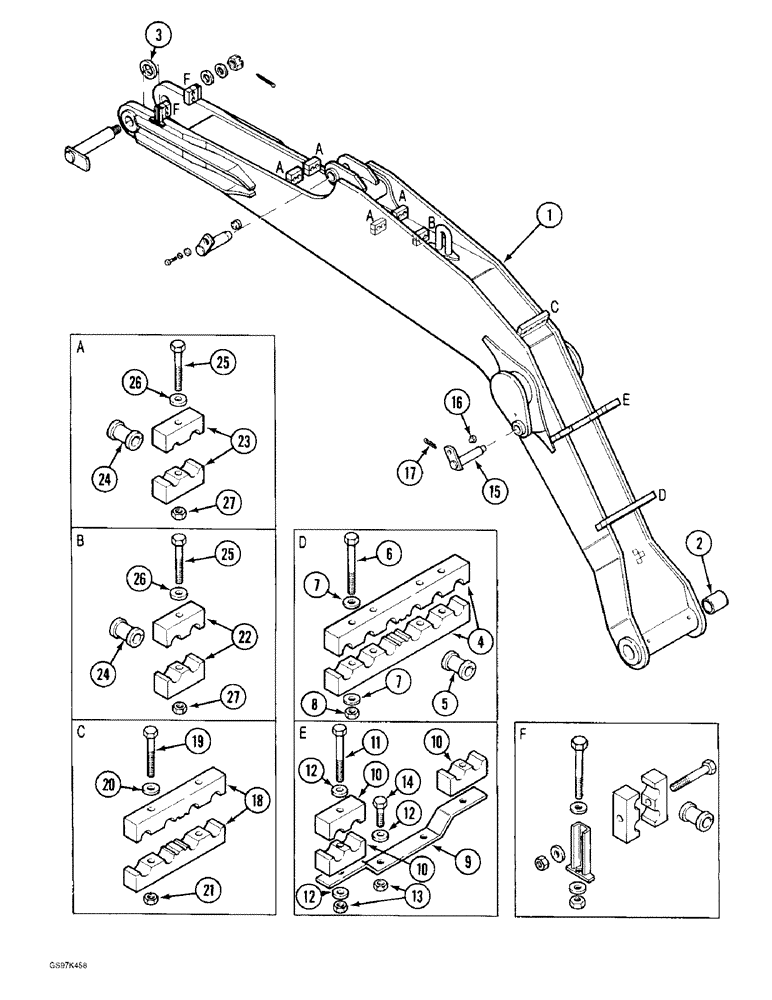

Запчасти Case 170C (9-046) - BOOM AND RELATED PARTS, P.I.N. 74629 THROUGH 74662, P.I.N. 02301 AND AFTER (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

BOOM - excavator

1шт.

2

P1528633

BUSHING

- boom pivot, at, Serial Range: boom-turntable

2шт.

3

P745319

WASHER

SHIM - at boom to arm, 2 mm (0.08 inch) thick

1шт.

4

P920314

SHIN

CLAMP - tube

2шт.

5

P741437

BUSHING

INSULATOR - tube

6шт.

6

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

4шт.

7

P4328746

WASHER

SPACER - bolt, 11 mm thick

8шт.

8

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

4шт.

9

P926459

SUPPORT

BRACKET - tube clamp mounting

1шт.

10

P820396

SHIN

CLAMP - tube

4шт.

11

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

2шт.

12

P4328746

WASHER

SPACER - bolt, 11 mm thick

6шт.

13

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

4шт.

14

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd

2шт.

15

P2430966

PIVOT PIN

PIN - pivot, boom cylinder base end mounting

2шт.

16

P50059

SHAFT LOCK

PIN - lock, boom cylinder pivot pin, Serial Range: welded-boom

2шт.

17

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, split, lock pin

2шт.

18

P820342

SHIN

CLAMP - tube

2шт.

19

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

2шт.

20

P4328746

WASHER

SPACER - bolt, 11 mm thick

2шт.

21

825-1416

NUT,M16, Cl 8

(Replaces nut P34169) M16, Cl 8

2шт.

22

P3220358

SHIN

CLAMP - tube

2шт.

23

P820338

SHIN

CLAMP - tube

8шт.

24

P741437

BUSHING

INSULATOR - tube clamp

6шт.

25

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

5шт.

26

P4328746

WASHER

SPACER - bolt, 11 mm thick

5шт.

27

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

5шт.
