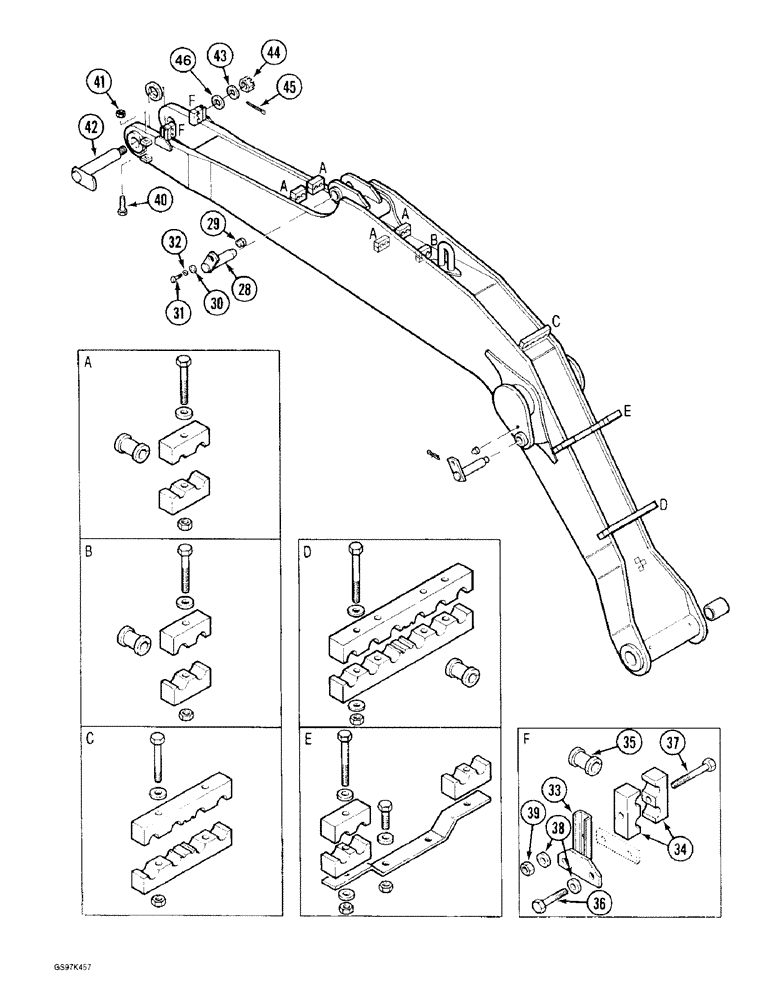

Запчасти Case 170C (9-044) - BOOM AND RELATED PARTS, P.I.N. 74501 THROUGH 74628 (09) - CHASSIS

28

P2930939

PIVOT PIN

PIN - pivot, arm cylinder base end mounting

1шт.

29

P3030104

STOP LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

30

P2630178

CAP

INSERT - pin lock

1шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

3шт.

32

P4328797

WASHER

SPACER - bolt, 8 mm thick

3шт.

33

P4127191

SUPPORT

BRACKET - mounting, tube clamp

2шт.

34

P820338

SHIN

CLAMP - tube

4шт.

35

P741437

BUSHING

INSULATOR - tube

2шт.

36

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

(Replaces bolt P133802) Hex, M16 x 40, 8.8

4шт.

37

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 - 2.0 x 120 mm (Replaces bolt P33856)

2шт.

38

P4328746

WASHER

SPACER - bolt, 11 mm thick

6шт.

39

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10 (Replaces nut P34169)

2шт.

40

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

Pin locking Hex Skt Hd, M12 x 40, 10.9

1шт.

41

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

42

P2930977

HANDLED SHAFT

PIN - pivot, arm to boom (Replaces pin P2530995)

1шт.

43

P545577

WASHER

- flat, 64 mm, pivot pin

1шт.

44

P34325

NUT

- hex, slotted, 64 mm, pivot pin

1шт.

45

P35564

SPLIT PIN/SAFETY PIN

PIN - cotter, pivot pin

1шт.

46

P1145579

WASHER

- flat, 16 mm, pivot pin

1шт.
