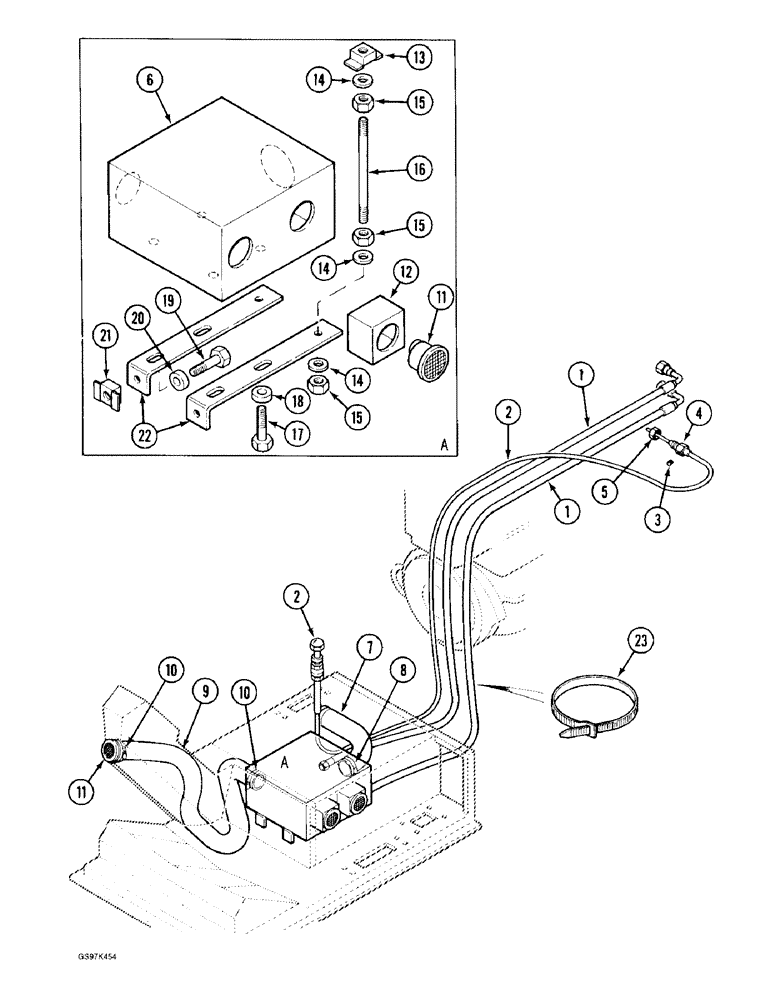

Запчасти Case 170C (9-038) - HEATER AND OIL LINES TO ENGINE (09) - CHASSIS

1

P4931955

HOSE

- oil filter head to heater, 2500 mm (98-7/16 inch) long

2шт.

2

P4831327

CONTROL SLIDE

CABLE - control, heater oil flow

1шт.

3

877-3068

SET SCREW,Hex Skt, M6 x 8mm, Flat Pt

hex socket, 6 - 1.0 x 8 mm, flat point, retainer (Replaces screw P32813)

1шт.

4

P5846265

STOP LOCK

RETAINER - cable

1шт.

5

825-1406

NUT,M6, Cl 8

1шт.

6

P1241846

HEATER ASSY.

HEATER ASSEMBLY - engine oil, parts list Figure 4-54

1шт.

7

P4931987

LOOM

HOSE - air flow

1шт.

8

P136922

CLAMP

- hose

2шт.

9

P5931910

LOOM

HOSE - heater to windshield diffuser

1шт.

10

P136922

CLAMP

- hose

2шт.

11

P3543238

DIFFUSER

- air

3шт.

12

P3441421

FOAM

BLOCK - mounting, air diffuser

2шт.

13

P1334560

NUT

- stud

2шт.

14

P34611

WASHER

- flat, 10 mm, mounting stud

6шт.

15

825-1410

NUT,M10, Cl 8

Mounting stud (Replaces nut P34166) M10, Cl 8

6шт.

16

P2527720

TRUSS ROD

STUD - heater mounting

2шт.

17

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

Mounting bracket (Replaces bolt P33808) Hex, M6 x 30, 8.8, Full Thd

4шт.

18

P3528799

WASHER

SPACER - mounting bolt

4шт.

19

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Mounting bracket Hex, M10 x 30, 8.8

2шт.

20

P3528795

WASHER

SPACER - bolt, 7 mm

2шт.

21

P1334560

NUT

- mounting bracket bolt

2шт.

22

P4625683

SUPPORT

BRACKET - heater mounting

2шт.

23

P51946

CLAMP

STRAP - tie, hose and cable

1шт.
