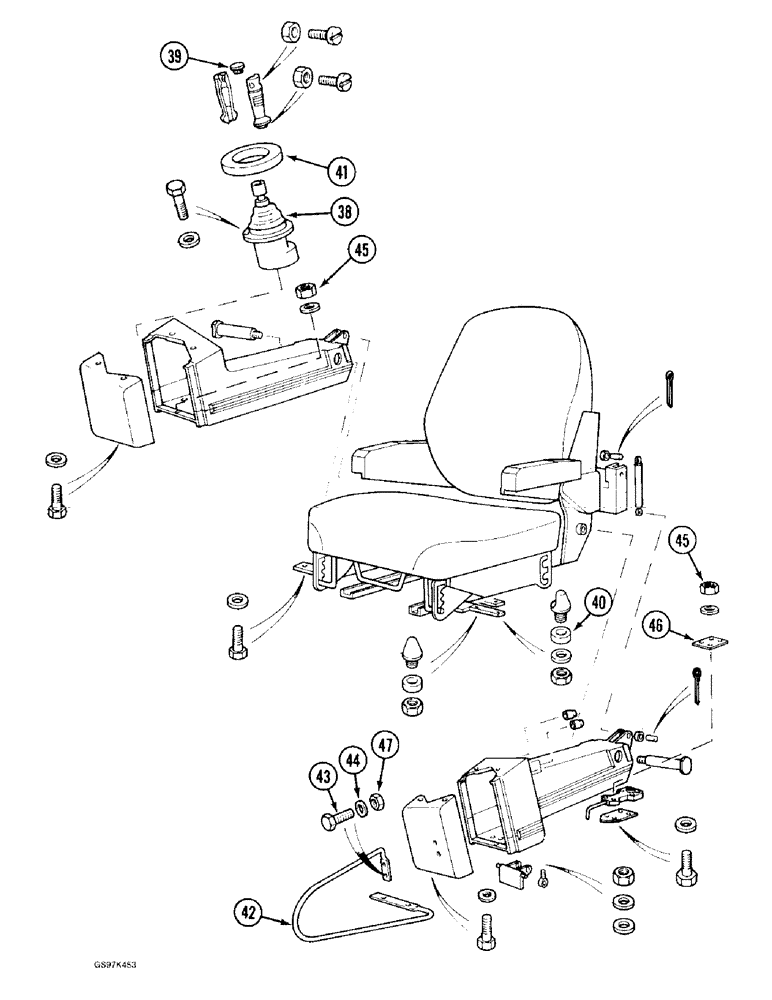

Запчасти Case 170C (9-036) - HAND CONTROL VALVE CONSOLES, P.I.N. 74635 THROUGH 74662, P.I.N. 02301 AND AFTER (09) - CHASSIS

38

REF

INSTRUCTION

VALVE ASSEMBLY - control, hand, parts list Figure 8-124 or 8-126

2шт.

39

P2537472

PLASTIC PLUG

PLUG - control handle

2шт.

40

P34614

WASHER

- flat, 14 mm

1шт.

41

P7230184

PROTECTOR

RING - rubber, hand control valve

2шт.

42

P2130670

BAR

HANDLE - lift, left-hand console, if used

1шт.

43

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

2шт.

44

P3528799

WASHER

SPACER - bolt, 4 mm thick, if used

2шт.

45

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

6шт.

46

P2023290

LARGE PLATE

PLATE - mounting, upper

1шт.

47

832-10406

NUT,M6 x 1, Cl 8

LOCK, , if used (Replaces nut P234513) M6 x 1, Cl 8

2шт.
