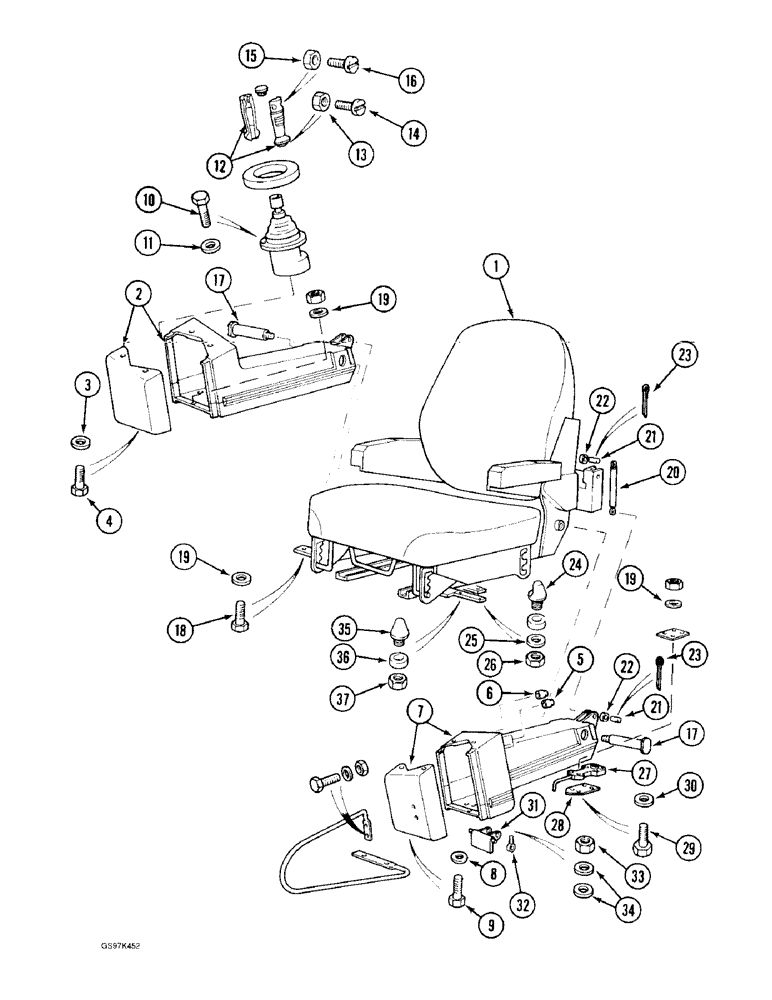

Запчасти Case 170C (9-034) - HAND CONTROL VALVE CONSOLES, P.I.N. 74635 THROUGH 74662, P.I.N. 02301 AND AFTER (09) - CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator’s, parts list Figure 9-26 or 9-28

1шт.

P5242763

CASE

HOUSING ASSEMBLY - console, right-hand, Includes: Ref. 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - right-hand console, order housing assembly P5242763

1шт.

3

P35001

WASHER

- flat, 6 mm

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

1шт.

P5242764

CASE

HOUSING ASSEMBLY - console, left-hand, Includes: Ref. 5-9

1шт.

5

P1737419

PLUG

- plastic, left-hand console

2шт.

6

P1737425

PLASTIC PLUG

PLUG - plastic, left-hand console

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - left-hand console, order housing assembly P5242764

1шт.

8

P35001

WASHER

- flat, 6 mm

1шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

1шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

8шт.

11

P35001

WASHER

- flat, 6 mm

8шт.

12

P152069

HANDLE

- half

4шт.

13

825-1406

NUT,M6, Cl 8

4шт.

14

P32549

SCREW

- handle, lower, 6 mm x 16 mm

4шт.

15

P34107

NUT - hex, 4 mm, order from Deutz

4шт.

16

P32530

SCREW

- handle, upper, 4 mm x 10 mm

4шт.

17

P1027977

PIN

- pivot

2шт.

18

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

(Replaces bolt P33808) Hex, M6 x 30, 8.8, Full Thd

2шт.

19

P3528799

WASHER

SPACER - bolt, 4 mm thick

8шт.

20

P1436931

CYLINDER ASSY.

ABSORBER - shock, left-hand console

1шт.

21

P827645

PIN

- shock absorber

2шт.

22

P35001

WASHER

- flat, 6 mm

4шт.

23

P35510

SPLIT PIN

PIN - cotter, 2 mm x 20 mm

4шт.

24

P152075

CONE

RETAINER - latch

1шт.

25

P34611

WASHER

- flat, 10 mm, retainer mounting

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

1шт.

27

P1352035

LOCK ASSY

LATCH - left-hand console

1шт.

28

P323672

HOOD

PLATE - latch mounting, lower

1шт.

29

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

4шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

31

P852064

HANDLE

- latch

1шт.

32

P1027968

CLEVIS

CONNECTOR - at handle

1шт.

33

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

1шт.

34

P35002

WASHER

- flat, 8 mm

2шт.

35

P741463

STOP

BUMPER - left-hand console

1шт.

36

P3528794

WASHER

SPACER - bumper mounting, 6 mm thick

1шт.

37

P34113

NUT

- hex, 8 mm Continued on next figure

1шт.
