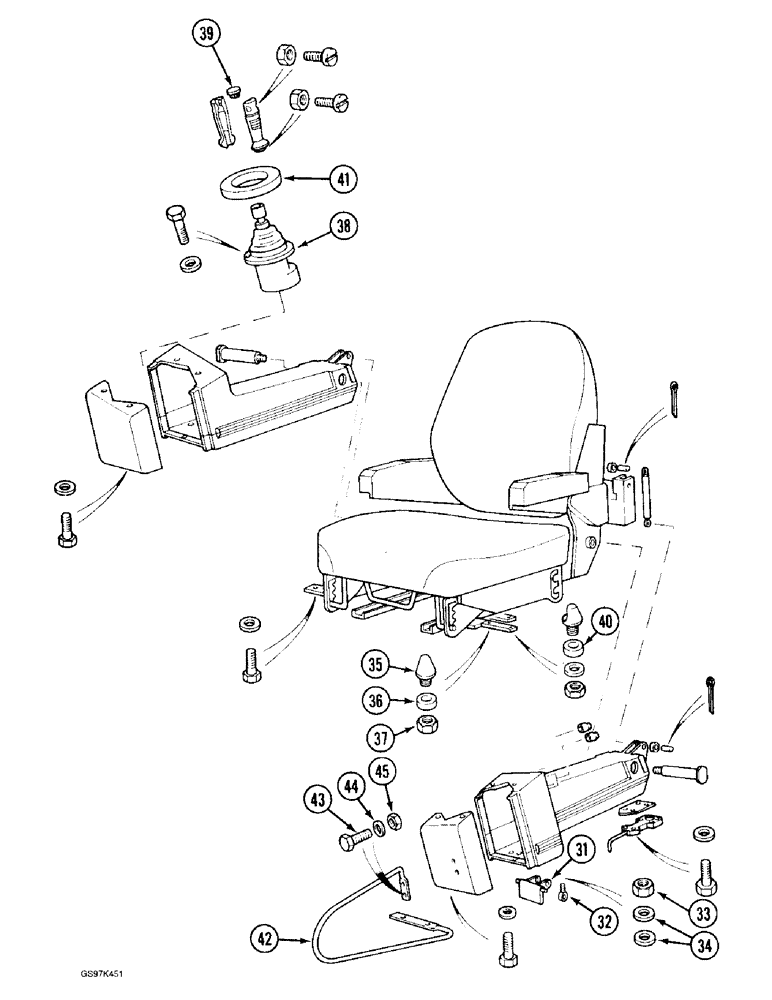

Запчасти Case 170C (9-032) - HAND CONTROL VALVE CONSOLES, P.I.N. 74501 THROUGH 74634 (09) - CHASSIS

31

P852064

HANDLE

- latch

1шт.

32

P1027968

CLEVIS

CONNECTOR - at handle

1шт.

33

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

1шт.

34

P35002

WASHER

- flat, 8 mm

2шт.

35

P741463

STOP

BUMPER - left-hand console

1шт.

36

P3528794

WASHER

SPACER - bumper mounting, 6 mm thick

1шт.

37

P34113

NUT

- hex, 8 mm

1шт.

38

REF

INSTRUCTION

VALVE ASSEMBLY - control, hand, parts list Figure 8-124 or 8-126

2шт.

39

P2537472

PLASTIC PLUG

PLUG - control handle

2шт.

40

P34614

WASHER

- flat, 14 mm

1шт.

41

P7230184

PROTECTOR

RING - rubber, hand control valve

2шт.

42

P2130670

BAR

HANDLE - lift, left-hand console, if used

1шт.

43

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads, If used (Replaces bolt P33809) Hex, M6 x 20, 8.8

2шт.

44

P3528799

WASHER

SPACER - bolt, 4 mm thick, if used

2шт.

45

832-10406

NUT,M6 x 1, Cl 8

LOCK, , if used (Replaces nut P234513) M6 x 1, Cl 8

2шт.
