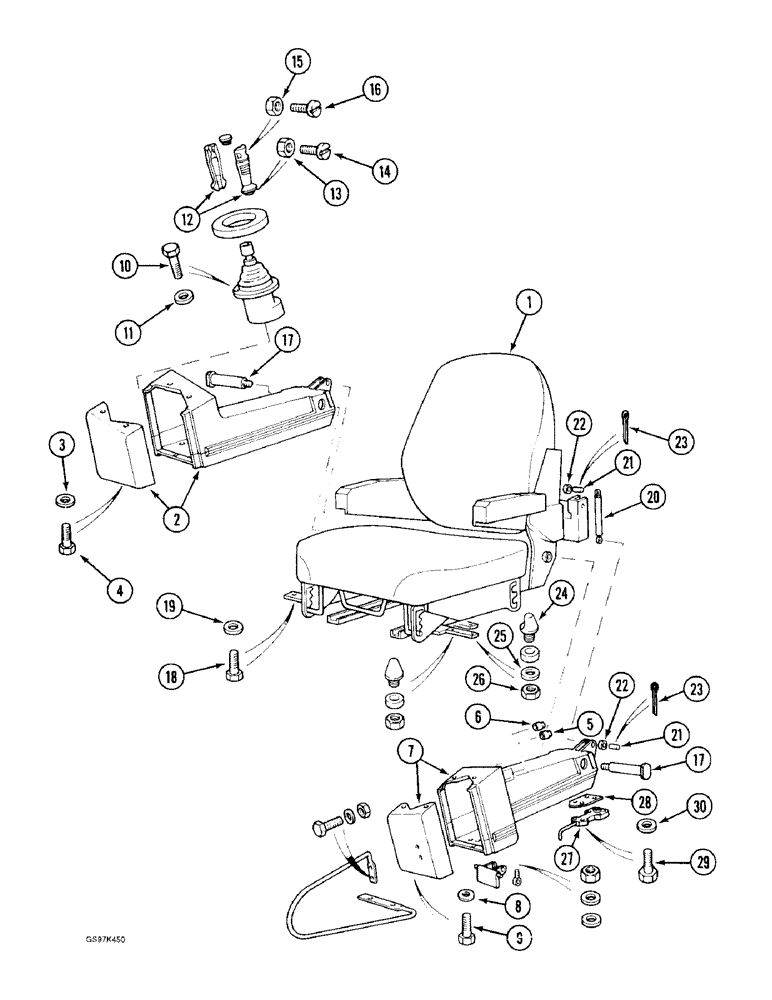

Запчасти Case 170C (9-030) - HAND CONTROL VALVE CONSOLES, P.I.N. 74501 THROUGH 74634 (09) - CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator’s, parts list Figure 9-26 or 9-28

1шт.

P4842738

CASE

HOUSING ASSEMBLY - console, right-hand, no longer available, order console P5242763, spacer P3528799, item 30, nut 832-10406, item 45 on Figure 9-32 & 9-34 and bolt 614-6030, Includes: Ref. 2-9

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - right-hand console, order housing assembly P4842738

1шт.

3

P35001

WASHER

- flat, 6 mm

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

1шт.

5

P1737419

PLUG

- plastic, left-hand console

2шт.

6

P1737425

PLASTIC PLUG

PLUG - plastic, left-hand console

2шт.

P4842739

CASE

HOUSING ASSEMBLY - console, left-hand, no longer available, order console P5242764, spacer P3528799, item 30, plate P323672, item 28, bolt P733035, item 29, nut 832-10406, item 45 on Figure 9-32 & 9-34, lock P1352035 and plate P2023290

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - left-hand console, order housing assembly P4842739

1шт.

8

P35001

WASHER

- flat, 6 mm

1шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

1шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

8шт.

11

P35001

WASHER

- flat, 6 mm

8шт.

12

P152069

HANDLE

- half

4шт.

13

825-1406

NUT,M6, Cl 8

4шт.

14

P32549

SCREW

- handle, lower, 6 mm x 16 mm

4шт.

15

P34107

NUT - hex, 4 mm, order from Deutz

4шт.

16

P32530

SCREW

- handle, upper, 4 mm x 10 mm

4шт.

17

P1027977

PIN

- pivot

2шт.

18

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

19

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

20

P1436931

CYLINDER ASSY.

ABSORBER - shock, left-hand console

1шт.

21

P827645

PIN

- shock absorber

2шт.

22

P35001

WASHER

- flat, 6 mm

4шт.

23

P35510

SPLIT PIN

PIN - cotter, 2 mm x 20 mm

4шт.

24

P152075

CONE

RETAINER - latch

1шт.

25

P34611

WASHER

- flat, 10 mm, retainer mounting

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

1шт.

27

P852065

LOCK ASSY

LATCH - left-hand console

1шт.

28

P323672

HOOD

PLATE - mounting

1шт.

29

P733035

SCREW

BOLT - hex, 6 mm x 35 mm

4шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick Continued on next figure

4шт.
