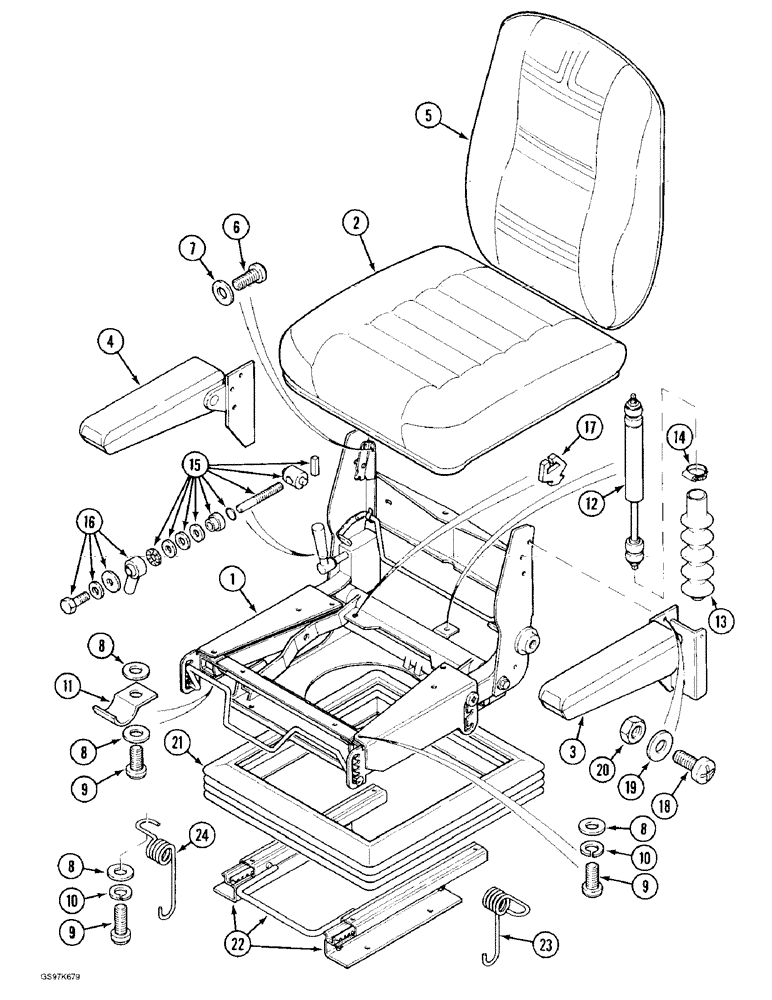

Запчасти Case 170C (9-029A) - SEAT (09) - CHASSIS

P2047055

SEAT

ASSEMBLY - operator’s, Includes: Ref. 1-24

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - seat, order seat assembly P2047055

1шт.

2

P2047058

CUSHION

- seat bottom

1шт.

3

P2047062

ARMREST

- seat, left-hand

1шт.

4

P2047061

ARMREST

- seat, right-hand

1шт.

5

P2047057

BACKREST

CUSHION - seat back

1шт.

6

P3533089

SCREW

BOLT - seat back

4шт.

7

P34609

WASHER

- seat bolt

4шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Base M6

10шт.

9

P32572

SCREW

BOLT - clamp

10шт.

10

P34707

WASHER

- cushion mounting bolt

8шт.

11

P2726674

SUPPORT

CLAMP - rod

2шт.

12

P1343227

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

13

P1340448

BELLOWS

BOOT - shock absorber

1шт.

14

P36998

COLLAR CLAMP

CLAMP - boot

1шт.

15

P4441474

SPARE PART SET

KIT - seat spare parts

1шт.

16

P2047059

PAWL

- seat

1шт.

17

P641436

STOP

- seat

2шт.

18

P1047064

BOLT

BOLT - shock absorber hardware

2шт.

19

P34709

WASHER

- bolt

2шт.

20

P34113

NUT

- hex

2шт.

21

P3240443

BELLOWS

COVER - suspension mechanism

1шт.

22

P2047060

SET

KIT - track, right-hand and left-hand

1шт.

23

P1038283

SPRING

- left-hand side

1шт.

24

P1038284

SPRING

- right-hand side

1шт.
