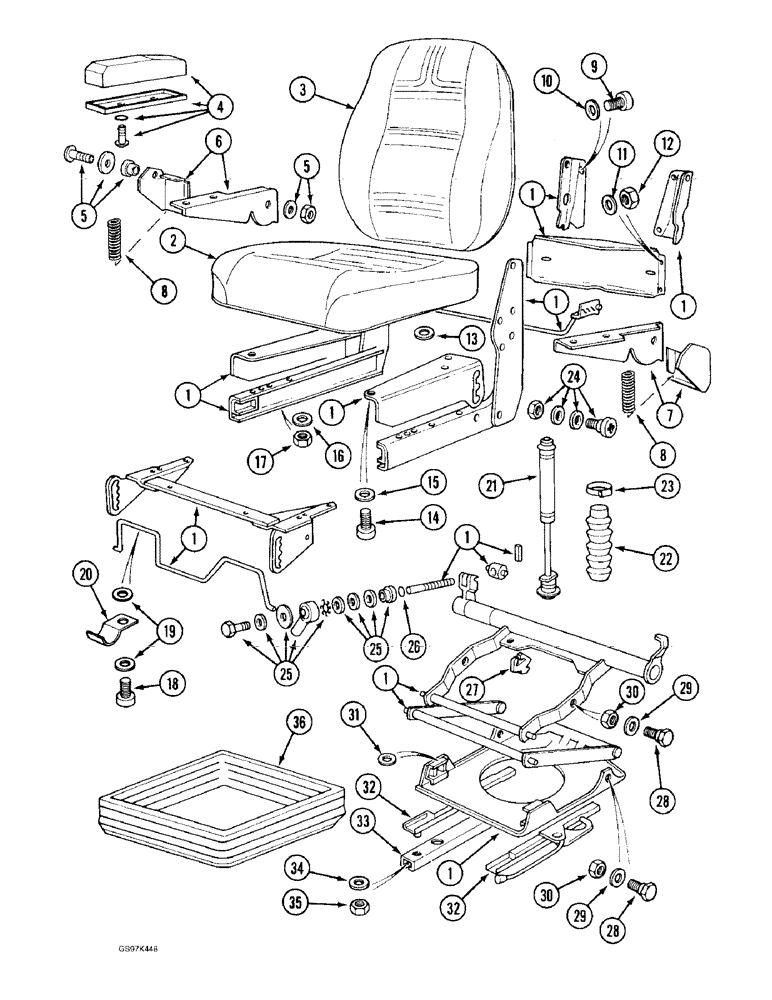

Запчасти Case 170C (9-026) - SEAT, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02329 (09) - CHASSIS

P1347047

SEAT

ASSEMBLY - operator’s, no longer available, order seat assembly P2047055, parts list Figure 9-29A, Includes: Ref. 1-36

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - seat, order seat assembly P1347047

1шт.

2

P1347059

CUSHION

- seat bottom, no longer available, order cushion P2047058, cushion P2047057, washer 892-11006 and bolt P32572, items 2, 5, 8 and 9 on Figure 9-29A

1шт.

3

P1347058

BACKREST

CUSHION - seat back, no longer available, order cushion P2047058, cushion P2047057, washer 892-11006 and bolt P32572, items 2, 5, 8 and 9 on Figure 9-29A

1шт.

P1347080

ARMREST

ASSEMBLY - seat, right-hand, no longer available, order armrest P2047060, item 22 on Figure 9-29A

1шт.

P1347079

ARMREST

ASSEMBLY - seat, left-hand, no longer available, order armrest P2047062 on Figure 9-29A

1шт.

4

P1347060

SET

ARMREST - seat, includes base and mounting hardware, no longer available, order armrest P2047061 or P2047062 on Figure 9-29A, Includes: Ref. 4-8

1шт.

5

P1347061

SET OF PARTS

KIT - armrest pivot rachet, no longer available, order armrest P2047061 or P2047062 on Figure 9-29A

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET AND RACHET - armrest, right-hand, order armrest assembly P1347080

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET AND RACHET - armrest, left-hand, order armrest assembly P1347079

1шт.

8

P38288

SPRING

- armrest

1шт.

9

P1232917

SCREW

BOLT - seat back

4шт.

10

P34609

WASHER

- seat bolt

4шт.

11

P34609

WASHER

- stud

4шт.

12

P1334581

NUT

- stud

4шт.

13

P35001

WASHER

- flat, 6 mm

4шт.

14

P1232916

SCREW

BOLT -, Serial Range: frame-cushion

4шт.

15

P35001

WASHER

- flat, 6 mm

4шт.

16

P34609

WASHER

- seat frame stud

4шт.

17

P34201

NUT

- seat frame stud

4шт.

18

P1232916

SCREW

BOLT - clamp

2шт.

19

P35001

WASHER

- flat, 6 mm

4шт.

20

P2726674

SUPPORT

CLAMP - rod

2шт.

21

P1343227

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

22

P1340448

BELLOWS

BOOT - shock absorber

1шт.

23

P36998

COLLAR CLAMP

CLAMP - boot

1шт.

24

P1047064

BOLT

KIT - hardware, shock absorber

1шт.

25

P1047062

PAWL

- seat

1шт.

26

P336318

RING, SNAP

RING - retaining

1шт.

27

P641436

STOP

- seat

2шт.

28

P1533038

SCREW

BOLT - special

4шт.

29

P35004

WASHER

- special bolt

4шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

31

P34609

WASHER

- lower plate

4шт.

32

P1047063

SET

TRACK - set, right-hand and left-hand, no longer available, order track P2047060, item 22 on Figure 9-29A

1шт.

33

P348301

BLOCK

RAIL - lower

2шт.

34

P35002

WASHER

- track stud

4шт.

35

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

4шт.

36

P2340465

BELLOWS

COVER - suspension mechanism

1шт.
