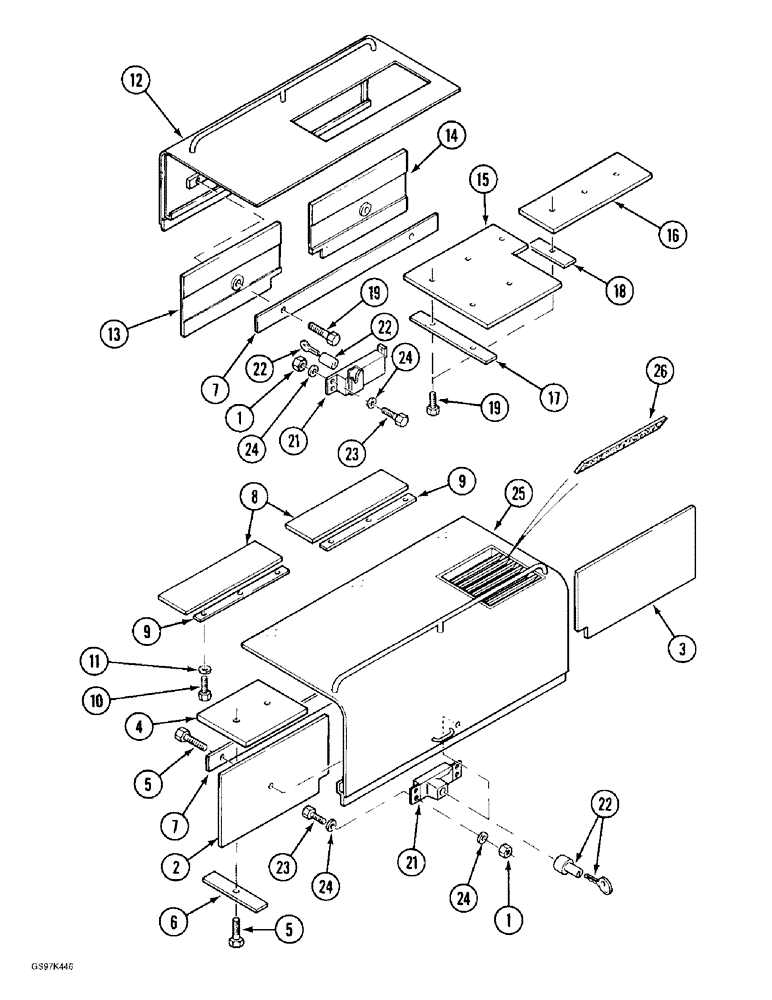

Запчасти Case 170C (9-022) - SIDE ACCESS COVERS, P.I.N. 02328 AND AFTER (09) - CHASSIS

1

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

8шт.

2

P3441428

LARGE PLATE

INSULATION - left-hand cover, side, front

1шт.

3

P3441429

LARGE PLATE

INSULATION - left-hand cover, side, rear

1шт.

4

P3441430

LARGE PLATE

INSULATION - left-hand cover, top, front

2шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, insulation to cover (Replaces bolt P33815)

6шт.

6

P6722745

PLATE

STRIP - retainer, insulation, left-hand top

4шт.

7

P3122833

PLATE

STRIP - retainer, insulation, cover, right-hand and left-hand side

2шт.

8

P3441431

LARGE PLATE

INSULATION - left-hand cover, top

2шт.

9

P3122815

PLATE

RETAINER - insulation, top

2шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, insulation retainer (Replaces bolt P33815)

6шт.

11

P3528794

WASHER

SPACER - retainer bolt, 6 mm

6шт.

12

P8043802

SHUTTER

COVER - engine access, right-hand

1шт.

13

P3441429

LARGE PLATE

INSULATION - right-hand cover, side, front

1шт.

14

P3441428

LARGE PLATE

INSULATION - right-hand cover, side, rear

1шт.

15

P3441432

LARGE PLATE

INSULATION - right-hand cover, top, front

1шт.

16

P3441427

LARGE PLATE

INSULATION - right-hand cover, top, rear

1шт.

17

P3122832

PLATE

STRIP - retainer, insulation, right-hand top, long

2шт.

18

P6722744

PLATE

STRIP - retainer, insulation, right-hand top, short

4шт.

19

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, retainer strip to cover (Replaces bolt P33815)

10шт.

P1352001

LOCK ASSY

BRACKET AND LOCK ASSEMBLY - engine access cover

2шт.

21

NSS

NOT SOLD SEPARAT

BRACKET AND LOCK - engine access cover, order assembly P1352001, Includes: Ref. 21, 22

1шт.

22

P152083

LOCK, CYLINDER

CYLINDER ASSEMBLY - lock, Includes: P1352009

1шт.

P1352009

KEY

- cylinder lock

1шт.

23

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

8шт.

24

P3528794

WASHER

SPACER - bolt to cover and lock assembly, 6 mm

16шт.

P8443837

SHUTTER

COVER ASSEMBLY - engine access, left-hand, Includes: Ref. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - engine access, left-hand, order cover assembly P8443837

1шт.

26

P3841465

FOAM

INSULATION - left-hand cover

6шт.
