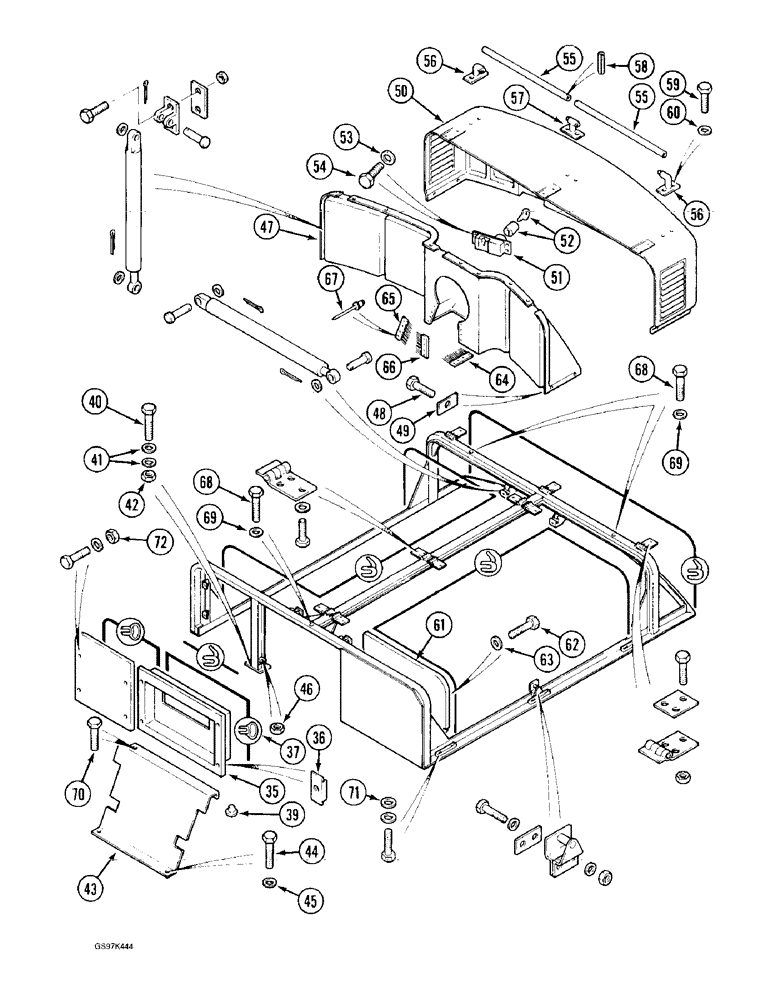

Запчасти Case 170C (9-018) - SHROUD FRAME AND REAR ENGINE COVER (09) - CHASSIS

P7043891

PANEL

COVER ASSEMBLY - front access, center, Includes: Ref. 2, 3

1шт.

35

NSS

NOT SOLD SEPARAT

COVER - front access, center, order cover assembly P7043891

1шт.

36

P51922

LATCH

BRACKET - mounting, cover

4шт.

37

REF

INSTRUCTION

SEAL - center access cover, 1700 mm (66-15/16 inch) long, cut from bulk seal P3109 below

1шт.

39

P741401

STOP

MOUNT - isolation

2шт.

40

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, shroud frame, front (Replaces bolt P933818)

2шт.

41

P3528795

WASHER

SPACER - frame bolt

4шт.

42

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Frame bolt (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

43

P3126325

COWL

COVER - hydraulic swivel

1шт.

44

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Swivel and Access Covers (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

2шт.

45

P3528795

WASHER

SPACER - cover bolt

2шт.

46

P1334560

NUT

- cover bolt

2шт.

47

P4540394

VENT MANIFOLD

SHROUD - engine rear

1шт.

48

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Engine Shroud (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

20шт.

49

P1523469

PLATE

- shroud bolt

20шт.

50

P7543838

COWL

SHROUD - access, rear

1шт.

P1352001

LOCK ASSY

BRACKET AND LOCK ASSEMBLY - rear shroud, Includes: Ref. 51, 52

2шт.

51

NSS

NOT SOLD SEPARAT

BRACKET AND LOCK - rear shroud, order assembly P1352001

1шт.

52

P152083

LOCK, CYLINDER

CYLINDER ASSEMBLY - lock, Includes: P1352009

1шт.

P1352009

KEY

- cylinder lock

1шт.

53

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

8шт.

54

P3528794

WASHER

SPACER - shroud lock bolt

8шт.

55

P1348212

GRAB RAIL

HANDLE - assist, rear

2шт.

56

P104158

END FITTING

BRACKET - assist handle, outside

2шт.

57

P104159

SUPPORT

BRACKET - assist handle, center

1шт.

58

P35730

SPLIT PIN/SAFETY PIN

PIN - roll, Serial Range: handle-bracket

4шт.

59

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Assist handle brackets to shroud Hex, M12 x 35, 8.8, Full Thd

6шт.

60

P828507

WASHER

SPACER - bracket bolt

6шт.

61

P3441433

LARGE PLATE

INSULATION - front, left-hand side

1шт.

62

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, insulation to frame (Replaces bolt P33815)

2шт.

63

P1145471

WASHER

- insulation bolt

2шт.

64

P8846032

SEAL

PAD - insulation

2шт.

65

P8846033

SEAL

PAD - insulation

1шт.

66

P8846034

SEAL

PAD - insulation

1шт.

67

P35418

RIVET

- pop, pad

12шт.

68

P33869

BOLT,Hex, M14 x 30

Shroud frame Hex, M14 x 30

3шт.

69

P35005

WASHER

- flat, 14 mm

3шт.

70

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Swivel and access covers (Replaces bolt P33826) Hex, M10 x 20, 8.8, Full Thd

2шт.

71

P35023

WASHER

- flat, 14 mm

12шт.

72

P1334560

NUT

- cover bolt

4шт.

P3109

GASKET

SEAL - bulk, sold by the meter

1шт.
