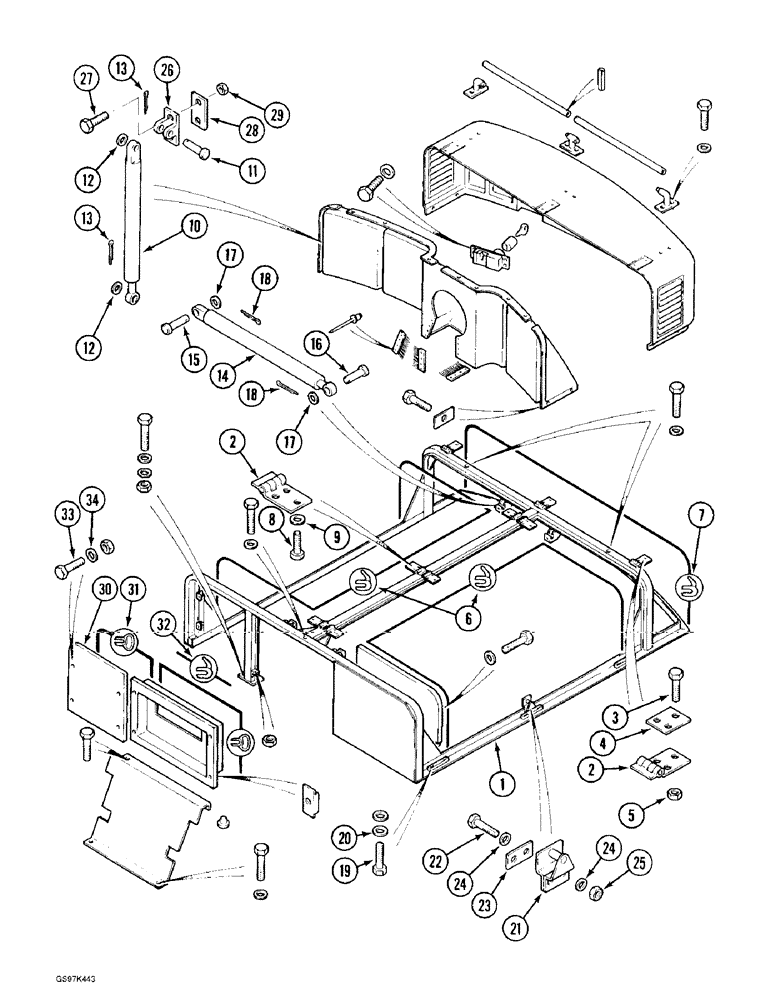

Запчасти Case 170C (9-016) - SHROUD FRAME AND REAR ENGINE COVER (09) - CHASSIS

P8443816

FRAMEWORK

FRAME ASSEMBLY - engine shroud and cover, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - engine shroud and cover, order frame assembly P8443816

1шт.

2

P36684

HINGE

- access, Serial Range: covers-frame

9шт.

3

615-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

Rear shroud hinge to frame (Replaces bolt P933833) Hex, M14 x 45, 8.8, Full Thd

9шт.

4

P523280

PLATE

- support, rear shroud hinge

3шт.

5

P134549

SAFETY NUT

NUT - hex, hinge bolt

9шт.

6

REF

INSTRUCTION

SEAL - engine access covers, 5200 mm (204-3/4 inch) long, cut from bulk seal P303153 below

2шт.

7

REF

INSTRUCTION

SEAL - rear shroud to frame, 5900 mm (232-1/4 inch) long, cut from bulk seal P303153 below

1шт.

8

613-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 14 - 2.0 x 35 mm

18шт.

9

P3528792

WASHER

SPACER - hinge bolt, 10 mm

18шт.

10

P1036927

GAS STRUT

CYLINDER - rear shroud support

2шт.

11

P2327822

PIN

-, Serial Range: cylinder-shroud

2шт.

12

P35002

WASHER

- flat, cylinder pin

4шт.

13

P35510

SPLIT PIN

PIN - cotter, cylinder pin

4шт.

14

P3036949

GAS STRUT

CYLINDER - support, engine access cover

4шт.

15

P2327822

PIN

-, Serial Range: cylinder-cover

4шт.

16

P1127815

PIN

-, Serial Range: cylinder-frame

4шт.

17

P35002

WASHER

- flat, 8 mm, cylinder pin

8шт.

18

P35510

SPLIT PIN

PIN - cotter, cylinder pin

8шт.

19

814-14060

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

frame to turntable (Replaces bolt P633005) Hex, M14 x 60, 8.8

12шт.

20

P4328732

WASHER

SPACER - frame bolt

12шт.

21

P152082

CATCH PLATE

LATCH - engine access, Serial Range: cover-frame

4шт.

22

P233830

SCREW

BOLT -, Serial Range: latch-frame

8шт.

23

P1722830

PLATE

- spacer, latch

4шт.

24

P3528794

WASHER

SPACER - bolt, 6 mm thick

16шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

8шт.

26

P4128118

CLEVIS

BRACKET - mounting, support cylinder

2шт.

27

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Support Bracket (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

4шт.

28

P922865

PLATE

- spacer, bracket

2шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Bracket bolt (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

30

P7043829

PANEL

COVER - access, front right-hand

1шт.

31

REF

INSTRUCTION

SEAL - cover, 1800 mm (70-7/8 inch) long, cut from bulk seal P3109 below

1шт.

32

REF

INSTRUCTION

SEAL - cover, 500 mm (19-11/16 inch) long, cut from bulk seal P303111 below

1шт.

33

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Front access cover Hex, M10 x 30, 8.8

4шт.

34

P3528795

WASHER

SPACER - cover bolt, 7 mm thick

4шт.

P303153

SEAL

- bulk, sold by the meter

1шт.

P3109

GASKET

SEAL - bulk, sold by the meter

1шт.

P303111

SEAL

- bulk, sold by the meter Continued on next figure

1шт.
