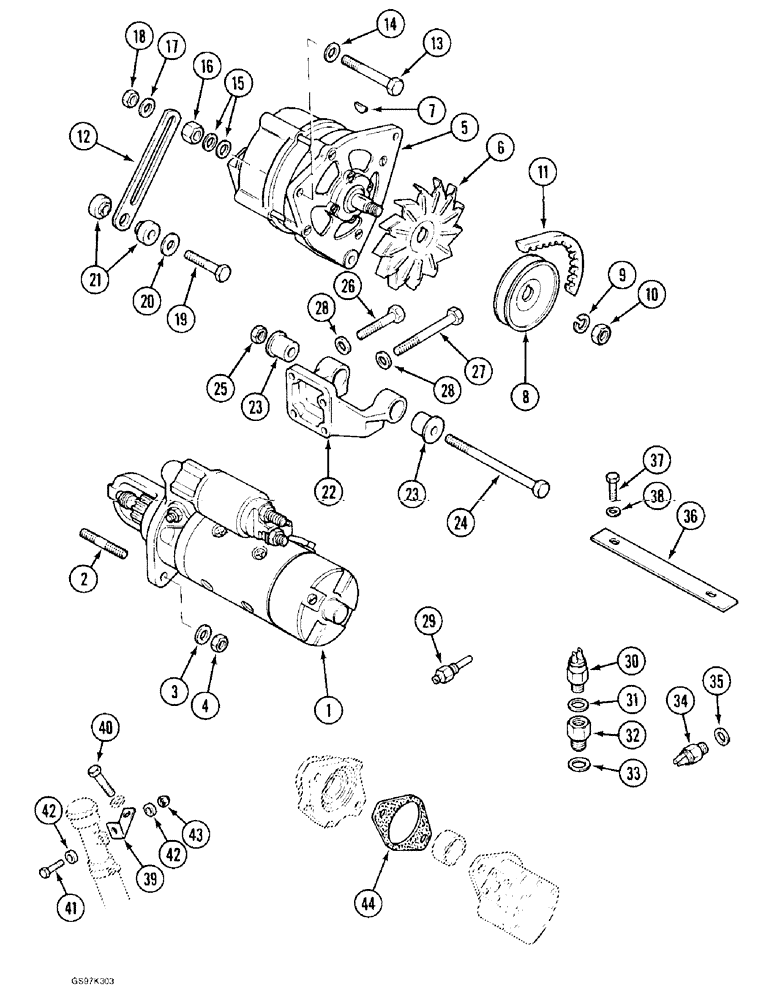

Запчасти Case 170C (2-8) - ENGINE MOUNTED COMPONENTS AND ADAPTING PARTS (02) - ENGINE

1

P241521

DEUTZ PART

STARTER ASSEMBLY - engine, parts list Figure 4-6

1шт.

2

P1527766

DEUTZ PART

STUD - starter mounting

3шт.

3

P34734

WASHER

- special, studs, order from Deutz

3шт.

4

825-1410

NUT,M10, Cl 8

(Replaces nut P34166) M10, Cl 8

3шт.

5

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-8

1шт.

6

P3743217

FAN

- alternator

1шт.

7

P236143

DEUTZ PART

KEY - fan and pulley to shaft, order from Deutz

1шт.

8

P238557

DEUTZ PART

PULLEY - alternator (Replaces pulley P1538568)

1шт.

9

P34745

WASHER

- lock, shaft nut, order from Deutz

1шт.

10

P1037466

DEUTZ PART

NUT - special, alternator shaft (Replaces nut P1037469)

1шт.

11

P938768

BELT

- alternator drive

1шт.

12

P2228245

DEUTZ PART

STRAP - alternator adjusting, order from Deutz

1шт.

13

P32649

SCREW

BOLT - hex, 8 mm x 55 mm, Serial Range: strap-alternator

1шт.

14

P1145443

DEUTZ PART

WASHER - special, alternator bolt, order from Deutz

1шт.

15

P1045302

DEUTZ PART

SPACER - strap to alternator, order from Deutz

1шт.

16

P5428738

SPACER

NUT - alternator strap

1шт.

17

P1545425

DEUTZ PART

WASHER - special, alternator strap, order from Deutz

1шт.

18

P34113

NUT

- hex, 8 mm

1шт.

19

P133884

SCREW

BOLT - hex, 8 mm x 35 mm, Serial Range: strap-engine

1шт.

20

P1145443

DEUTZ PART

WASHER - special, strap to engine, order from Deutz

1шт.

21

P2541488

DEUTZ PART

BUSHING - alternator strap, order from Deutz

2шт.

P3743218

BRACKET

ASSEMBLY - alternator mounting, Includes: Ref. 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - alternator mounting, order bracket assembly P3743218

1шт.

23

P741491

DEUTZ PART

BUSHING - alternator bracket, order from Deutz

2шт.

24

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

- hex, 8 - 1.25 x 120 mm, bracket to alternator (Replaces bolt P133866)

1шт.

25

P34113

NUT

- hex, 8 mm, alternator bolt

1шт.

26

P133884

SCREW

BOLT - hex, 8 mm x 35 mm, Serial Range: bracket-engine

3шт.

27

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm, Bracket to engine (Replaces bolt P133849)

1шт.

28

P1145443

DEUTZ PART

SPACER - special, bracket mounting bolt, order from Deutz

4шт.

29

P3543298

GAUGE

SENDER - engine temperature warning, see page 4-5 for electrical harness

1шт.

30

P1241856

SWITCH

SENDER - engine oil pressure, see page 4-5 for electrical harness

1шт.

31

P28429

COMPOSITE SEAL

SEAL - oil pressure, Serial Range: sender-adapter

1шт.

32

P1037310

RESTRICTOR

ADAPTER -, Serial Range: sender-engine

1шт.

33

P545297

COPPER SEAL

SEAL - adapter

1шт.

34

P641594

DEUTZ PART

SENDER - engine oil pressure for hourmeter, see page 4-5 for electrical harness, order from Deutz

1шт.

35

P45239

WASHER, SEALING

SEAL -, Serial Range: sender-engine

1шт.

36

P3523158

SUPPORT

PLATE - support, harness

1шт.

37

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

38

P35002

WASHER

- flat, 8 mm

2шт.

39

P3226127

SUPPORT

BRACKET - mounting, oil filler tube

1шт.

40

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, plated, bracket to engine

1шт.

41

P133884

SCREW

BOLT - hex, 8 mm x 35 mm, filler, Serial Range: tube-bracket

1шт.

42

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

43

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

1шт.

44

P8846064

SEAL

- cooling fan drive adapter

1шт.

P3050138

DEUTZ PART

TUBE oil fill, in phantom at lower left corner of artwork

1шт.

P5931956

DEUTZ PART

HOSE oil fill, in phantom at lower left corner of artwork

1шт.

P737420

DEUTZ PART

CAP oil fill, in phantom at lower left corner of artwork

1шт.
