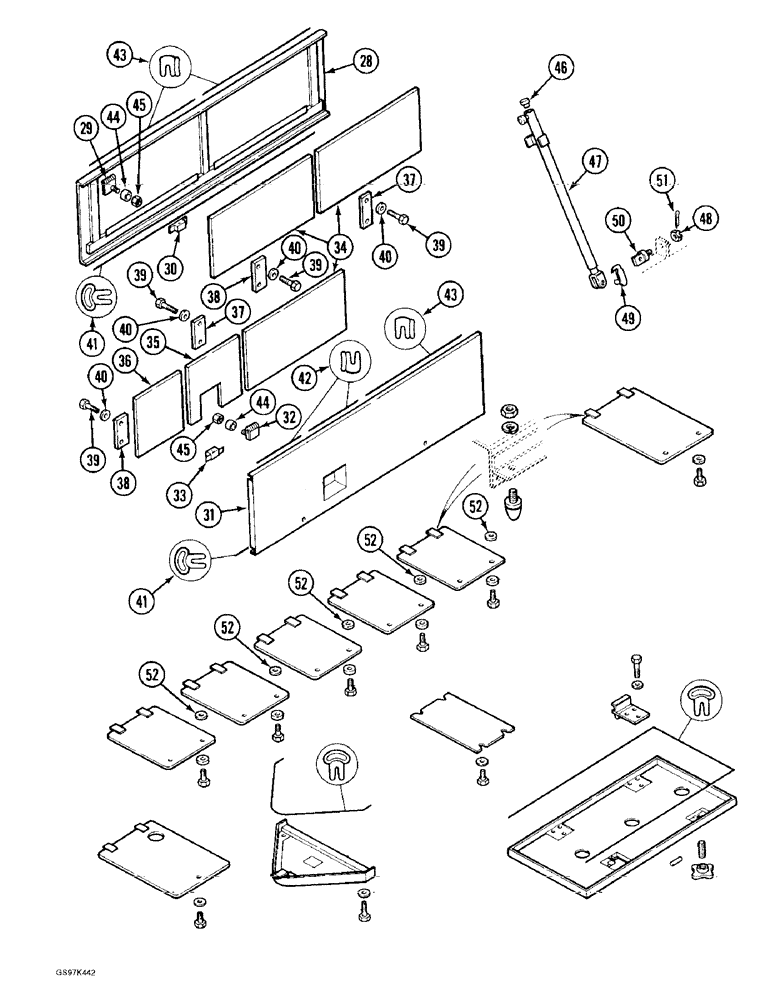

Запчасти Case 170C (9-014) - TURNTABLE LOWER ACCESS COVERS (09) - CHASSIS

P8143825

PANEL

DOOR ASSEMBLY - right-hand side, Includes: Ref. 28-33

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - right-hand side, order door assembly P8143825

1шт.

29

P736626

HINGE

- door

3шт.

30

P51922

LATCH

- door

2шт.

P8143824

PANEL

DOOR ASSEMBLY - left-hand side

1шт.

31

NSS

NOT SOLD SEPARAT

DOOR - left-hand side, order door assembly P8143824

1шт.

32

P736626

HINGE

- door

3шт.

33

P51922

LATCH

- door

2шт.

34

P3441424

LARGE PLATE

PAD - insulation, left-hand rear and right-hand door

3шт.

35

P3441426

LARGE PLATE

PAD - insulation, center, left-hand door

1шт.

36

P3441425

LARGE PLATE

PAD - insulation, front, left-hand door

1шт.

37

P2822821

PLATE

- retainer

3шт.

38

P3122817

LARGE PLATE

PLATE - retainer

4шт.

39

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, retainer (Replaces bolt P33815)

14шт.

40

P3528794

WASHER

SPACER - retainer bolt, 6 mm thick

14шт.

41

REF

INSTRUCTION

SEAL - door, 2200 mm (86-5/8 inch) long, cut from bulk seal P3109 below

2шт.

42

REF

INSTRUCTION

SEAL - door, 500 mm (19-11/16 inch) long, cut from bulk seal P303167 below

2шт.

43

REF

INSTRUCTION

SEAL - door, 900 mm (35-7/16 inch) long, cut from bulk seal P303167 below

3шт.

44

P3528795

WASHER

SPACER - door hinge, 7 mm thick

12шт.

45

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Door hinge (Replaces nut P34598) M10 x 1.5, Cl 8

12шт.

46

P1737425

PLASTIC PLUG

PLUG - snap in

4шт.

47

P736698

STAND

ROD - support, door

4шт.

48

P34307

NUT

- hinge pin

4шт.

49

P51954

LARGE PIN

RETAINER - rod to hinge pin

4шт.

50

P1027951

CLEVIS

PIN - hinge

4шт.

51

P35512

SPLIT PIN

PIN - cotter, hinge pin

4шт.

52

P34611

WASHER

- flat, 10 mm

10шт.

P3109

GASKET

SEAL - bulk, sold by the meter

1шт.

P303167

GASKET

SEAL - bulk, sold by the meter

1шт.
