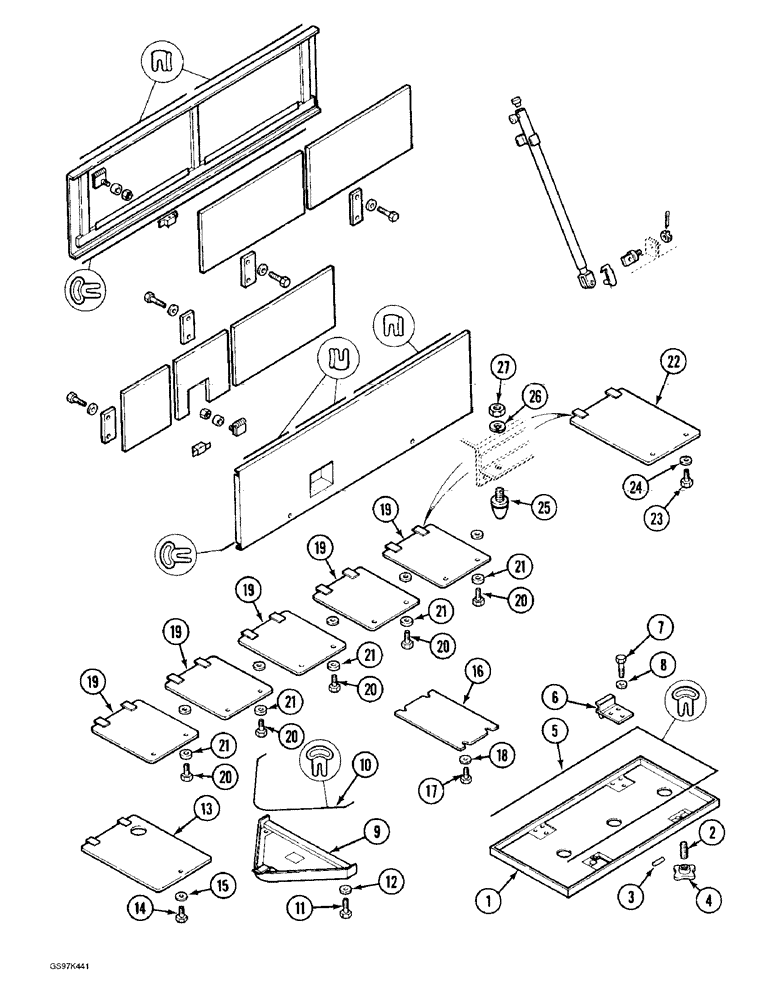

Запчасти Case 170C (9-012) - TURNTABLE LOWER ACCESS COVERS (09) - CHASSIS

P7543813

PANEL

COVER ASSEMBLY - center, Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - center, order cover assembly P7543813

1шт.

2

P727753

STEM

ROD - threaded

2шт.

3

P35731

SPLIT PIN/SAFETY PIN

PIN - roll, nut

4шт.

4

P834578

NUT

- hand twist

2шт.

5

REF

INSTRUCTION

SEAL - cover, 3500 mm (138 inch) long, cut from bulk seal P3109 below

1шт.

6

P2227105

JOINT

HINGE - cover

2шт.

7

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Cover hinge Hex, M12 x 35, 8.8, Full Thd

6шт.

8

P3528793

WASHER

SPACER - hinge bolt, 8 mm thick

6шт.

P7543812

PANEL

COVER ASSEMBLY - center front, Includes: Ref. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - center front, order cover assembly P7543812

1шт.

10

REF

INSTRUCTION

SEAL - cover, 1200 mm (47-1/4 inch) long, cut from bulk seal P3109 below

1шт.

11

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

Center cover (Replaces bolt P533846) Hex, M14 x 40, 8.8, Full Thd

2шт.

12

P3528792

WASHER

SPACER - cover bolt, 10 mm thick

2шт.

13

P5628237

HOOD

COVER - front, right-hand

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Front cover (Replaces bolt P33826) Hex, M10 x 20, 8.8, Full Thd

1шт.

15

P3528795

WASHER

SPACER - cover bolt, 7 mm thick

1шт.

16

P1245752

HOOD

COVER - rear, right-hand

4шт.

17

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Rear cover (Replaces bolt P33826) Hex, M10 x 20, 8.8, Full Thd

4шт.

18

P3528795

WASHER

SPACER - cover bolt, 7 mm thick

4шт.

19

P5028238

HOOD

COVER - front, left-hand

5шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Front covers (Replaces bolt P33826) Hex, M10 x 20, 8.8, Full Thd

10шт.

21

P3528795

WASHER

SPACER - cover bolt, 7 mm thick

10шт.

22

P4127133

HOOD

COVER - rear, left-hand

3шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Rear cover (Replaces bolt P33826) Hex, M10 x 20, 8.8, Full Thd

6шт.

24

P3528795

WASHER

SPACER - cover bolt, 7 mm thick

6шт.

25

P741463

STOP

- rubber, cover

18шт.

26

P4328795

WASHER

SPACER - stop, 6 mm thick

18шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

18шт.

P3109

GASKET

SEAL - bulk, sold by the meter Continued on next figure

1шт.
