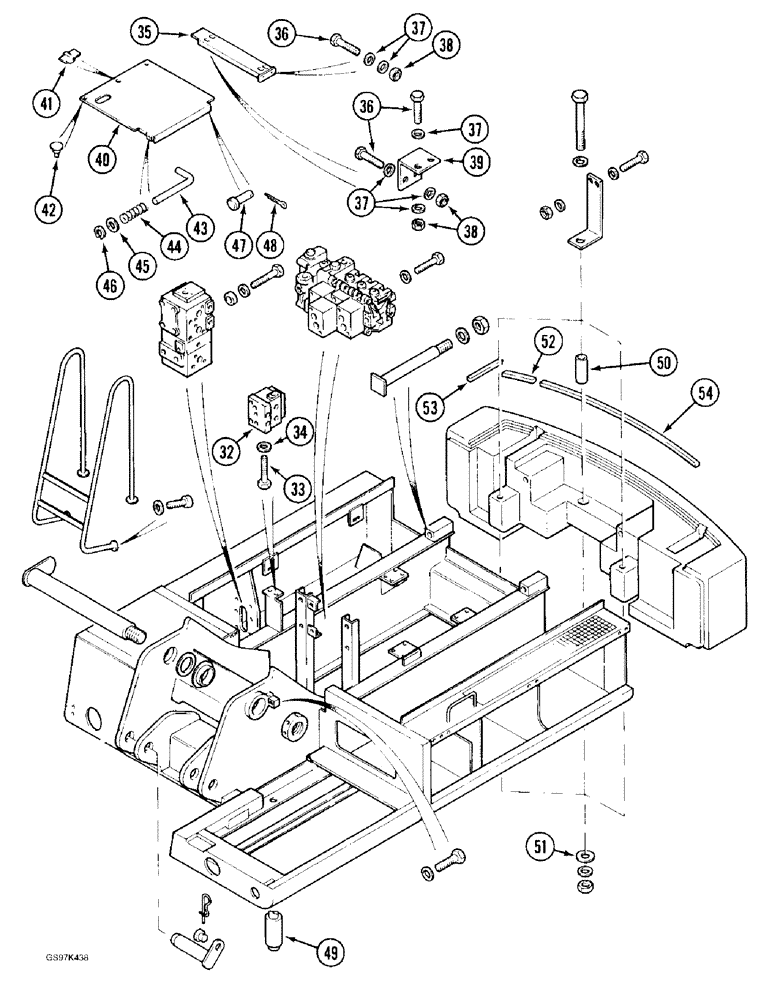

Запчасти Case 170C (9-006) - TURNTABLE AND COUNTERWEIGHT, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02370 (09) - CHASSIS

32

P3143338

BLOCK ASSY.

VALVE ASSEMBLY - power sensing, parts list Figure 8-138

1шт.

33

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Valve to turntable Hex, M10 x 30, 8.8

3шт.

34

P3528795

WASHER

SPACER - power sensing valve bolt

3шт.

35

P2254809

CROSSBAR

BRACKET - cover support

1шт.

36

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

Support bracket (Replaces bolt P833802) Hex, M10 x 50, 8.8

6шт.

37

P3528795

WASHER

SPACER - bracket bolt

12шт.

38

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Bracket bolt (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

39

P1831635

ANGLE

BRACKET - lower support

1шт.

P7743820

PANEL

COVER ASSEMBLY - access, turntable, Includes: Ref. 40-41

1шт.

40

NSS

NOT SOLD SEPARAT

COVER - turntable access, order cover assembly P7743820

1шт.

41

P51922

LATCH

LOCK - access cover

1шт.

42

P41434

STOP

- rubber, access cover

2шт.

43

P2130658

STEM

HANDLE - latch

1шт.

44

P38158

COMPRESSION SPRING

SPRING - handle

1шт.

45

P34613

WASHER

BLOCK - handle retaining

1шт.

46

800-1112

SNAP RING,M12, Ext

RING, SNAP, , Block (Replaces ring P36305) M12, Ext

1шт.

47

P50077

PIN

- cover

1шт.

48

P35522

SPLIT PIN

PIN - cotter, cover

1шт.

49

REF

INSTRUCTION

PIN - turntable locking, see Figure 9-40 for related parts

1шт.

50

P2031827

TUBE

SPACER - bolt

3шт.

51

P145346

WASHER

SPACER - bolt, 2 mm (0.08 inch)

1шт.

51

P2045417

WASHER

SPACER - bolt, 4 mm (0.16 inch)

1шт.

52

REF

INSTRUCTION

SEAL - counterweight to turntable, 300 mm (11-13/16 inch) long, cut from bulk seal P3195 below

2шт.

53

REF

INSTRUCTION

SEAL - counterweight to turntable, 400 mm (15-3/4 inch) long, cut from bulk seal P3195 below

2шт.

54

REF

INSTRUCTION

SEAL - counterweight to turntable, 1600 mm (63 mm) long, cut from bulk seal P3195 below

1шт.

P3195

GASKET

SEAL - bulk, sold by the meter

1шт.
