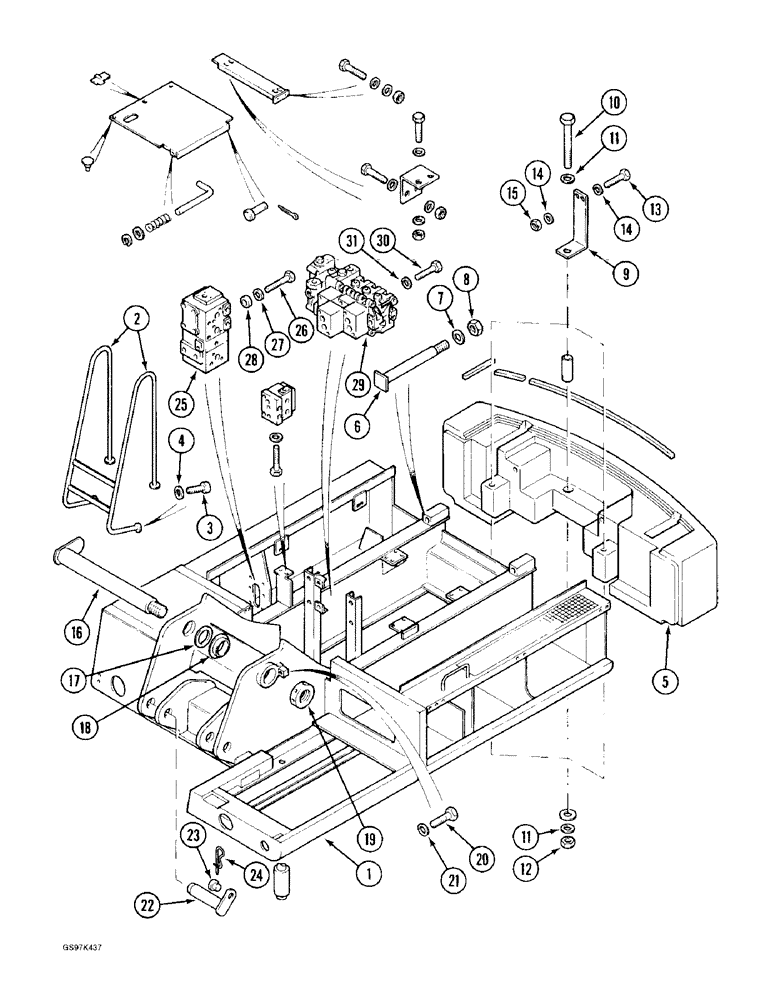

Запчасти Case 170C (9-004) - TURNTABLE AND COUNTERWEIGHT, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 THROUGH 02370 (09) - CHASSIS

1

P2254867

FRAME

TURNTABLE - excavator, no longer available

1шт.

2

P4247970

LADDER

- platform access

1шт.

3

814-14060

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

ladder to platform (Replaces bolt P633005) Hex, M14 x 60, 8.8

4шт.

4

P4328732

WASHER

SPACER - platform bolt

4шт.

5

P603815

BALANCER

COUNTERWEIGHT - rear

1шт.

6

P554821

TRUSS ROD

BOLT - counterweight to turntable, horizontal

2шт.

7

P1945333

WASHER

- flat, counterweight bolt

2шт.

8

P834544

SAFETY NUT

NUT - hex, self-locking, 39 mm, counterweight bolt

2шт.

9

P2325644

PLATE

BRACKET - center, counterweight

1шт.

10

P32784

SCREW

BOLT - hex, 39 mm x 350 mm, counterweight to turntable, vertical

3шт.

11

P946391

WASHER

SPACER - counterweight bolt

6шт.

12

P834544

SAFETY NUT

NUT - hex, self-locking, 39 mm, counterweight bolt

3шт.

13

P32688

SCREW

BOLT - hex, 14 mm x 50 mm, counterweight bracket

2шт.

14

P3528792

WASHER

SPACER - bracket bolt

4шт.

15

P34168

NUT

- hex, 14 mm, bracket bolt

2шт.

16

P2530994

HEADED PIN

PIN -, Serial Range: boom-turntable

1шт.

17

P1945387

WASHER

- flat, boom to turntable pin

1шт.

18

P251304

SEAL

- boom pin at turntable

2шт.

19

P1634569

NUT

RETAINER - boom pin

1шт.

20

P2033040

SCREW

BOLT - hex, 20 mm x 25 mm, pin retainer

1шт.

21

P4328747

WASHER

SPACER - retainer pin

1шт.

22

P2430966

PIVOT PIN

PIN - boom, Serial Range: cylinder-turntable

2шт.

23

P50053

SHAFT LOCK

PIN - lock, boom cylinder pin, Serial Range: welded-turntable

2шт.

24

P36020

SPLIT PIN/SAFETY PIN

PIN - hair, pin retainer

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - swing and drive control, parts list Figures 8-112 through 8-118

1шт.

26

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

Valve to turntable, Replaces bolt P433839 Hex, M16 x 65, 8.8

4шт.

27

P4328733

WASHER

SPACER - bolt, outer

4шт.

28

P3528790

WASHER

SPACER - bolt, inner

4шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, parts list Figures 8-100 through 8-110

1шт.

30

P433830

SCREW

BOLT - hex, 18 mm x 40 mm, attachment, Serial Range: valve-turntable

4шт.

31

P3528791

WASHER

SPACER - attachment valve bolt Continued on next figure

4шт.
