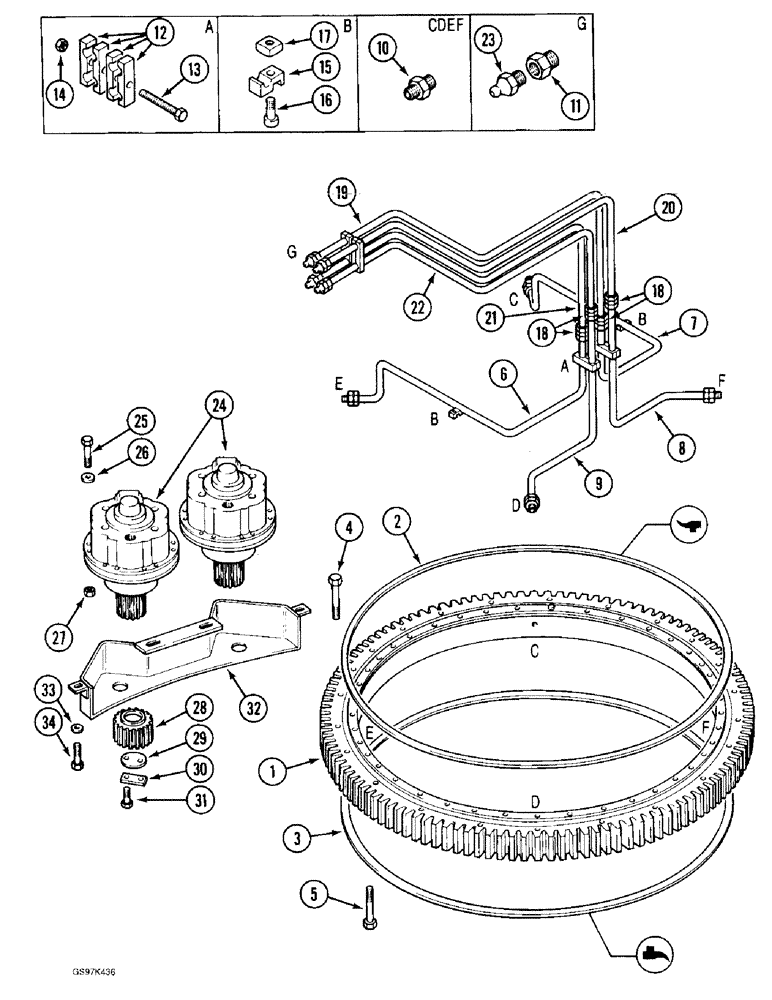

Запчасти Case 170C (9-002) - TURNTABLE BEARING AND LUBRICATION LINES (09) - CHASSIS

P739986

SLEWING RING

BEARING ASSEMLBY - turntable, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - turntable, order bearing assembly P739986

1шт.

2

P2046071

SEAL

- upper

1шт.

3

P2046072

SEAL

- lower

1шт.

4

P1633808

SCREW

BOLT - hex, 24 mm x 140 mm, class 10.9, bearing mounting, upper

24шт.

5

P1633808

SCREW

BOLT - hex, 24 mm x 140 mm, class 10.9, bearing mounting, lower

28шт.

6

P6749182

PIPE

TUBE - lubrication, lower

1шт.

7

P6749181

PIPE

TUBE - lubrication, lower

1шт.

8

P8347669

PIPE

TUBE - lubrication, lower

1шт.

9

P8347668

PIPE

TUBE - lubrication, lower

1шт.

10

P4037585

UNION

ADAPTER ASSEMBLY - lubrication line to bearing, Includes: P2230441

4шт.

P2230441

SEAL

- adapter

1шт.

11

P4037594

END FITTING

ADAPTER - tube

4шт.

12

P4620391

SHIN

CLAMP - double tube

8шт.

13

P133084

SCREW

BOLT - 12 mm x 110 mm, tube clamp

2шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Tube clamp (Replaces nut P34596) M12 x 1.75, Cl 8

2шт.

15

P404291

SHIN

CLAMP - single tube

2шт.

16

P32941

SCREW

BOLT - hex socket, 12 mm x 25 mm, tube clamp

2шт.

17

825-1410

NUT,M10, Cl 8

Tube clamp (Replaces nut P834551) M10, Cl 8

2шт.

18

P3237535

UNION

ADAPTER - lubrication tube

4шт.

19

P6249061

PIPE

TUBE - lubrication, upper

1шт.

20

P6249064

PIPE

TUBE - lubrication, upper

1шт.

21

P6249063

PIPE

TUBE - lubrication, upper

1шт.

22

P6249062

PIPE

TUBE - lubrication, upper

1шт.

23

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

4шт.

24

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figure 8-156 or 8-158

2шт.

25

P1133884

SCREW

BOLT - hex, 16 mm x 80 mm, class 10.9, swing motor mounting

28шт.

26

P4328746

WASHER

SPACER - motor mounting bolt, 11 mm

28шт.

27

P134547

SAFETY NUT

NUT - hex, self-locking, 16 mm, motor mounting bolt

28шт.

28

P3739376

PINION

GEAR - swing motor

2шт.

29

P130159

WASHER

PLATE - gear retainer

2шт.

30

P22804

BRAKE

PLATE - bolt locking

2шт.

31

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Gear Retainer (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

4шт.

32

P4540382

HOUSING

COVER - gear

2шт.

33

P3528793

WASHER

SPACER - cover bolt, 8 mm

4шт.

34

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, Gear cover (Replaces bolt P33840)

4шт.
