Артикул
Название
Примечание
Количество

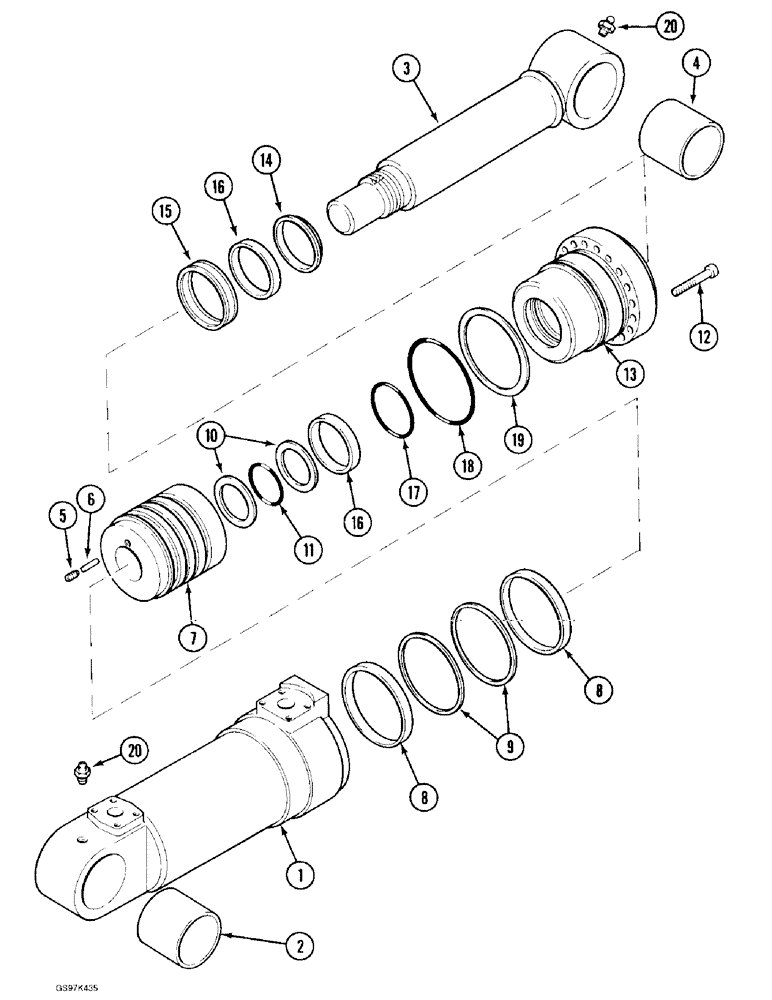

P8346711
CYLINDER ASSY.
CYLINDER ASSEMBLY - arm, Includes: P1652442 and Ref.1-20
1шт.
P1652442
JACK BODY
TUBE ASSEMBLY - cylinder, Includes: Ref. 1, 2
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder, order tube assembly P1652442
1шт.
2
P1928675
BUSHING
- tube
1шт.
P8849413
PISTON ROD
ROD ASSEMBLY - piston, Includes: Ref. 4
1шт.
3
NSS
NOT SOLD SEPARAT
ROD - piston, order rod assembly P8849413
1шт.
4
P1928675
BUSHING
- piston rod
1шт.
5
P1432953
SCREW
- set, pin
1шт.
Part of seal kit P/N P5349643.
1шт.
6
P827733
PIN
- locking
1шт.
Part of seal kit P/N P5349643.
1шт.
7
P3829169
PISTON
- cylinder
1шт.
8
P2045236
BAND
RING - wear
2шт.
Part of seal kit P/N P5349643.
1шт.
9
P646096
SPECIAL MAT. SEAL
SEAL - piston
2шт.
Part of seal kit P/N P5349643.
1шт.
10
P6646085
BACK-UP RING
RING - backup, piston rod O-ring
2шт.
Part of seal kit P/N P5349643.
1шт.
11
P2030425
O-RING
- piston rod
1шт.
Part of seal kit P/N P5349643.
1шт.
12
P632963
SCREW
BOLT - hex socket, 20 mm x 70 mm, class 10.9
18шт.
13
P2229076
CYLINDER END CAP
GLAND - cylinder packing
1шт.
14
P246074
WIPER SEAL
WIPER - piston rod (Replaces wiper P1251304)
1шт.
Part of seal kit P/N P5349643.
1шт.
15
P1651274
SEAL
- packing, piston rod
1шт.
Part of seal kit P/N P5349643.
1шт.
16
P7846066
SEAL
RING - wear
2шт.
Part of seal kit P/N P5349643.
1шт.
17
P1751240
SEAL
O-RING - gland, inner
1шт.
Part of seal kit P/N P5349643.
1шт.
18
P2030402
O-RING
- gland, outer
1шт.
Part of seal kit P/N P5349643.
1шт.
19
P6646095
BACK-UP RING
RING - backup, gland O-ring
1шт.
Part of seal kit P/N P5349643.
1шт.
20
J45801
LUBE NIPPLE,M8 x 1.25
lubrication M8 x 1.25
2шт.
P5349643
SEAL PACKAGE
KIT - seal, Includes: Ref. 5, 6, 8 - 11 and 14 - 19, no longer available as a kit, order components
1шт.
Выбрано товаров: 36
