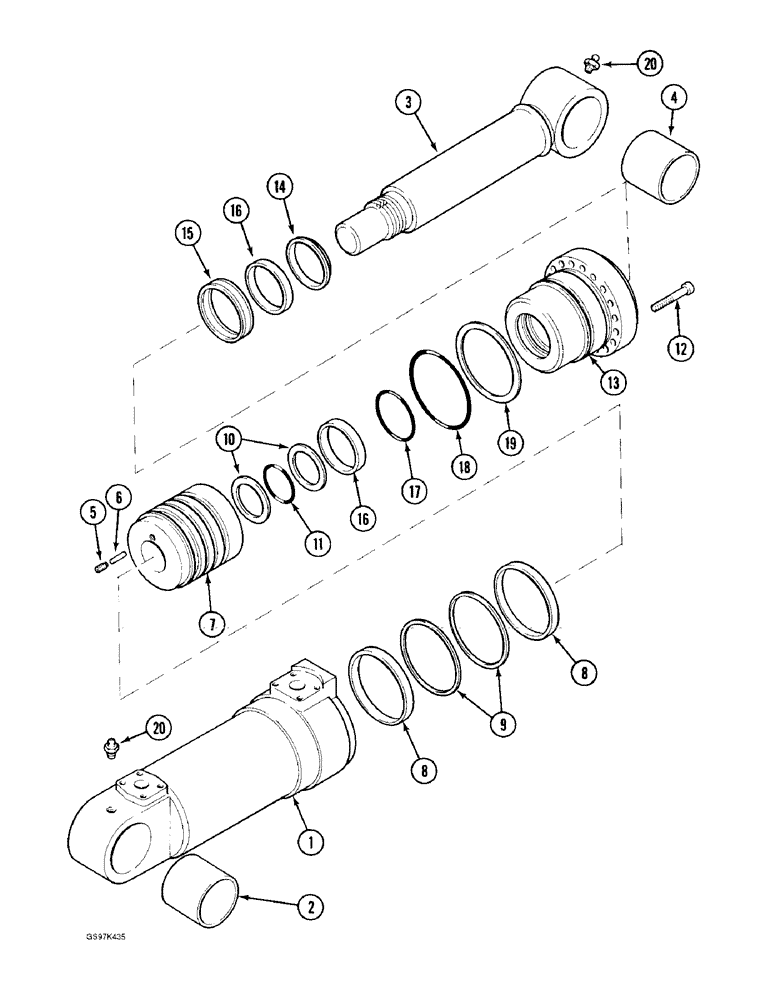

Запчасти Case 170C (8-172) - ARM CYLINDER, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 AND AFTER (08) - HYDRAULICS

P7746721

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, no longer available, order cylinder assembly P8346711, parts list Figure 8-174

1шт.

P1652442

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P1652442

1шт.

2

P1928675

BUSHING

- tube

1шт.

P8549403

PISTON ROD

ROD ASSEMBLY - piston, no longer available, order rod assembly P8849413, parts list Figure 8-174, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P8549403

1шт.

4

P1928675

BUSHING

- piston rod

1шт.

5

P1432953

SCREW

- set, pin

1шт.

Part of seal kit P/N P5349643.

1шт.

6

P827733

PIN

- locking

1шт.

Part of seal kit P/N P5349643.

1шт.

7

P3829169

PISTON

- cylinder

1шт.

8

P2045236

BAND

RING - wear

2шт.

Part of seal kit P/N P5349643.

1шт.

9

P646096

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of seal kit P/N P5349643.

1шт.

10

P6646085

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

Part of seal kit P/N P5349643.

1шт.

11

P2030425

O-RING

- piston rod

1шт.

Part of seal kit P/N P5349643.

1шт.

12

P632963

SCREW

BOLT - hex socket, 20 mm x 70 mm, class 10.9

18шт.

13

P2229076

CYLINDER END CAP

GLAND - cylinder packing

1шт.

14

P246074

WIPER SEAL

WIPER - piston rod (Replaces wiper P1251304)

1шт.

Part of seal kit P/N P5349643.

1шт.

15

P1651274

SEAL

- packing, piston rod

1шт.

Part of seal kit P/N P5349643.

1шт.

16

P7846066

SEAL

RING - wear

2шт.

Part of seal kit P/N P5349643.

1шт.

17

P1751240

SEAL

O-RING - gland, inner

1шт.

Part of seal kit P/N P5349643.

1шт.

18

P2030402

O-RING

- gland, outer

1шт.

Part of seal kit P/N P5349643.

1шт.

19

P6646095

BACK-UP RING

RING - backup, gland O-ring

1шт.

Part of seal kit P/N P5349643.

1шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

2шт.

P5349643

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 6, 8 - 11 and 14 - 19, no longer available as a kit, order components

1шт.
