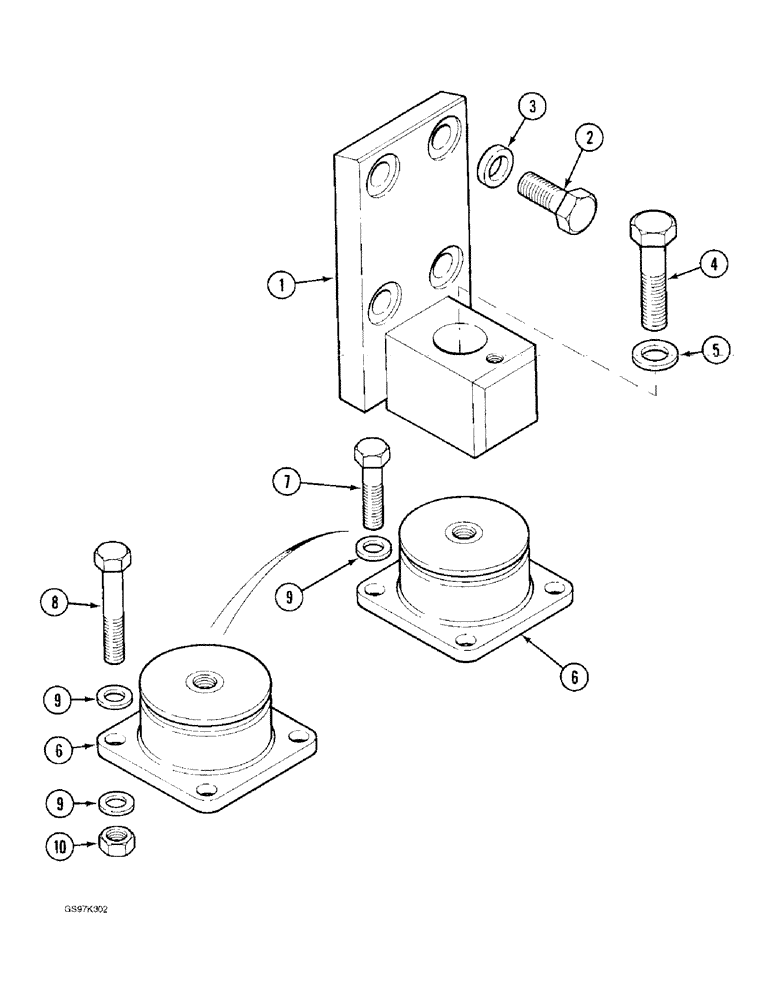

Запчасти Case 170C (2-6) - ENGINE MOUNTING PARTS (02) - ENGINE

1

P2646109

FOOT

MOUNT - engine, rigid

4шт.

2

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd

16шт.

3

P4328746

WASHER

SPACER - bolt, 11 mm thick

16шт.

4

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

- hex, 12 - 1.75 x 70 mm (Replaces bolt P33843)

4шт.

5

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

6

P741473

SUPPORT

MOUNT - engine, flexible

4шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, If used Hex, M10 x 30, 8.8

16шт.

8

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

If used (Replaces bolt P833802) Hex, M10 x 50, 8.8

16шт.

9

P3528795

WASHER

SPACER - bolt, 7 mm thick, sixteen used with bolt 614-10030, thirty-two used with bolt 814-10050

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Used with bolt 814-10050 only (Replaces nut P34598) M10 x 1.5, Cl 8

16шт.
