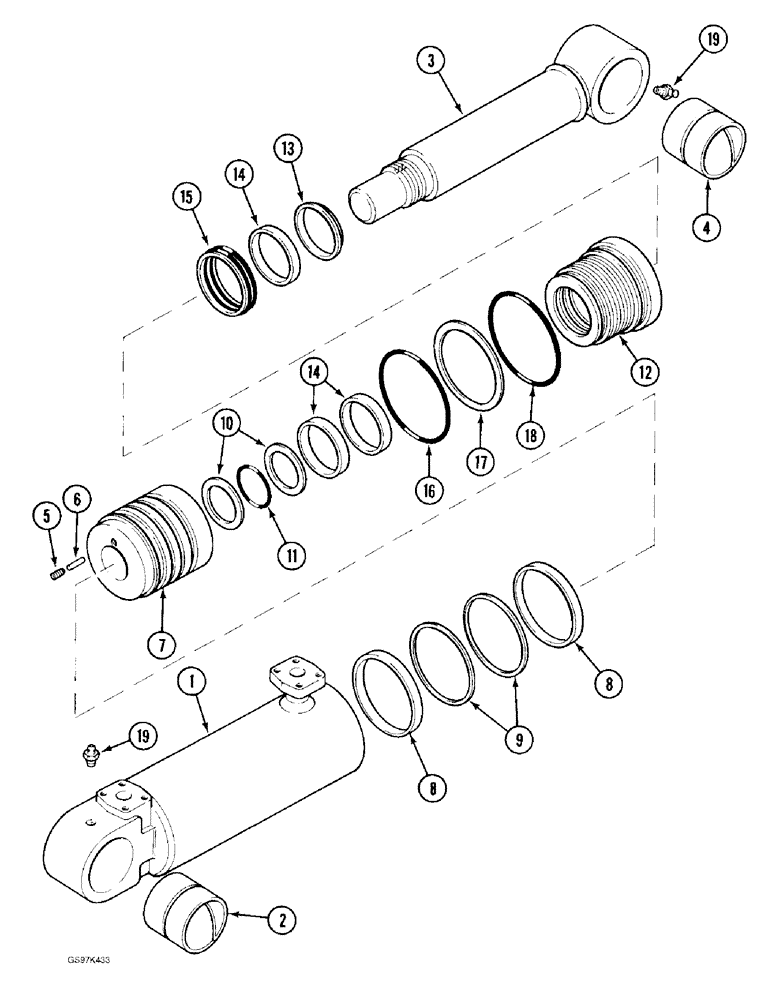

Запчасти Case 170C (8-168) - BOOM AND TOOL CYLINDER, P.I.N. 74501 THROUGH 74662, P.I.N. 02301 AND AFTER (08) - HYDRAULICS

P7746724

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom and tool, no longer available, order cylinder assembly P8346706, parts list Figure 8-170

3шт.

P1652439

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P1652439

1шт.

2

P2328613

BUSHING

- tube (Replaces bushing P1928674)

1шт.

P8449498

PISTON ROD

ROD ASSEMBLY - piston

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P8449498

1шт.

4

P2328613

BUSHING

- piston rod (Replaces bushing P1928674)

1шт.

5

P1432952

SCREW

- set, pin

1шт.

Part of seal kit P/N P4949661.

1шт.

6

P827736

PIN

- locking

1шт.

Part of seal kit P/N P4949661.

1шт.

7

P3829101

PISTON

- cylinder

1шт.

8

P2045226

BAND

RING - wear

2шт.

Part of seal kit P/N P4949661.

1шт.

9

P1451295

SEAL

- piston

2шт.

Part of seal kit P/N P4949661.

1шт.

10

P4646017

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

Part of seal kit P/N P4949661.

1шт.

11

P30346

O-RING

- piston rod

1шт.

Part of seal kit P/N P4949661.

1шт.

12

P3729199

CYLINDER END CAP

GLAND - cylinder

1шт.

13

P146036

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N P4949661.

1шт.

14

P2746048

SEGMENT

RING - wear

3шт.

Part of seal kit P/N P4949661.

1шт.

15

P1351217

SEAL

- U-cup, piston rod

1шт.

Part of seal kit P/N P4949661.

1шт.

16

P1430496

O-RING

- gland, small

1шт.

Part of seal kit P/N P4949661.

1шт.

17

P7346017

LEDGER PLATE

RING - backup, gland O-ring

1шт.

Part of seal kit P/N P4949661.

1шт.

18

P1830404

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

- gland, large

1шт.

Part of seal kit P/N P4949661.

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

2шт.

P4949661

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 6, 8 - 11 and 13 - 18

1шт.
