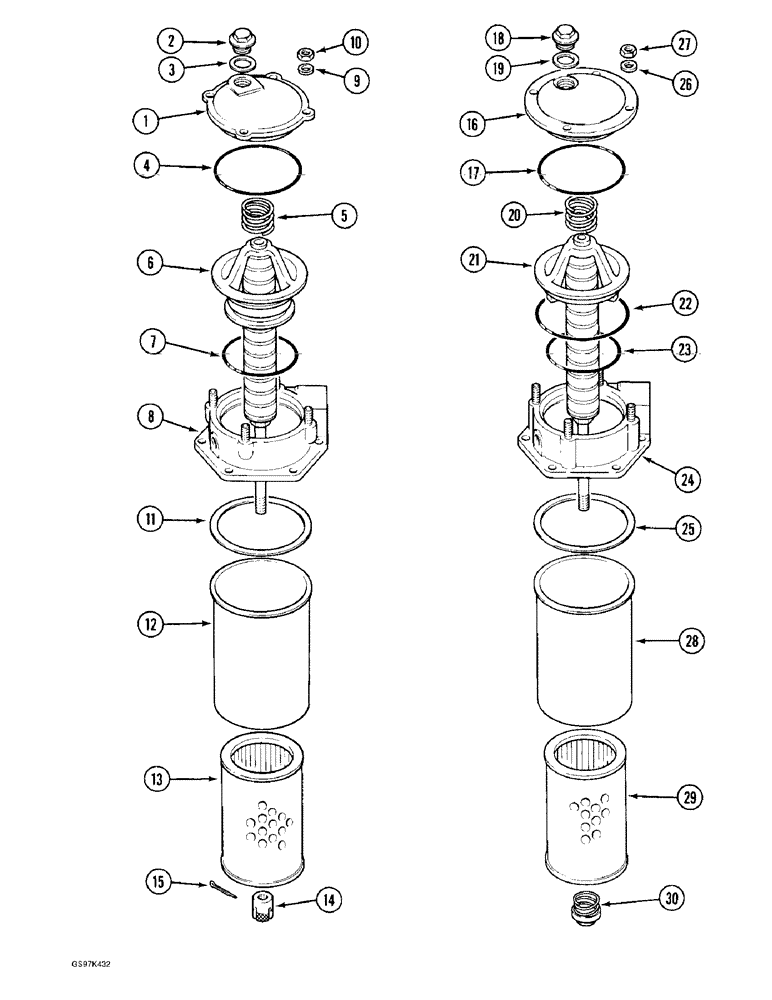

Запчасти Case 170C (8-166) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

P1050539

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, check filter head identification before ordering components, Includes: Ref. 1-30

3шт.

1

P1050583

COVER

HEAD - filter

1шт.

2

P1337409

PLUG

- filter head, 45 mm (1.77 inch) diameter, also order seal J906696, item 19 (Replaces plug P1337465)

1шт.

3

P545233

SEAL

- plug

1шт.

4

P30364

O-RING

- head

1шт.

5

P38257

SPRING

- filter

1шт.

6

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter, order filter assembly P1050539

1шт.

7

P1430496

O-RING

- magnetic core

1шт.

8

P1350513

BODY

BASE - filter

1шт.

9

P35047

WASHER

- head

4шт.

10

P34177

DEUTZ PART

NUT - head retaining, order from Deutz

4шт.

11

P945264

WASHER, SEALING

SEAL - element

1шт.

12

P250535

FILTER COVER

HOUSING - element, filter

1шт.

13

P150580

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

14

P834558

NUT

- magnetic core retaining

1шт.

15

P35513

SPLIT PIN

PIN - lock, magnetic core

1шт.

P1050539

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, check filter head identification before ordering components

3шт.

P1350545

COVER

HEAD ASSEMBLY - filter, Includes: Ref. 16-19

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD - filter, order head assembly P1350545

1шт.

17

P30363

O-RING

- filter head

1шт.

18

P1737431

PLUG

- filter head, 52 mm (2.05 inch) diameter

1шт.

18

P1337409

PLUG

- filter head, 45 mm (1.77 inch) diameter

1шт.

19

P146079

SEAL

- plug, used with 52 mm (2.05 inch) diameter plug

1шт.

19

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

- plug, used with 45 mm (1.77 inch) diameter plug (Replaces seal P130469)

1шт.

20

P738116

COMPRESSION SPRING

SPRING - filter head

1шт.

21

NSS

NOT SOLD SEPARAT

CORE - magnetic, filter, order filter assembly P1050539

1шт.

22

P130474

O-RING

- magnetic core, large

1шт.

23

P1630425

O-RING

- magnetic core, small

1шт.

P1350546

BODY

BASE ASSEMBLY - filter, Includes: Ref. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

BASE - filter, order base assembly P1350546

1шт.

25

P945264

WASHER, SEALING

SEAL -, Serial Range: base-housing

1шт.

26

P35047

WASHER

- filter head

4шт.

27

P34177

DEUTZ PART

NUT - filter head, order from Deutz

4шт.

28

P250535

FILTER COVER

HOUSING - filter element

1шт.

29

P150580

FILTER, ENGINE OIL

ELEMENT - filter

1шт.

30

P1950529

SET OF PARTS

NUT - element to magnetic core, includes spring

1шт.
