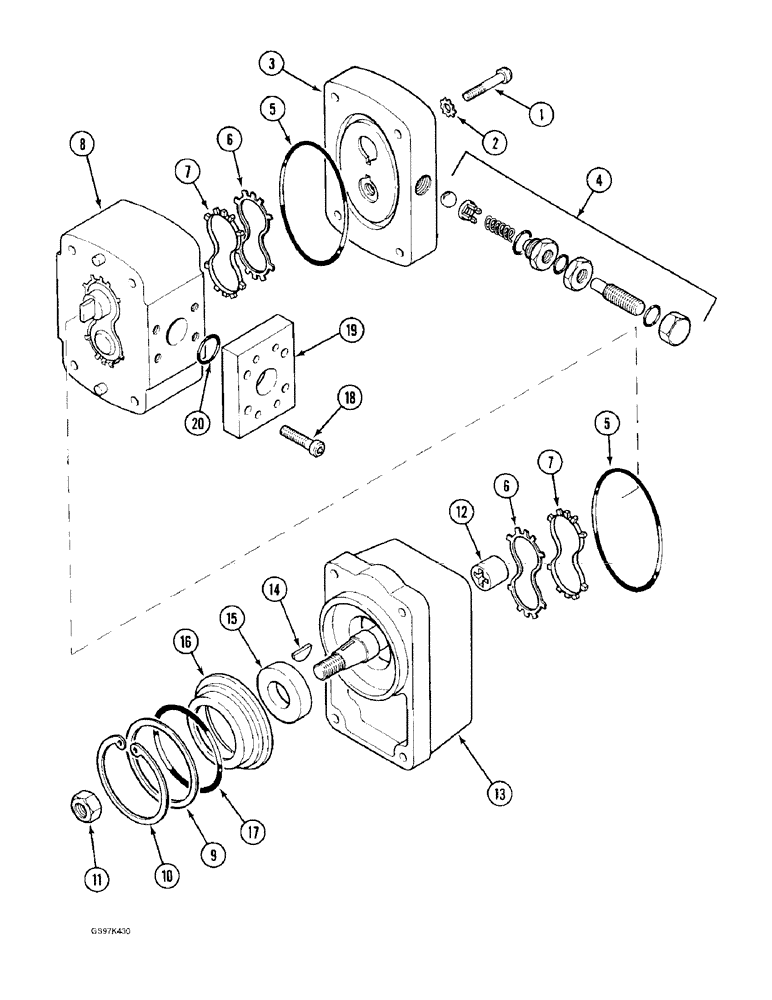

Запчасти Case 170C (8-162) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 60200000 AND AFTER (08) - HYDRAULICS

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - oil cooler fan, Includes: Ref. 1-20

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - port end cover, order motor assembly P2343732

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, order motor assembly P2343732

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - rear, order motor assembly P2343732

1шт.

4

P5949655

KIT

VALVE ASSEMBLY - relief, cartridge-type, contains no individual serviceable components (Replaces valve assembly P5449608)

1шт.

P5449671

SEAL PACKAGE

KIT - seal repair, Includes: Ref. 5-7

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - gear housing, order kit P5449671

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer, gear housing, order kit P5449671

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - inner, gear housing, order kit P5449671

4шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - includes gear set, order motor assembly P2343732

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, O-ring, order motor assembly P2343732

1шт.

10

P936324

RING, SNAP

RING - snap, shaft

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - locking, order motor assembly P2343732

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING - shaft, order motor assembly P2343732

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - includes drive shaft, order motor assembly P2343732

1шт.

14

P236199

BUCKET TOOTH KEY

KEY - shaft

1шт.

15

P7146019

BUSHING

SEAL - shaft

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - seal, order motor assembly P2343732

1шт.

17

P2230448

O-RING

- retainer

1шт.

P3837782

SHIN

BLOCK ASSEMBLY - oil cooler motor

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - block mounting, order block assembly P3837782

4шт.

19

NSS

NOT SOLD SEPARAT

BLOCK - oil cooler motor, order block assembly P3837782

1шт.

20

P7546065

SEAL

O-RING - block

1шт.
