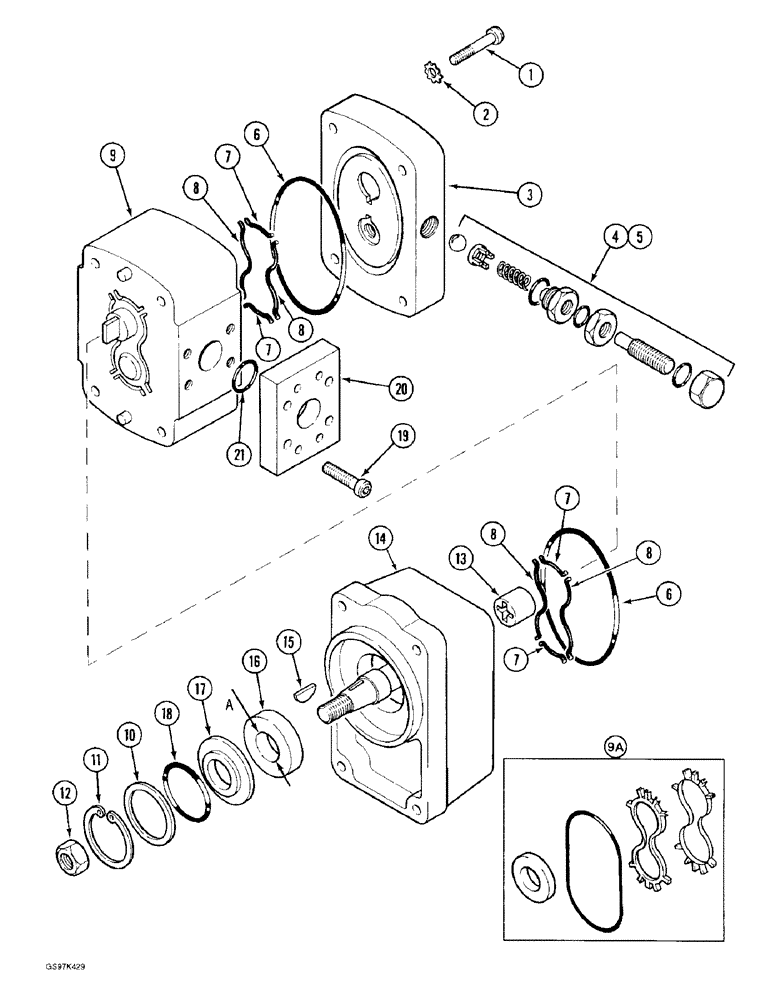

Запчасти Case 170C (8-160) - OIL COOLER FAN MOTOR, MOTOR SERIAL NUMBER 40700000 THROUGH 60199999 (08) - HYDRAULICS

P2343732

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - oil cooler fan, Includes: Ref. 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - port end cover, order motor assembly P2343732

4шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, order motor assembly P2343732

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - rear, order motor assembly P2343732

1шт.

4

REF

INSTRUCTION

VALVE - relief, for service order cartridge relief valve P5449608, item 5

1шт.

5

P5949655

KIT

VALVE - relief, cartridge-type, contains no individual serviceable components (Replaces valve P5449608)

1шт.

P3749672

KIT

- seal repair, Includes: Ref. 6-8

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - gear housing, order kit P3749672

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - small, gear housing, order kit P3749672

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - large, gear housing, order kit P3749672

4шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - includes gear set, order motor assembly P2343732

1шт.

9a

P5949630

SEAL PACKAGE

KIT - seal repair

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, O-ring, order motor assembly P2343732

1шт.

11

P936324

RING, SNAP

RING - snap, shaft

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - locking, order motor assembly P2343732

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLING - shaft, order motor assembly P2343732

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - includes drive shaft, order motor assembly P2343732

1шт.

15

P236199

BUCKET TOOTH KEY

KEY - shaft

1шт.

16

P8046005

SEAL

- shaft, “A” dimension is 25 mm (1 inch)

1шт.

16

P7146019

BUSHING

SEAL - shaft, “A” dimension is 20 mm (25/32 inch)

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - seal, order motor assembly P2343732

1шт.

18

P2230448

O-RING

- retainer

1шт.

P3837782

SHIN

BLOCK ASSEMBLY - oil cooler motor

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - block mounting, order block assembly P3837782

4шт.

20

NSS

NOT SOLD SEPARAT

BLOCK - oil cooler motor, order block assembly P3837782

1шт.

21

P7546065

SEAL

O-RING - block

1шт.
