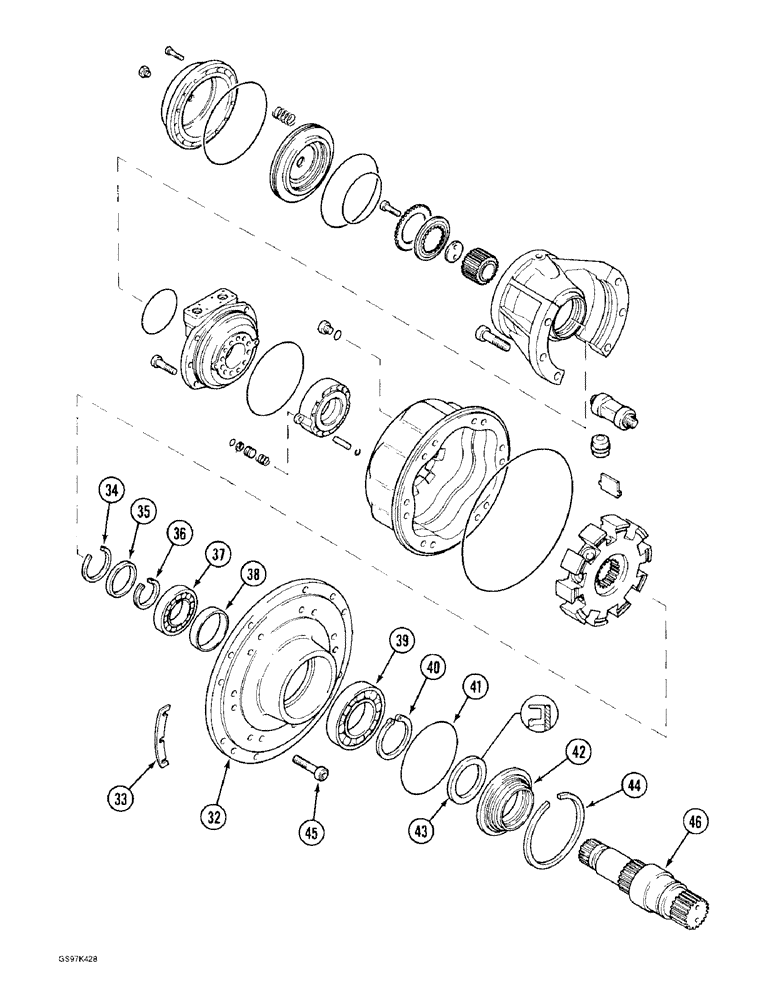

Запчасти Case 170C (8-158) - SWING HYDRAULIC MOTOR (08) - HYDRAULICS

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, hydraulic, continued, Includes: P6746288

2шт.

P6746288

CYLINDER END CAP

BEARING ASSEMBLY - swing motor, Includes: Ref. 32-46

1шт.

32

P8930139

CYLINDER END CAP

HOUSING - bearing support

1шт.

33

P5046249

SHIM

- set, housing

1шт.

34

P1936912

SEGMENT

RING - retaining, bearing

1шт.

35

P1245516

RING

SPACER - bearing

1шт.

36

P2628969

RING

- retainer halves

1шт.

37

P2339825

BEARING

- roller, shaft

1шт.

38

P1729010

SPACER

- bearing

1шт.

39

P2339879

BEARING

- roller, shaft

1шт.

40

P836316

RING, SNAP

RING - snap, bearing

1шт.

41

P1430427

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

- bearing support housing

1шт.

Part of seal kit P/N P4349628.

1шт.

P6046256

CAP

SEAL ASSEMBLY - bearing support housing, Includes :Ref. 42, 43

1шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - seal, order seal assembly P6046256

1шт.

43

P1249674

ASSEMBLY

SEAL - shaft, no longer available, order (1) P1045338 washer, (1) P3446072 sealing ring, and (1) P545299 washer

1шт.

Part of seal kit P/N P4349628.

1шт.

44

P1936935

SEGMENT

RING - retaining, seal assembly

1шт.

45

P1332915

SCREW

BOLT - bearing support housing

12шт.

46

P930024

SHAFT

- swing motor

1шт.

P4349628

SEAL PACKAGE

KIT - seal, Includes: Ref. 41 and 43

1шт.
