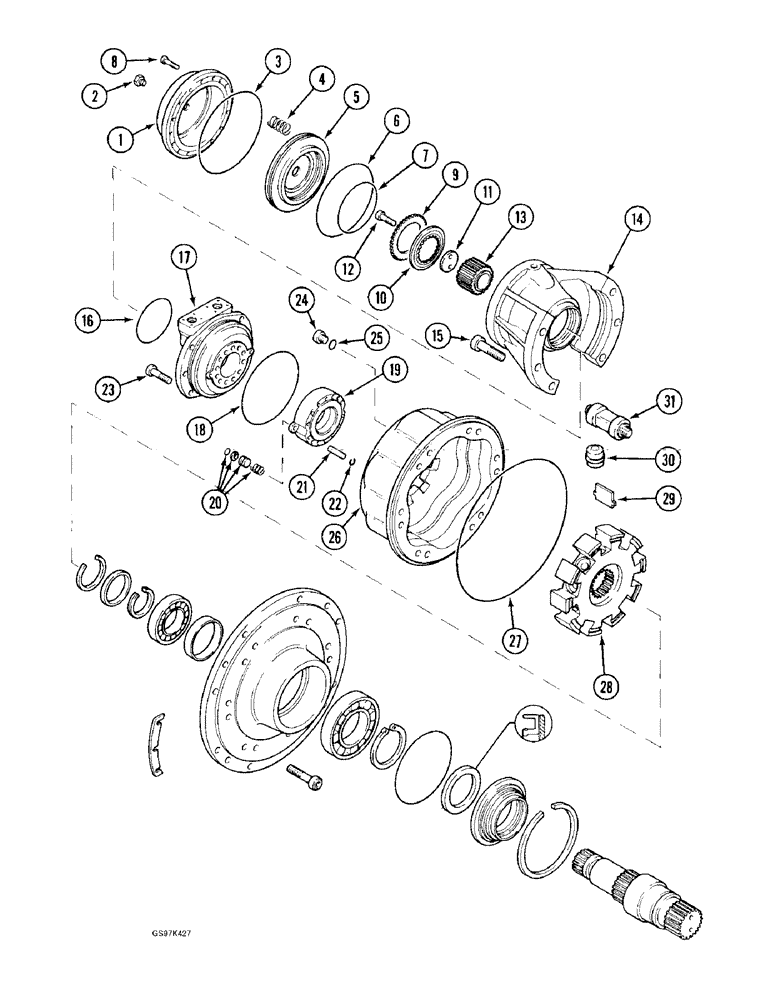

Запчасти Case 170C (8-156) - SWING HYDRAULIC MOTOR (08) - HYDRAULICS

P3143724

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing hydraulic, Includes: P843024 and Ref. 1-15

2шт.

P843024

BRAKE

ASSEMBLY - swing motor, Includes: Ref. 1-15

1шт.

1

P5143163

FILTER BOWL

COVER - brake

1шт.

2

P1337445

PLUG

- air removal

1шт.

3

P2130418

O-RING

- cover

1шт.

Part of seal kit P/N P2649692.

1шт.

4

P3637790

KIT

- spring, brake piston, set of 19

1шт.

5

P5143125

PISTON

- brake

1шт.

6

P30373

O-RING

- piston, large

1шт.

Part of seal kit P/N P2649692.

1шт.

7

P30366

O-RING

- piston, small

1шт.

Part of seal kit P/N P2649692.

1шт.

8

P32943

SCREW

BOLT - cover

16шт.

9

P2639301

DISC

- steel

9шт.

10

P2639358

DISC

- friction

11шт.

11

P1745334

WASHER

PLATE - retainer

1шт.

12

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

Retainer Plate (Replaces bolt P833804) Hex, M6 x 10, 8.8, Full Thd

2шт.

13

P2639313

TRANSMISSION SLEEVE

COUPLING - shaft

1шт.

14

P5143164

BODY

HOUSING - brake

1шт.

15

P1933027

SCREW

BOLT - housing

4шт.

P5046250

VALVE, CONTROL

DISTRIBUTOR ASSEMBLY - motor, Includes: Ref. 16-25

1шт.

16

P230404

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- brake housing to distributor, small

1шт.

Part of seal kit P/N P4349628.

1шт.

17

P5046251

BLOCK ASSY.

HOUSING - distributor

1шт.

18

P1830419

O-RING

- distributor housing, large

1шт.

Part of seal kit P/N P4349628.

1шт.

19

P7130117

LARGE PLATE

BEARING - roller, shaft

1шт.

20

P3637789

KIT

SPRING - set of 12

1шт.

21

P836004

SPLIT PIN/SAFETY PIN

PIN - dowel, bearing

2шт.

22

P1936914

SEGMENT

RING - dowel pin

2шт.

23

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, Distributor housing (Replaces bolt P33840)

6шт.

24

P1037454

PLUG

- motor housing

1шт.

25

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Motor housing plug (Replaces O-ring R30989) -118, 90 Duro, .862" ID x .103" Thk

1шт.

Part of seal kit P/N P4349628.

1шт.

P5646210

HOUSING

ASSEMBLY - motor, Includes:Ref. 26-31

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - motor, order housing assembly P5646210

1шт.

27

P7046025

SEAL

O-RING - motor housing

1шт.

Part of seal kit P/N P4349628.

1шт.

P6646202

CYLINDER BLOCK

ROTOR AND ROLLER ASSEMBLY - motor

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - swing motor, order assembly P6646202

1шт.

29

P5337798

KIT

PLATE - wear, rotor, set of 20

1шт.

30

P7146252

PISTON

- motor, class 0, 36.0 mm, stamped on head

10шт.

he class number 1 or 0 is stamped in the head of the piston. If it is 0, it may not be stamped there. The main difference is that class 1 is 36.1 mm diameter, while class 0 is 36.0 mm diameter.

1шт.

30

P7146253

PISTON

- motor, class 1, 36.1 mm, stamped on head

10шт.

he class number 1 or 0 is stamped in the head of the piston. If it is 0, it may not be stamped there. The main difference is that class 1 is 36.1 mm diameter, while class 0 is 36.0 mm diameter.

1шт.

31

P6446262

LARGE PIN

SHAFT - roller, motor, class 0

10шт.

See number on rotor to identify proper class. The class number 1 or 0 is stamped in the head of the piston. If it is 0, it may not be stamped there.The main difference is that class 1 is 36.1 mm diameter, while class 0 is 36.0 mm diameter.

1шт.

31

P8046227

LARGE PIN

SHAFT - roller, motor, class 5 (Replaces shaft P6446263)

10шт.

See number on rotor to identify proper class. The class number 1 or 0 is stamped in the head of the piston. If it is 0, it may not be stamped there.The main difference is that class 1 is 36.1 mm diameter, while class 0 is 36.0 mm diameter.

1шт.

P2649692

KIT

- seal, Includes: Ref. 3, 6 and 7

1шт.

P4349628

SEAL PACKAGE

KIT - seal, Includes: Ref. 16, 18, 25 and 27, continued on next figure

1шт.
