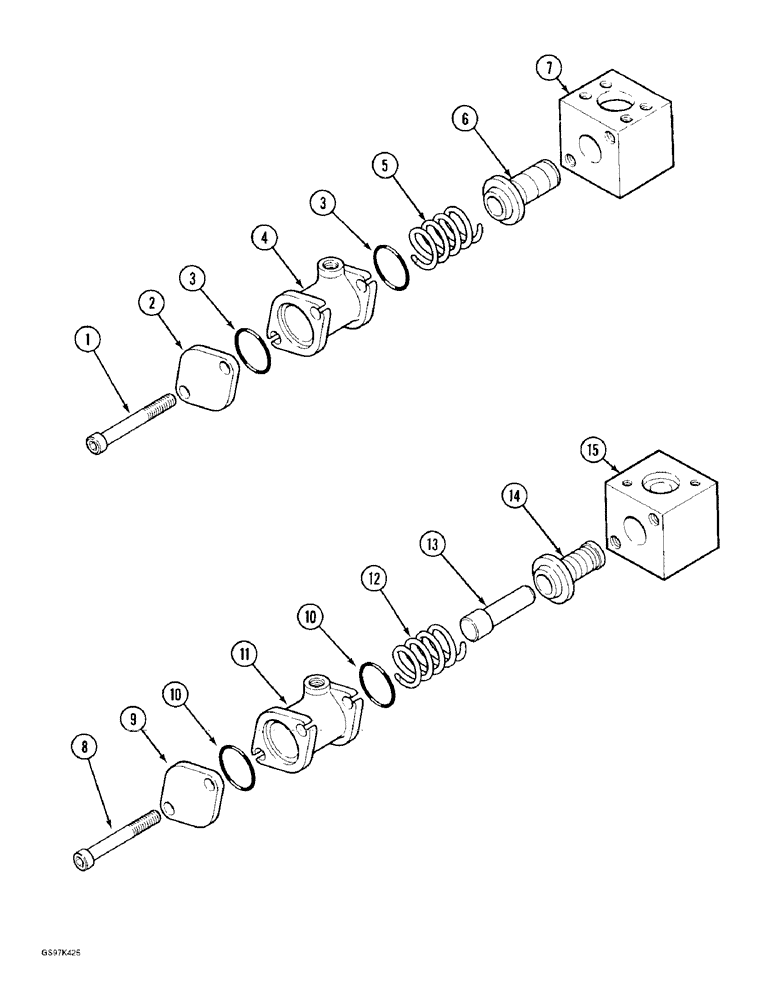

Запчасти Case 170C (8-152) - PRESSURE REGULATING VALVES, 13 & 18 BAR, 13 BAR PRESSR REGULATING VLV, 18 BAR PRESSR REGULATIG VLV (08) - HYDRAULICS

P3743379

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 185 psi (1275 kPa, 13 bar), Includes: Ref. 1-7

2шт.

1

P1232979

SCREW

BOLT - hex socket, 10 mm x 80 mm, class 10.9

2шт.

2

P4524114

LARGE PLATE

PLATE - end, no longer available

1шт.

3

P130412

O-RING

- cover

2шт.

4

P1929055

SPACER

COVER - valve

1шт.

5

P1038167

COMPRESSION SPRING

SPRING - regulator valve

1шт.

6

P2327865

VALVE POPPET

PLUNGER - valve

1шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve, order valve assembly P3743379

1шт.

P3743382

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 256 psi, (1765 kPa, 18bar), Includes: 8-15

1шт.

8

P1232979

SCREW

BOLT - hex socket, 10 mm x 80 mm, class 10.9

2шт.

9

P4524114

LARGE PLATE

PLATE - end, no longer available

1шт.

10

P130412

O-RING

- cover

2шт.

11

P1929055

SPACER

COVER - valve

1шт.

12

P1038168

COMPRESSION SPRING

SPRING - regulating valve

1шт.

13

P4727876

PISTON

PLUNGER - valve

1шт.

14

P4727875

VALVE POPPET

SEAT - plunger

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - regulating valve, order valve assembly P3743382

1шт.
