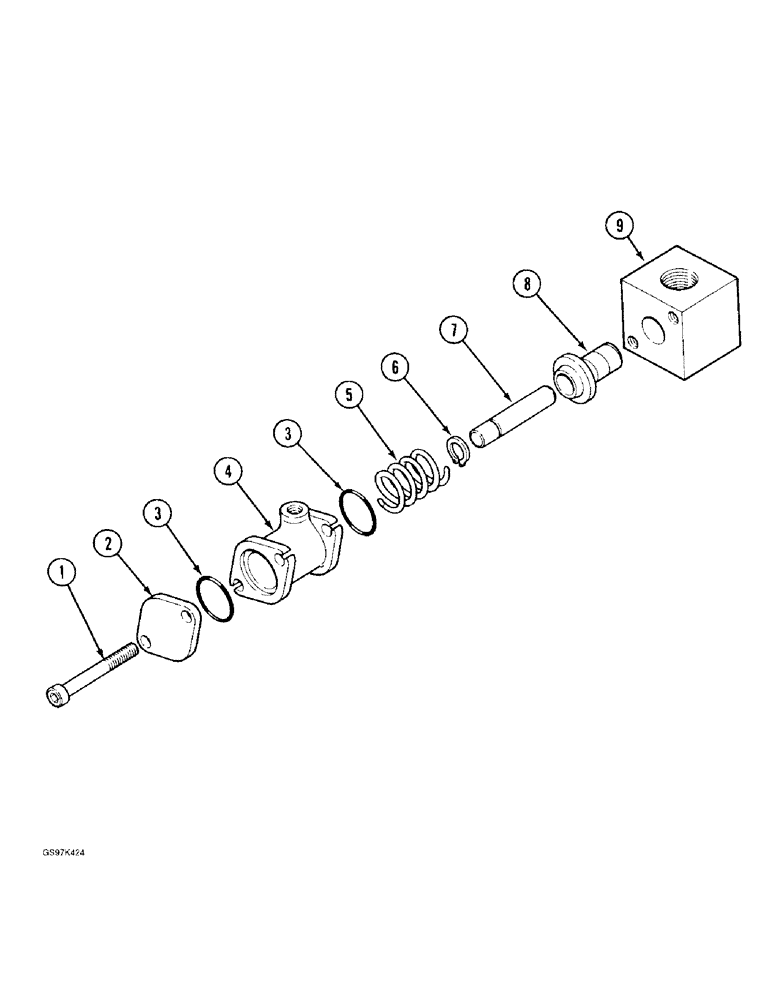

Запчасти Case 170C (8-150) - PRESSURE REGULATING VALVE, 35 BAR (08) - HYDRAULICS

P3743380

BLOCK ASSY.

VALVE ASSEMBLY - pressure regulating, 498 psi (3433 kPa, 35 bar), Includes: Ref. 1-9

1шт.

1

P1232979

SCREW

BOLT - hex socket, 10 mm x 80 mm, class 10.9

2шт.

2

P4524114

LARGE PLATE

PLATE - end, no longer available

1шт.

3

P130412

O-RING

- cover

2шт.

4

P1929055

SPACER

COVER - valve

1шт.

5

P1038168

COMPRESSION SPRING

SPRING - regulator valve

1шт.

6

P36373

RING, SNAP

RING - snap, spring guide

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - spring, order valve assembly P3743380

1шт.

8

P4727815

VALVE POPPET

PLUNGER - valve

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - pressure regulating valve, order valve assembly P3743380

1шт.
