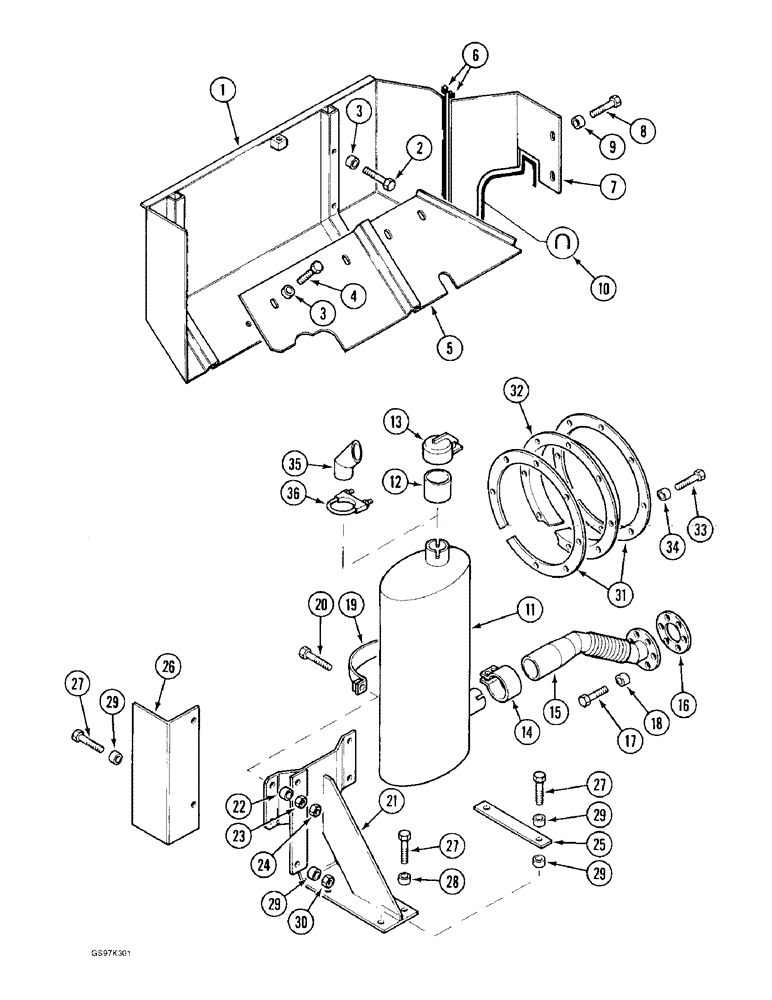

Запчасти Case 170C (2-4) - EXHAUST SYSTEM AND ENGINE AIR COOLING ADAPTING PARTS (02) - ENGINE

1

P2254860

DEFLECTOR

SHIELD - heat, muffler, fastens to fuel tank

1шт.

2

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

4шт.

3

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd (Replaces bolt P113839) Hex, M10 x 30, 8.8

4шт.

5

P3126374

HOOD

SHIELD - heat, extension, muffler

1шт.

6

REF

INSTRUCTION

TRIM - edge, 500 mm (19-5/8 inch) long, cut from bulk trim P303112 below

1шт.

7

P2826199

HOOD

SHIELD - heat, extension, Serial Range: fastens-engine

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

1шт.

9

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

10

REF

INSTRUCTION

TRIM - edge, 700 mm (27-9/16 inch) long, cut from bulk trim P303112 below

1шт.

11

P3841409

MUFFLER

- engine

1шт.

12

NSS

NOT SOLD SEPARAT

PIPE - exhaust, engine, order P3950119 and clamp P3836907, item 36

1шт.

13

P3950194

TUBE,101.6 mm OD x 80, 90 mm L

CAP - exhaust pipe, order P3950119 and clamp P3836907, item 36 (Replaces cap P2340474)

1шт.

14

P3036952

CLAMP

- muffler to inlet tube, includes hardware

1шт.

15

P3450187

PIPE, EXHAUST SYSTEM

TUBE - exhaust, from, Serial Range: engine-muffler

1шт.

16

P8046078

GASKET

- muffler tube to engine (Replaces gaskets J907836 and J931351) (replaced P804607 )

1шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

6шт.

18

P4328796

WASHER

SPACER - bolt, 7 mm thick

6шт.

19

P6528215

CLAMP

-, Serial Range: muffler-mount

2шт.

20

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

4шт.

21

P4327130

SUPPORT

MOUNT - muffler (Replaces mount P4127143)

1шт.

22

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

23

825-1410

NUT,M10, Cl 8

(Replaces nut P34166) M10, Cl 8

4шт.

24

P34563

NUT

- hex, self-locking, 10 mm

4шт.

25

P3122858

PLATE

BRACKET - muffler mount support

1шт.

26

P4825685

SUPPORT

SHIELD - heat, exhaust pipe

1шт.

27

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm (Replaces bolt P933818)

6шт.

28

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

29

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

2шт.

31

P5024283

SLEWING RING

RING - flange mounting

2шт.

32

P8846028

GASKET

FLANGE - engine air cooling

1шт.

33

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads (Replaces bolt P33809) Hex, M6 x 20, 8.8

8шт.

34

P3528799

WASHER

SPACER - bolt, 4 mm thick

8шт.

35

P3950194

TUBE,101.6 mm OD x 80, 90 mm L

PIPE - muffler extension

1шт.

36

P3836907

CLAMP

- muffler to pipe extension

1шт.

P303112

SEAL

TRIM - bulk, sold by the meter

1шт.
