Артикул
Название
Примечание
Количество
P4043318
SHIN

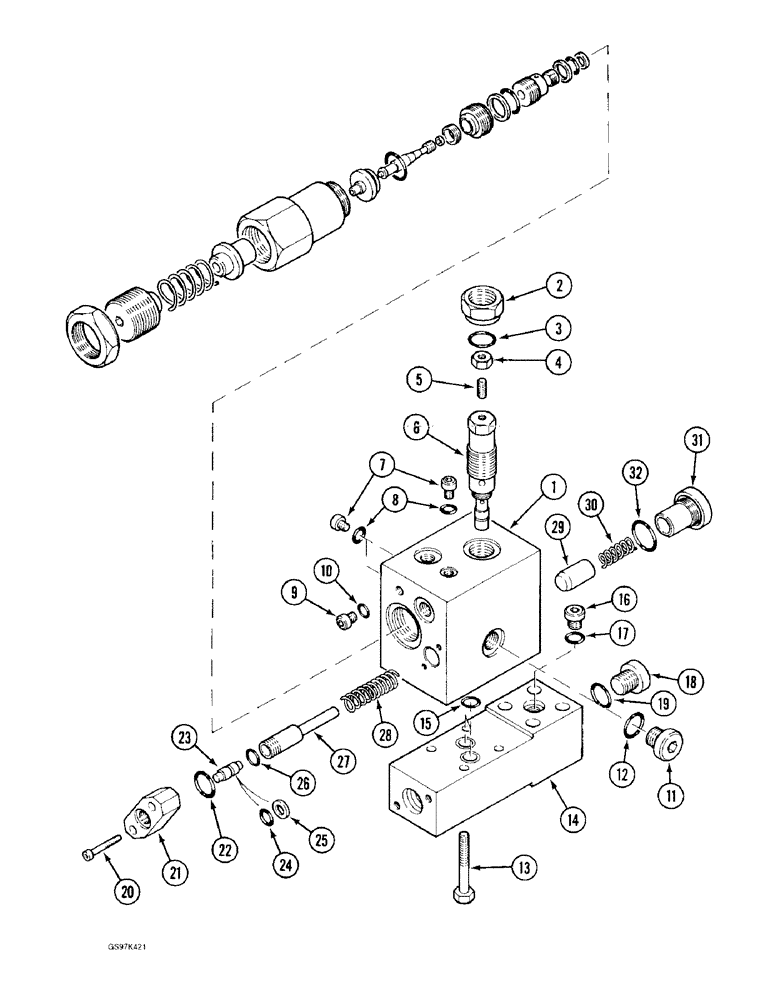

VALVE ASSEMBLY - craning, arm cylinder, Includes: Ref. 1-12
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - craning valve, order valve assembly P4043318
1шт.
P4043310
CARTRIDGE
VALVE ASSEMBLY - relief, adjustable (Replaces valve assembly P2543347), Includes: Ref. 2-12
1шт.
2
P1734524
NUT
RING - locking, relief valve
1шт.
3
P30323
SEAL
O-RING - locking ring
1шт.
Part of seal repair kit P/N P4349653.
1шт.
4
P34211
NUT
- hex, self-locking, 8 mm
1шт.
5
P32825
SCREW
- adjusting, relief valve
1шт.
6
NSS
NOT SOLD SEPARAT
CARTRIDGE - relief valve, order valve assembly P4043310
1шт.
7
P2337468
PLUG
ASSEMBLY - valve body
3шт.
8
P2230441
SEAL
O-RING - plug
1шт.
9
P1437455
PLUG
ASSEMBLY - valve body
1шт.
10
P7046042
SEAL
O-RING - plug
1шт.
11
P1337445
PLUG
ASSEMBLY - valve body
1шт.
12
P945293
WASHER, SEALING
O-RING - plug
1шт.
13
BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8
- hex, 10 - 1.5 x 70 mm (Replaces bolt P933835)
4шт.
14
P5137740
SHIN
BLOCK - mounting
1шт.
15
238-6118
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
Mounting block (Replaces O-ring R30989) -118, 90 Duro, .862" ID x .103" Thk
2шт.
16
P1437455
PLUG
ASSEMBLY - mounting block, Includes: Ref. 17
1шт.
17
P7046042
SEAL
O-RING - plug
1шт.
18
P1337445
PLUG
ASSEMBLY - mounting block, Includes: Ref. 19
1шт.
19
P945293
WASHER, SEALING
O-RING - plug
1шт.
20
864-6030
HEX SOC SCREW,M6 x 30mm, Cl 8.8
BOLT - hex socket, 6 - 1.0 x 30 mm (Replaces bolt P32913)
2шт.
21
P2823418
SHIN
BLOCK - craning valve, no longer available
1шт.
22
238-6118
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
Block (Replaces O-ring R30989) -118, 90 Duro, .862" ID x .103" Thk
1шт.
Part of seal repair kit P/N P4349653.
1шт.
P8346239
VALVE POPPET
POPPET ASSEMBLY - craning valve, Includes: Ref. 23-25
1шт.
23
NSS
NOT SOLD SEPARAT
POPPET - craning valve, order poppet assembly P8346239
1шт.
24
P1730422
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- poppet
1шт.
Part of seal repair kit P/N P4349653.
1шт.
25
P1145230
BACK-UP RING
RING - backup, poppet O-ring
1шт.
Part of seal repair kit P/N P4349653.
1шт.
26
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
Spool (Replaces O-ring D48359) -113, 90 Duro, .549" ID x .103" Thk
1шт.
Part of seal repair kit P/N P4349653.
1шт.
27
P5627833
PISTON
SPOOL - craning valve, no longer available
1шт.
28
P2138138
COMPRESSION SPRING
SPRING - spool, craning valve
1шт.
29
P1729837
VALVE POPPET
POPPET - check valve (Replaces poppet P1429869)
1шт.
30
P1838130
COMPRESSION SPRING
SPRING - check valve poppet
1шт.
31
P1637498
PLUG
- check valve
1шт.
32
P130486
O-RING
- plug
1шт.
Part of seal repair kit P/N P4349653.
1шт.
P4349653
SEAL PACKAGE
KIT - seal repair, Includes: Ref. 3, 22, 24 - 26 and 32, continued on next figure
1шт.
Выбрано товаров: 42
